FMS-2000C
LIT
-12013531
34

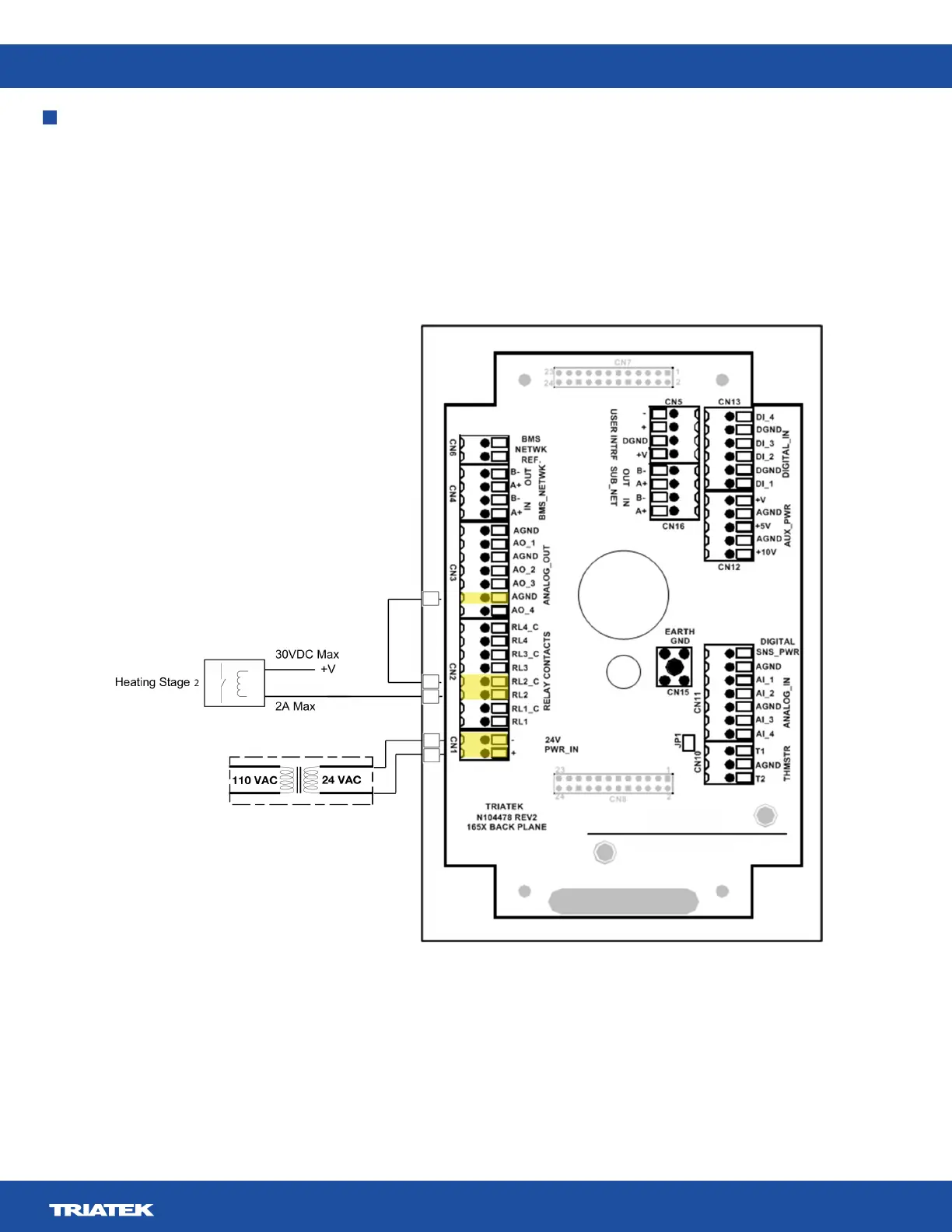

Wiring the relay output 2
Note:
The above example associates heating state 2 with contacts
RL2
and
RL2_C
for illustrative purposes only
.
Any of the four relays
and the corresponding relay C can be used.
Figure 28: Relay output 2 wiring diagram
Step Down
Isolation T
ransformer
33
35
Table of Contents
Table of Contents
6
Introduction
7
Location Considerations
8
Mounting the FMS-2000C Display for a Retrofit Application
8
Mounting the FMS-2000C Controller Display for a New Application
11
Mounting the Remote Sensor
13
Wiring Diagrams Guide
15
Wiring the FMS-2000C Controller Display to the FMS-2000C Controller
17
Retrofit of FMS-1655 Controller Display to FMS-2000C Controller Display
18
Wiring the Analog Output to a Pneumatic Damper Actuator
19
Wiring the Analog Output to a Variable Speed Drive
20
Wiring the Remote Sensor
21
Wiring the Analog Input to Remote Pressure Sensors
22
Wiring the Analog Input to Third-Party Sensor
25
Wiring the Analog Input for Temperature or Using a Thermistor
26
Wiring the Analog Input to a Room Thermostat
27
Wiring the Analog Input for Precision Temperature
28
Wiring the Digital Input to Door Switch
29
Wiring the Digital Input to Occupancy Sensor
30
Wiring the Relay Output to Alarm
31
Wiring the Relay Output to Warn
32
Wiring Relay Output 1
33
Wiring the Relay Output 2
34
Wiring Power
35
Wiring the Universal 120 V/240 V to 24 V Stepdown Isolation Transformer
36
Wiring the 24 V to 24 V Isolation Transformer
37
Wiring Communications to Bacnet MS/TP
38
Wiring Communications to Metasys N2 Open
39
Configuring Display Module Settings
40
Configuring Main Controller Module Settings
40
Configurations and Settings
41
Bacnet Objects
42
Metasys N2 Objects
45
Product Code Matrix
48
Cleaning the Display
49
North American Emissions Compliance
49
