TRIATEK FMS-2000C User Manual

FMS-2000C
LIT-12013531
21
Wiring the remote sensor
See Figure 9 for the electrical connections made via a backplate assembly to the FMS-2000C controller. Make sure all wiring conforms
to the local regulations and National Electric Code. Take care not to run sensor wiring in the same conduit as the line voltage or other
conductors that supply highly inductive loads, such as, generators, motors, solenoids, and contactors. Use a 22 AWG cable or larger.
DIP switch ON or OFF Input or output conguration
S1 position 1 ON AI-1 set as 4 mA to 20 mA input
S1 position 5 OFF

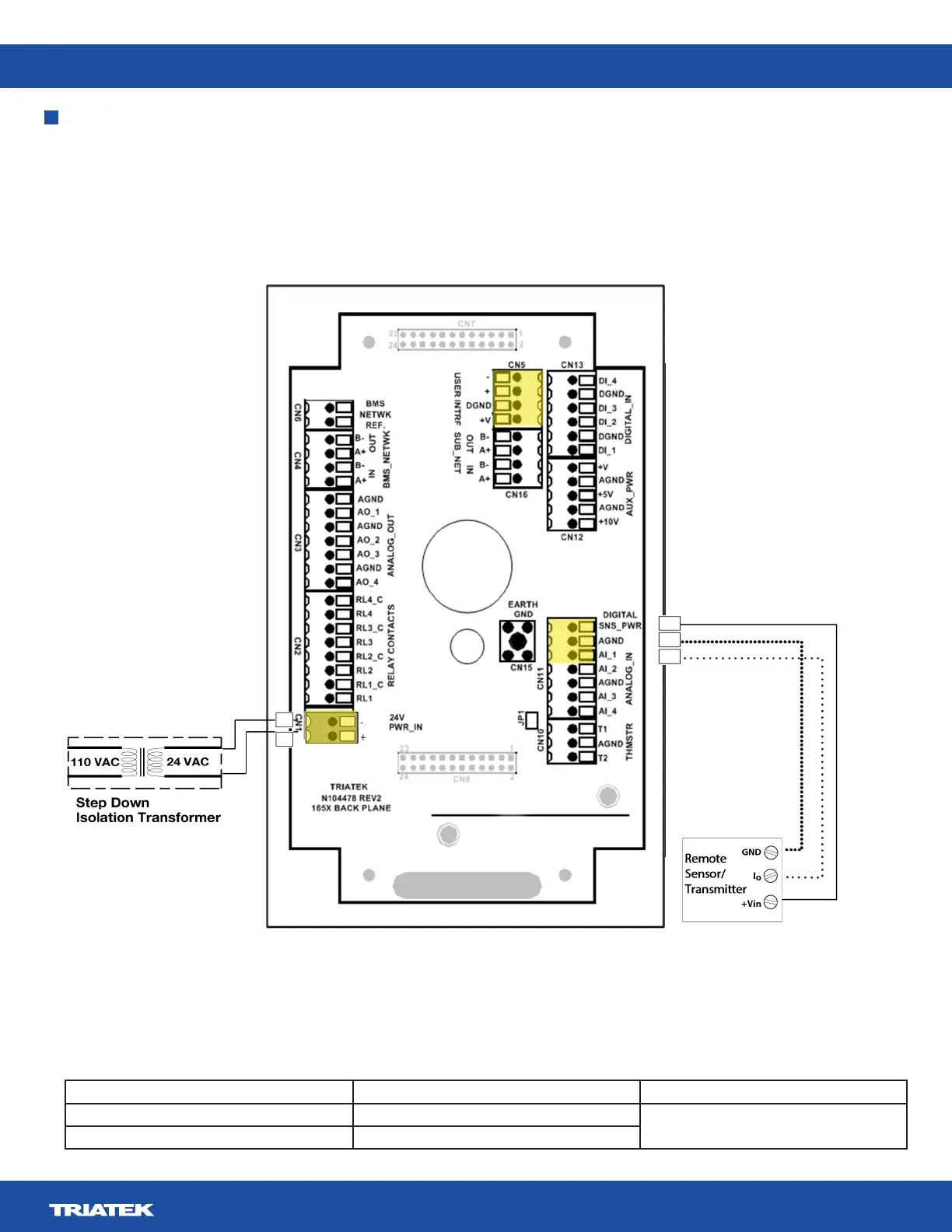

Figure 15: Wiring the analog input to a single remote pressure sensor with a 4 mA to 20 mA output signal
Table 8: Controller conguration DIP switch settings
(provided with controller)
