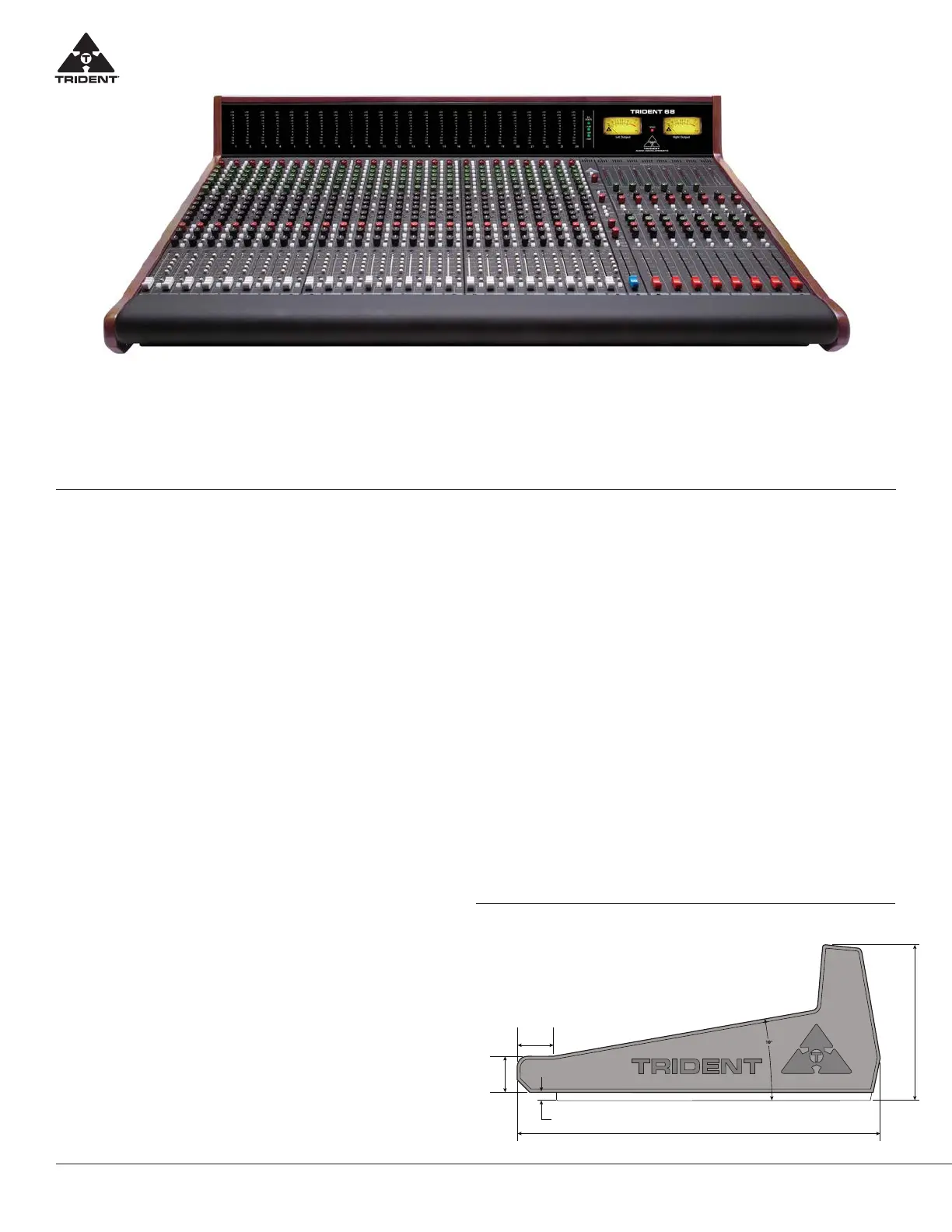

Trident 68 Introduction & Specifications
The Series 68 analog consoles have been developed to deliver the core feature set most often needed for analog recording.
The 68’s are Split/lnline consoles with individual channels in 8-way panels. Using an 8 subgroup configuration and incorporating
6 Aux sends, its routing options are vast and simple to use. Connections are fast and easy with DB-25’s throughout the
board and XLR’s for Master and Main outputs. With a flexible yet powerful 3 band EQ at its core, including selectable channel
inserts and monolithic preamps driving the inputs, the Series 68 consoles oer a wide array of summing and mixing options.
The sonic quality and compact footprint of the 68’s are able to meet any demand.
Trident 68 Specifications
Input Impedance
Microphone: >2KΩ electronically balanced
Line: >10KΩ electronically balanced
Output Impedance
Left/Right, Monitor O/P, Group & Auxes <50Ω
All other Outputs <100Ω
Frequency Response
Mic Input to Mix Output <+0, -0.3dB 10Hz to 55KHz
@ 6-60 dB gain.
Line Input to Mix Output <0, -0.3dB <100Hz to 60KHz
@ 0 dB gain.
Distortion/Noise (T.H.D +Noise) at +15dBu Output
Mic XLR Input to any Output (-20dBu input) <0.003%
Line Input to any Output <0.003%
Monitor/Tape Return Input to any Output <0.003%
Noise
Mic EIN (20-20KHz, 150Ω source, 60dB gain) <-128 dBu
Stereo residual Bus Noise (Output fader at min) <-95 dBu
Stereo Bus Noise (40 inputs continually assigned) <-80 dBu
(24 Input Mon/Tape Returns, 8 Stereo EFX Returns and 8 Master Tape Returns)
Bus Noise (24 inputs routed equiv. to 72 Inputs) <-75 dBu
Crosstalk
Adjacent Channel: < -90dB (@20KHz)
<-110dB (@1KHz)
Channel Fader Mute <-100dB (20Hz to 20KHz)
Monitor/Tape Return Mute <-85dB (20Hz to 20KHz)
Mix/Bus Assign <-80dB (20Hz to 20KHz)
Aux to Aux <-75dB (20Hz to 20KHz)
Maximum Input
Mic (XLR) Input (at min gain +10dB) +10dBu
Line (at min gain -15dB) +37dBu
All Monitor Returns +22dBu
All Insert Returns +22dBu
Maximum Output
Mix, Group, Aux, Monitor Outputs +26.5dBu (Into 600Ω)
Channel Send/Direct Out +22dBu (Into 2KΩ)
Phase
Mic Input to Direct Out +20
o
to -1
o
20Hz to 20Khz
Mic In to Mix Output +23
o
to -12
o
20Hz to 20Khz
Line In to Mix Output +13
o
to -15
o
20Hz to 20Khz
Monitor/Tape Return to Mix Output +8
o
to -12
o
20Hz to 20Khz
Trident 68 Dimensions
Width Depth Height
16 Channel: 33.37” (84.759cm) 28.750” (73.025cm) 12.293” (31.224cm)
24 Channel: 43.37” (110.159cm) 28.750” (73.025cm) 12.293” (31.224cm)
28.750”
73.025cm
2.875”
7.303cm
2.852”
7.244cm
12.293”
31.224cm
.632”
1.605cm
Module width
Input Module (8 Channels): 9.980” (25.350cm)
Master Module: 1.230” (3.124cm)
Group Module (8 Channels): 9.980” (25.350cm)
