Trident 68 Owners Manual 6

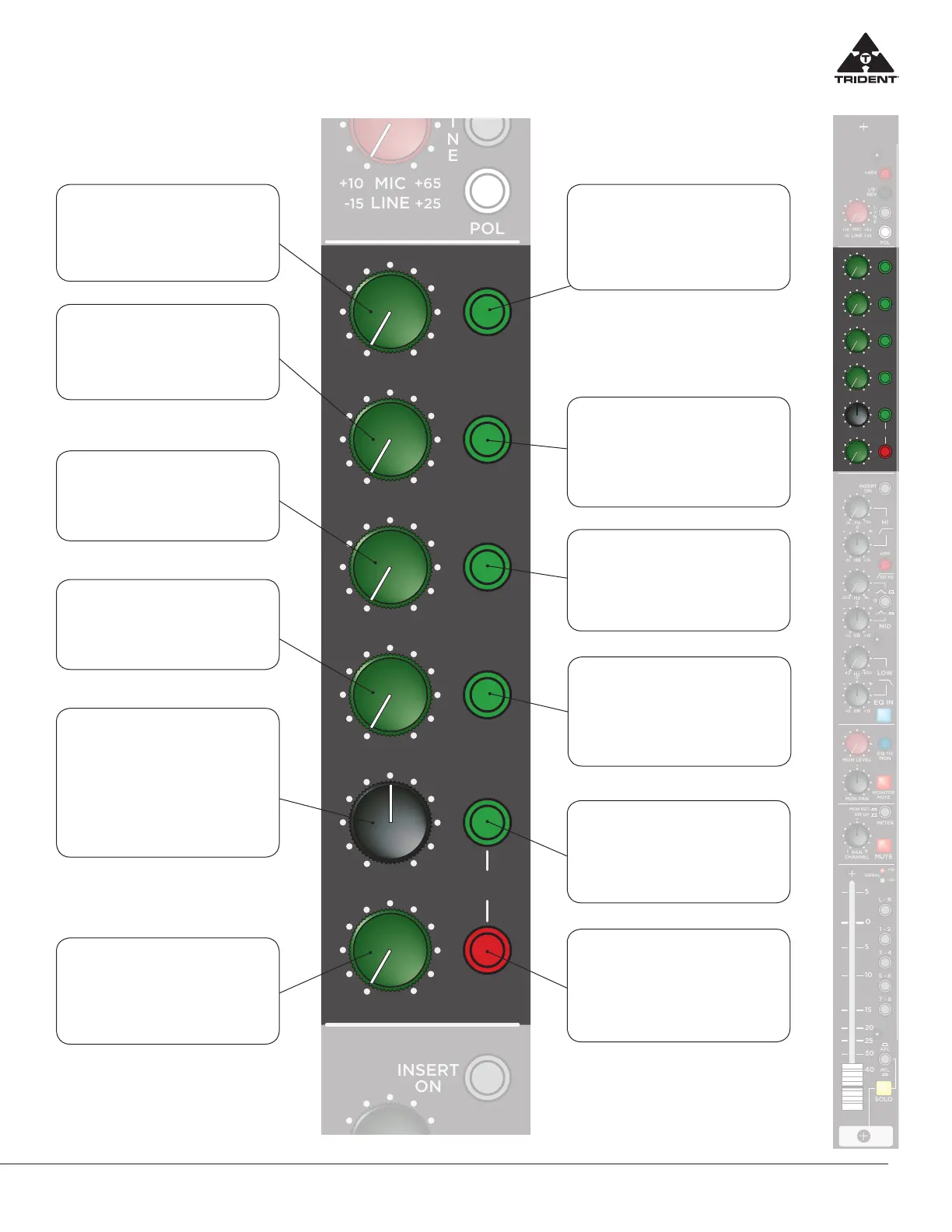

Trident 68 Input Channel Mic/Line Options Trident 68 Input Channel Aux Sends
AUX 2 Level Control
Adjusts the mix level of Channel
into the Aux 2 bus.
AUX 3 Level Control
Adjusts the mix level of Channel
into the Aux 3 bus.
AUX 4 Level Control
Adjusts the mix level of Channel
into the Aux 4 bus.
AUX 5-6 PAN Control
Adjusts the balance of the chan-
nel signal being fed to Aux 5
bus (CCW) and Aux 6 bus (CW).
In the centre (=) position equal
signal level is sent to both Aux 5
and Aux 6 buses.
AUX 5-6 Level Control
Adjusts the stereo mix level of
Channel into the Aux 5 and Aux
6 buses.
AUX 2 Pre Switch
This switch determines the signal source
for Aux 2 bus, between Post (Up) or Pre
(Down) Channel fader.
AUX 3 Pre Switch
This switch determines the signal source
for Aux 3 bus, between Post (Up) or Pre
(Down) Channel fader.
AUX 4 Pre Switch
This switch determines the signal source
for Aux 4 bus, between Post (Up) or Pre
(Down) Channel fader.
AUX 5-6 Pre Switch
This switch determines the signal source
for Aux 5 and Aux 6 buses, between
Post (Up) or Pre (Down) channel fader.
AUX 5-6 To Mon
When depressed selects the channel
monitor input as the source to the Aux
5 - 6 Level control. In the up position
sources the channel signal.
AUX 1 Level Control
Adjusts the mix level of Channel
into the Aux 1 bus.
AUX 1 Pre Switch
This switch determines the signal source
for Aux 1 bus, between Post (Up) or Pre
(Down) Channel fader.
