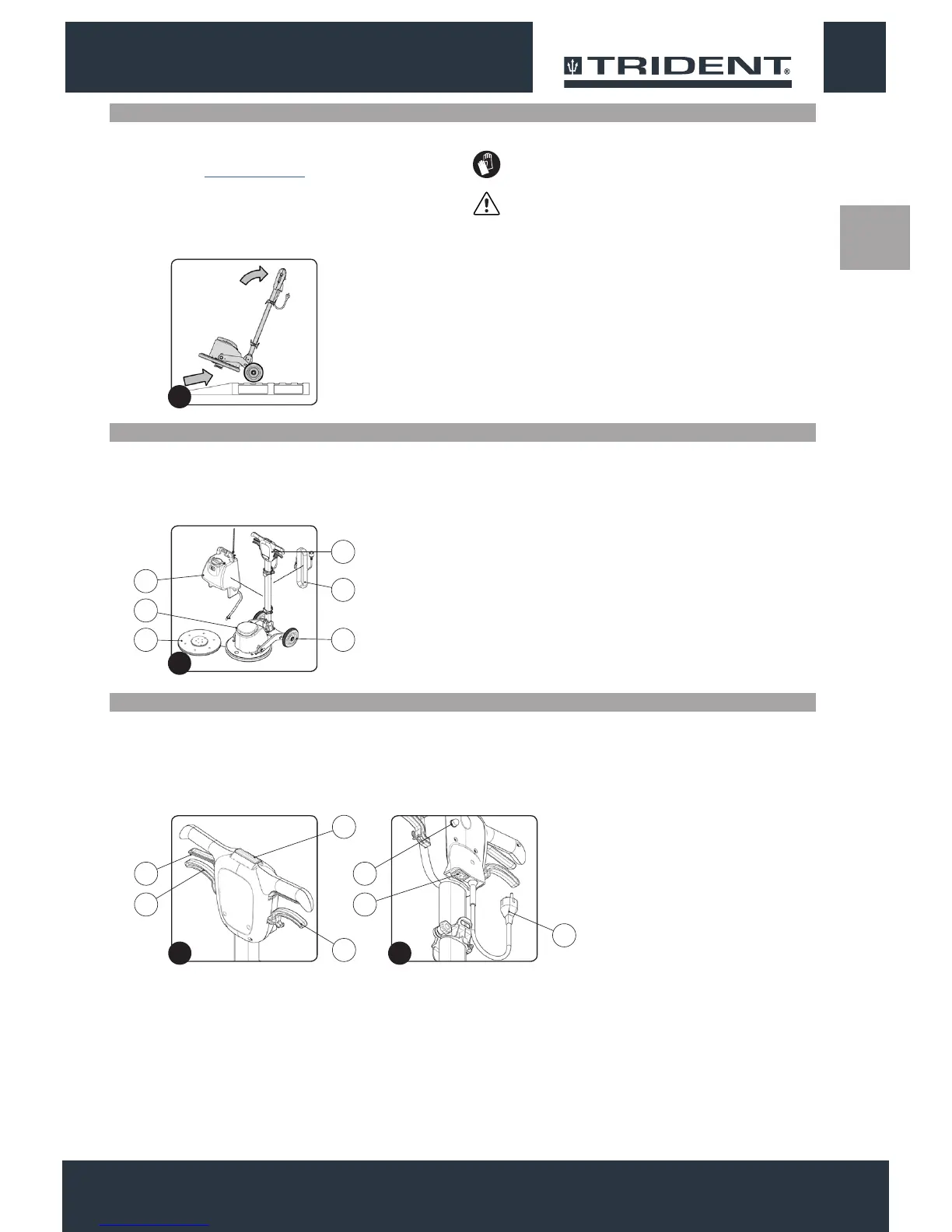

HOW TO TRANSPORT THE APPLIANCE
To safely transport the appliance, proceed as follows:
1. Take all necessary steps to ensure that the device is in a safe
condition (see “MACHINE SAFETY”).
2. Using a chute, bring the appliance up onto the pallet, pushing
it backwards.
3. Lay the brush head on top of the pallet.
4. Using the straps, x the appliance to the pallet.
5. Now the appliance can be transported safely.
ATTENTION: You are advised to always wear protective
gloves, to avoid the risk of serious injury to your hands.
ATTENTION: When transporting the appliance on vehicles,
secure it according to the directives in force so that it cannot
slide or tip over.
MAIN COMPONENTS OF THE APPLIANCE
MAIN COMPONENTS OF THE CONTROL HANDLEBAR
The basic components of the appliance are as follows:
1. Control handlebar.
2. Frame.
3. Brush head.
The handlebar components are identied as follows:
1. dead man's lever.
2. Control lever main switch (positioned under the grip of the
handlebar).
3. Handlebar tilt adjustment lever.
4. Detergent distribution valve control lever.
5. Brush head motor thermal circuit breaker.
6. Power cable.
7. Socket for electric tool.
4. Brush head carter.
5. Pad holder.
6. Power cable 16,4Yd.
7. Solution tank kit.
