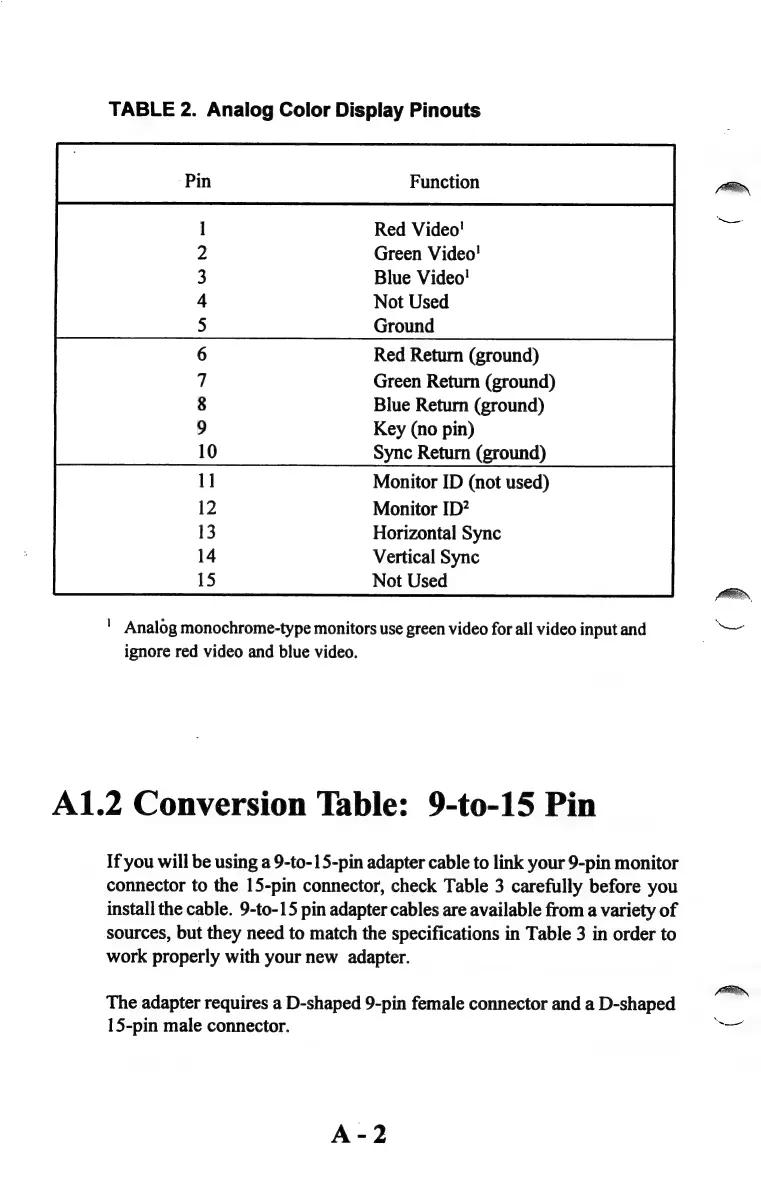

Trident TVGA8900CL - A1.2 Conversion Table: 9-to-15 Pin

TABLE 2. Analog Color Display Pinouts
Function
Red Video!
Green Video!
Blue Video!
Not Used
Ground
Red Return (ground)
Green Return (ground)
Blue Return (ground)
Key (no pin)
Sync Return (ground)
Monitor ID (not used)
Monitor ID?
Horizontal Sync
Vertical Sync
Not Used
1
2
3
4
5
6
7
8
ND
' Analog monochrome-type monitors use green video for all video input and
ignore red video and blue video.
A1.2 Conversion Table: 9-to-15 Pin
If you will be using a 9-to-15-pin adapter cable to link your 9-pin monitor
connector to the 15-pin connector, check Table 3 carefully before you
install the cable. 9-to-15 pin adapter cables are available from a variety of
sources, but they need to match the specifications in Table 3 in order to
work properly with your new adapter.
The adapter requires a D-shaped 9-pin female connector and a D-shaped
15-pin male connector.
*
