Trident TVGA8900CL - A1.3 Video Signals; A1.4 Sync and Polarity Specifications

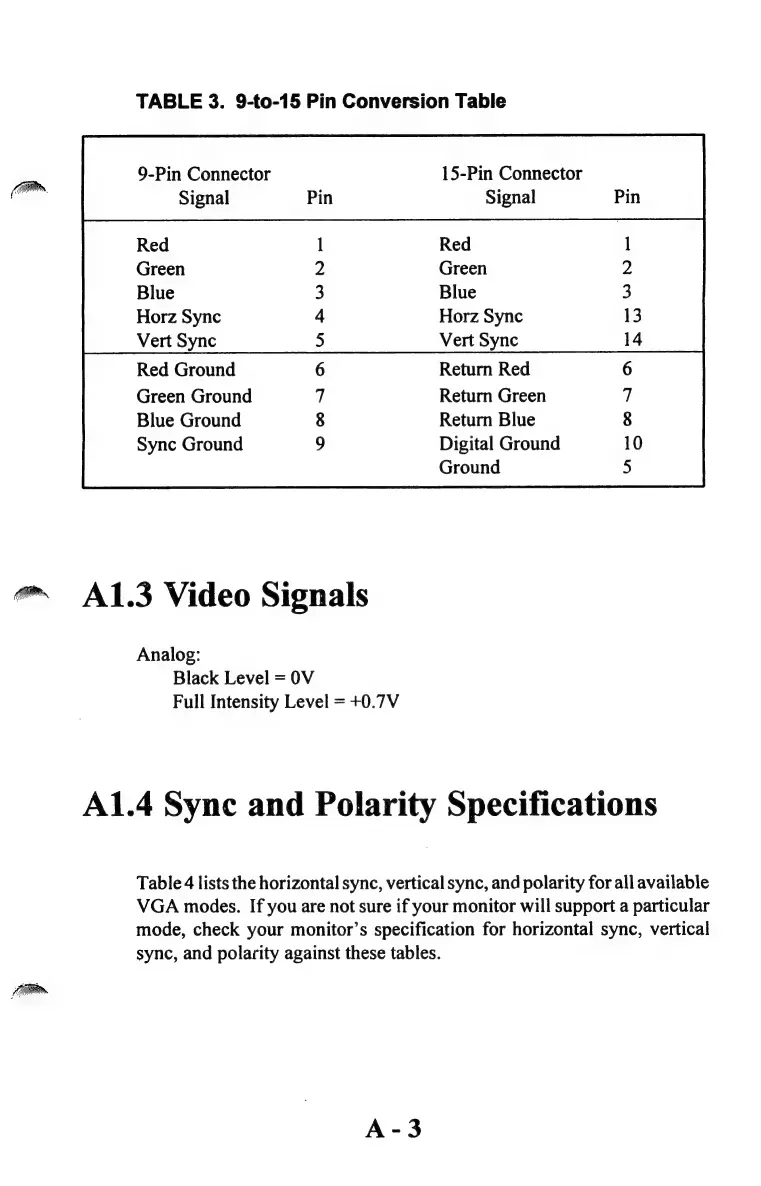

TABLE 3. 9-to-15 Pin Conversion Table
9-Pin Connector 15-Pin Connector
Signal i Signal
Red
Green
Blue
Horz Sync
Vert Sync
Red Ground
Green Ground
Blue Ground
Sync Ground
Red
Green
Blue
Horz Sync
Vert Sync
Return Red
Return Green
Return Blue
Digital Ground
Ground
O 0 SI Qin A U N =
A1.3 Video Signals
Analog:
Black Level = 0V
Full Intensity Level = +0.7V
A1.4 Sync and Polarity Specifications
Table 4 lists the horizontal sync, vertical sync, and polarity for all available
VGA modes. If you are not sure if your monitor will support a particular
mode, check your monitor's specification for horizontal sync, vertical
sync, and polarity against these tables.
