TT21/TT22 Transponder Installation Manual 22 August 2017
00560-00 Issue AP
______________________
Trig Avionics Limited 57

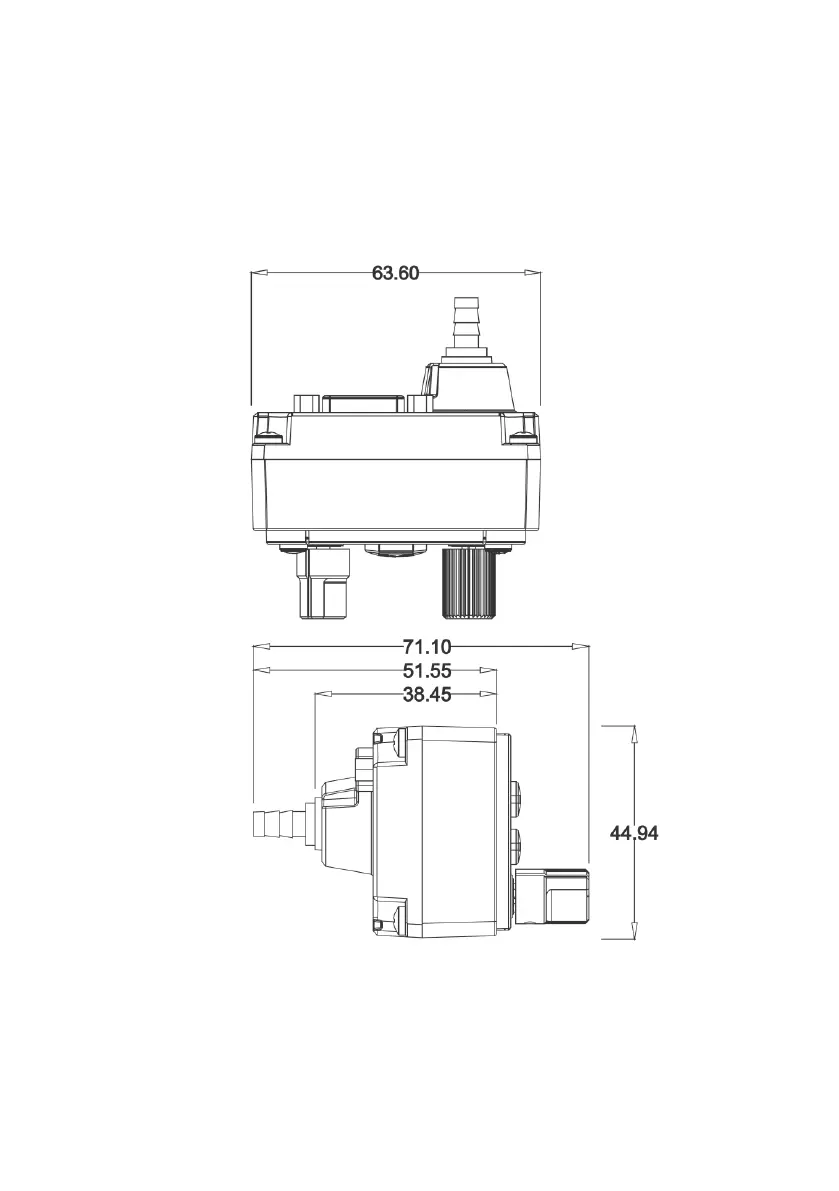

13.2 Front Panel Controller Dimensions
Controller shown without the mounting adapters (00678-00) used for 57mm
(2¼ inch) instrument mounting.
All dimensions in millimetres.
