XPERT-PRO – Operational Manual
TRINITY
[25]

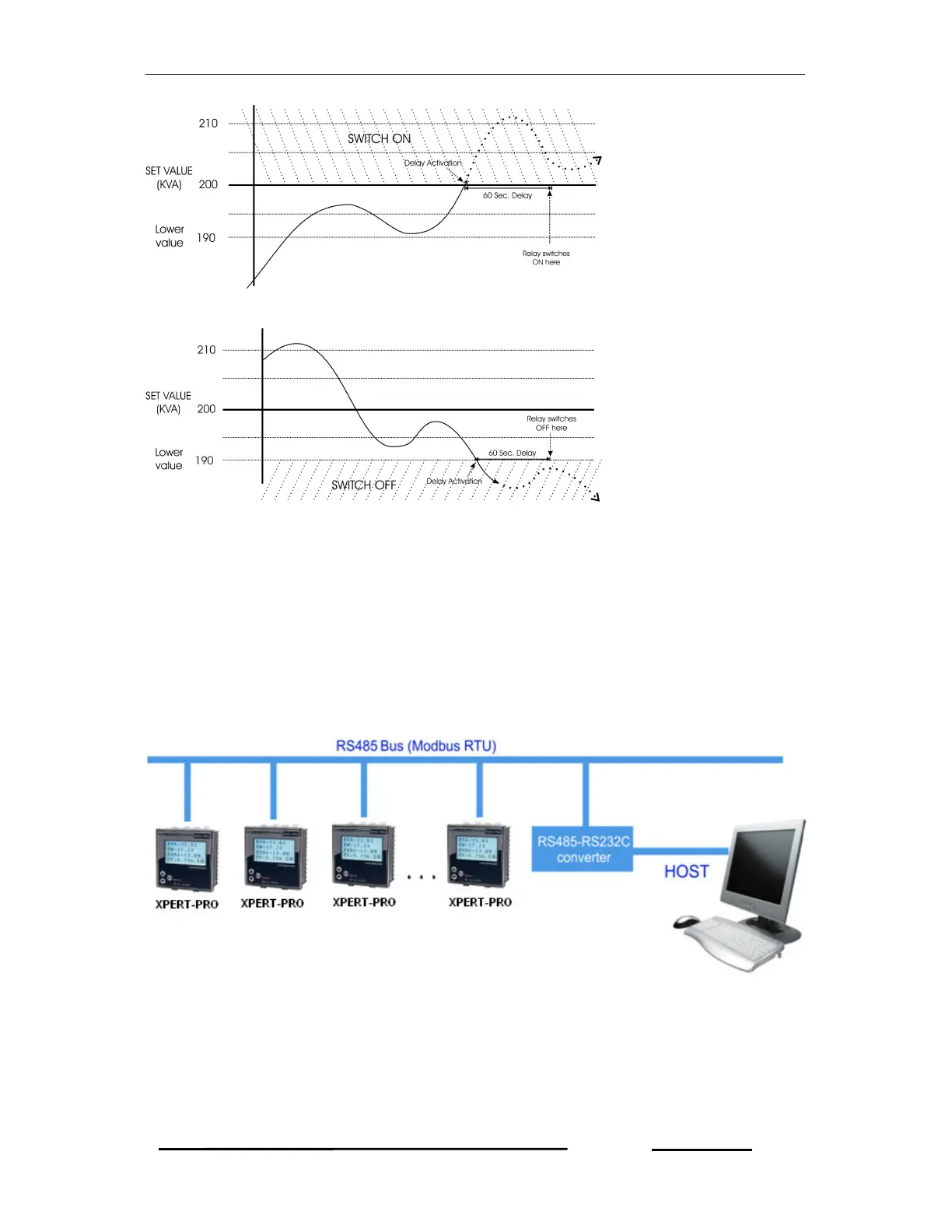

In case of PF, the hysteresis is not applicable and the operation is also reversed. It
has a multiplying factor (MF) of 100. Thus, a PF value of 0.98 is set as 98. Thus,
when the PF value falls below 98, the relay will wait for 120 seconds and then close
the switch. However, the relay will open when PF crosses 98 with the specified
delay.
Communication
RS485 CONNECTION
The industrial standard RS-485 communication port option is also available in
XPERT-PRO. This option makes it possible for a user to select XPERT-PRO to
provide power and energy information into a variety of existing or new control
systems and communication networks such as EMS/PLC/SCADA.
