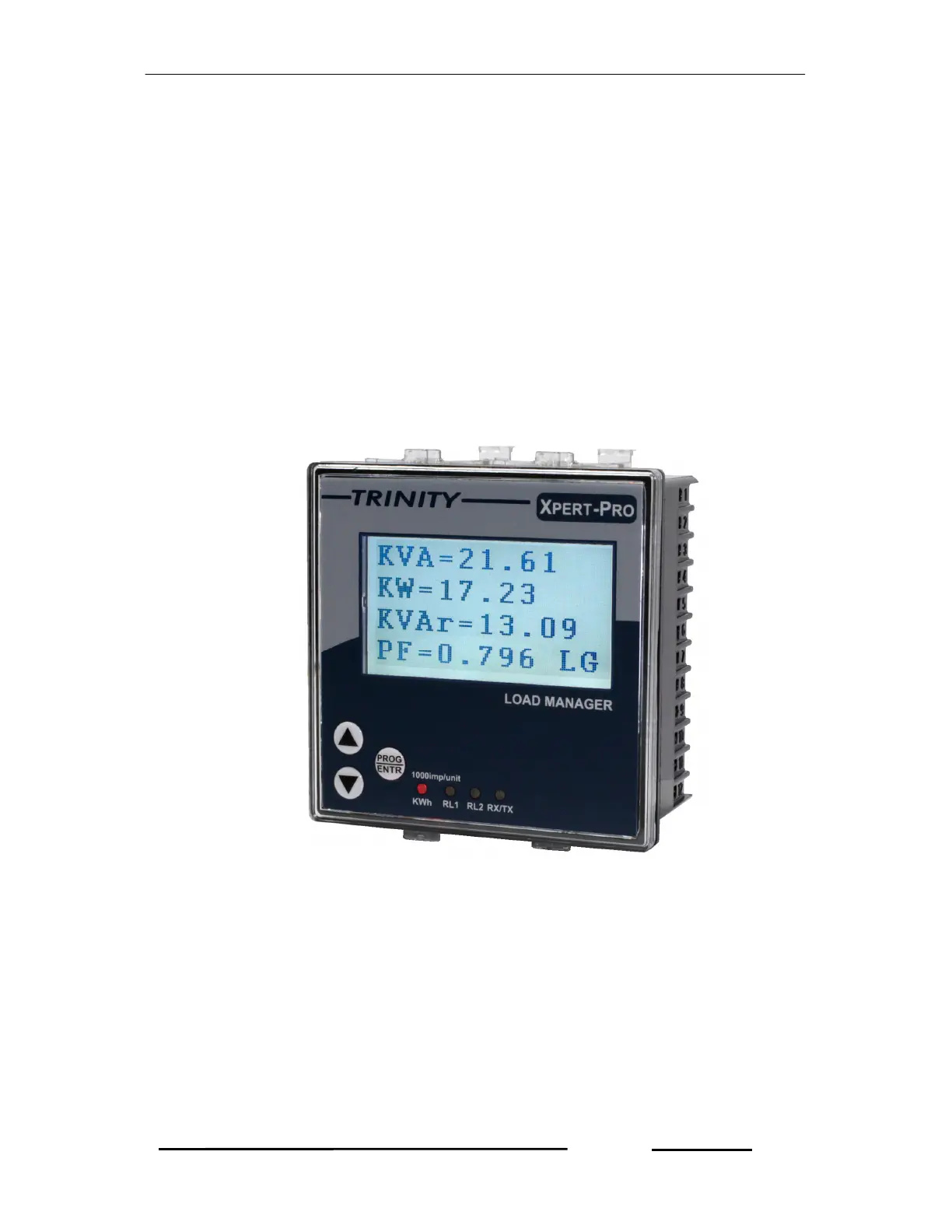

XPERT-PRO – Operational Manual
TRINITY
[5]
Individual Current and Voltage Waveforms for each phase of three phases.
RS-485 port for connection to SCADA/EMS.RS-485 communication with
indication RX/TX LED.
KWh Energy Pulse output on the LED (1000 impulses/KWh basic).
All parameters with default accuracy class 1.0s
Two relay contacts for alarm/trip which are programmable for different
parameters including (Sliding) Demand powers (KW and KVA).
In ideal condition the back light will turn off after 5 min. And if any key is
pressed back light will on.
