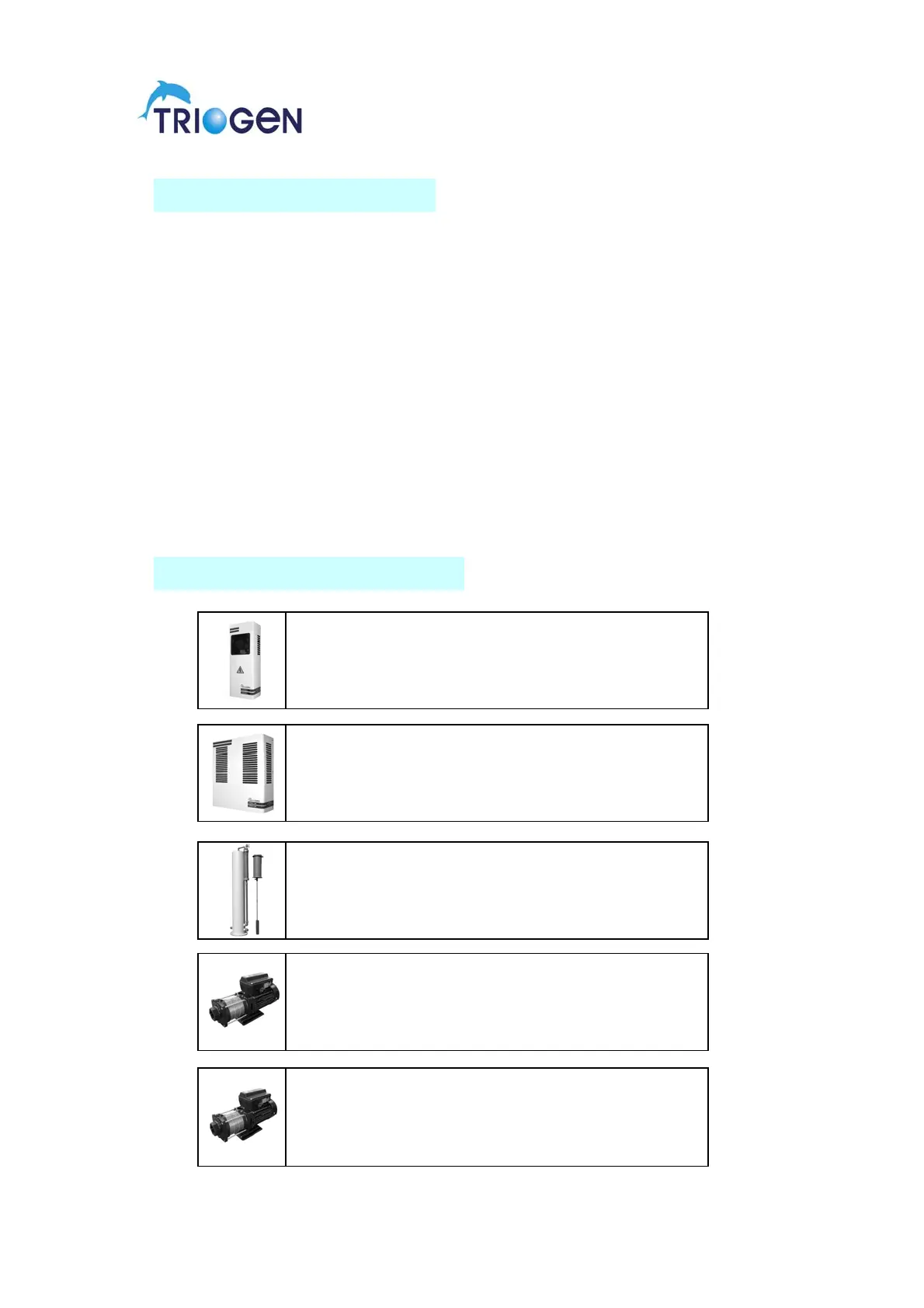

GENERAL INFORMATION
T8 SYSTEM COMPRISES:
2 - OZONE GENERATOR TOG B2
1 - AIR DRYER TADB1
2 - INJECTOR
2 - WATER TRAP ASSEMBLY
2 - AIR FLOWMETER
2 - 8mm PTFE TUBING 3 METERS
1 - 8mm FESTO TEE-PIECE
TOG B2 TECHNICAL INFORMATION
OZONE OUTPUT (gm/hr) : 2.0
VOLTAGE (v/ph/hz) : 110-230/1/50-60
POWER (watts) : 120
DIMENSIONS (mm) : 440H x 155W x 110D
WEIGHT (kg) : 4.4
TAD B1 TECHNICAL INFORMATION
AIR OUTPUT (ltr/min) : 24
VOLTAGE (v/ph/hz) : 110-230/1/50-60
POWER (watts) : 60
DIMENSIONS (mm) : 440H x 305W x 110D
WEIGHT (kg) : 10.0
TDG A1 TECHNICAL INFORMATION
WATER FLOW (m
3
/hr) : 4.8 max
DIAMETER (mm) : 250
HEIGHT (mm) : 1600 overall
CONNECTIONS (mm) : 1” or 1 1/4” union
WEIGHT (kg) : 29 empty
CH2-50-1 TECHNICAL INFORMATION
WATER FLOW (m
3
/hr) : 2.4
PRESSURE (m head) : 28
VOLTAGE (v/ph/hz) : 110-230/1/50-60
POWER (watts) : 710
WEIGHT (kg) : 12.0
CH4-50-1 TECHNICAL INFORMATION
WATER FLOW (m
3
/hr) : 4.8
PRESSURE (m head) : 28
VOLTAGE (v/ph/hz) : 110-230/1/50-60
POWER (watts) : 1250
WEIGHT (kg) : 16.0
TECHNICAL INFORMATION
T4 SYSTEM COMPRISES:
1 - OZONE GENERATOR TOG B2
1 - AIR DRYER TADB1
1 - INJECTOR
1 - WATER TRAP ASSEMBLY
1 - AIR FLOWMETER
1 - 8mm PTFE TUBING 3 METRES
T2 SYSTEM COMPRISES:
1 - OZONE GENERATOR TOG B2
1 - INJECTOR
1 - WATER TRAP ASSEMBLY
1 - AIR FLOWMETER
1 - 8mm PTFE TUBING 3 METRES
TDG A1 SYSTEM COMPRISES:
1 - 250 DIA CONTACT TANK
1 - AUTOMATIC VENT VALVE
1 - CARBON DESTRUCT FILTER
1 - WATER TRAP POT
1 - 8mm PTFE TUBING 3 METRES
OPTIONAL EXTRAS:
INJECTOR BOOSTER PUMP CH2-50-1
(T2 & T4 SYSTEMS)
INJECTOR BOOSTER PUMP CH4-50-1
(T8 SYSTEM)
