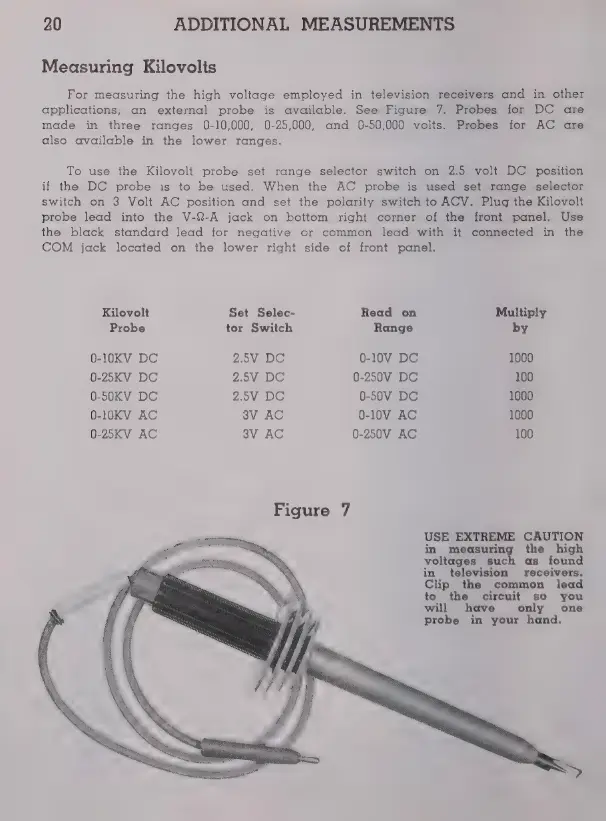

20 ADDITIONAL MEASUREMENTS
Measuring Kilovolts
For measuring the high voltage employed in television receivers and in other
applications, an external probe is available. See Figure 7. Probes for DC are
made in three ranges 0-10,000, 0-25,000, and 0-50,000 volts. Probes for AC are
also available in the lower ranges.
To use the Kilovolt probe set range selector switch on 2.5 volt DC position
if the DC probe is to be used. When the AC probe is used set range selector
switch on 3 Volt AC position and set the polarity switch to ACV. Plug the Kilovolt
probe lead into the У-0-А jack on bottom right corner of the front panel. Use
the black standard lead for negative or common lead with it connected in the
COM jack located on the lower right side of front panel.
Kilovolt Set Selec- Read on Multiply
Probe tor Switch Range by
0-10KV DC 2.5V DC 0-10V DC 1000
0-25KV DC 2.5V DC 0-250V DC 100
0-50КУ DC 2.5V DC 0-50V DC 1000
0-10KV AC ЗУ AC 0-10V АС 1000
0-25КУ АС ЗУ АС 0-250У АС 100
Figure 7
USE EXTREME CAUTION
in measuring the high
voltages such as found
in television receivers.
Clip the common lead
to the circuit so you
will have only one
probe in your hand.
