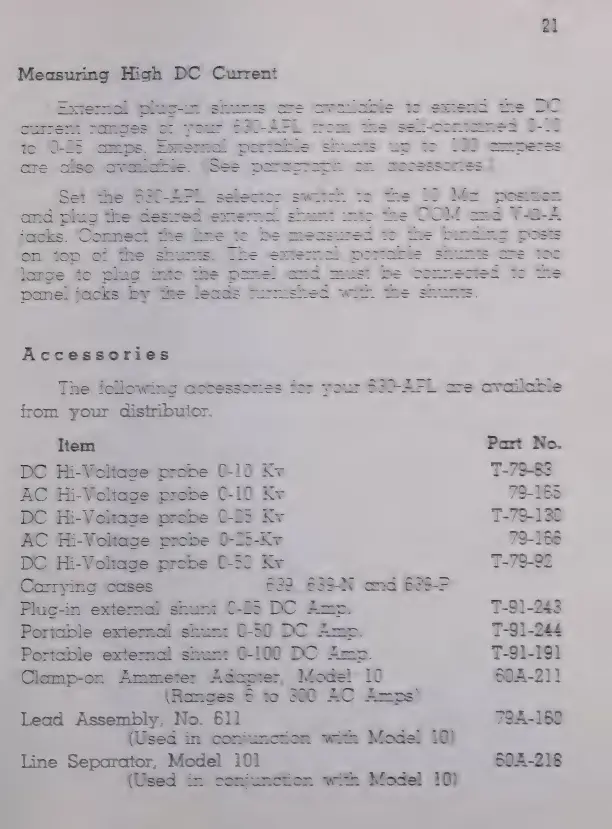

Measuring High DC Current
21
External plug-in shumis are available io exiend the DC
current ranges of your 630-APL from ihe seliconicined 0-10
io 0-25 amps. Exiernal portable shunis up іо 100 omperss
are also available. (See paragraph on accessories.)
Set the 630-APL selector swiich io the 10 Ma. position
and plug ће desired external shunt into the COM and V-Q-A
jacks. Connect the line io be measured io the binding posts
on top of the shunts. The extemal portable shunis are 100
large to plug into the panel and musi be connected io ihe
panel jacks by the leads furnished with ihe shunis.
Accessories
The following accessories jor your 630-APL are
from your distribuior.
Item
DC Hi-Voliage probe 0-10 Ку
АС Hi-Voltage probe 0-10 Ку
DC Hi-Voltage probe 0-25 Kw
AC Hi-Voltage probe 0-25-Kw
DC Hi-Voltage probe 0-50 Kw
Carrying cases 639, 639-N and 639-P
Plug-in external տեսու 0-25 DC Amp.
Portable external shuni 0-50 DC Amp.
Portable external shuni 0-100 DC Amp.
Clamp-on Ammeier Adapter, Mode! 10
(Ranges 6 io 300 AC Amps)
Lead Assembly, No. 611
(Used in conjunction with Model 10)
Line Separator, Model 101
(Used in conjunction with Model 10)
available
Part No.
т-79-83
79-165
Т-79-130
79-166
T-79-92
Т-91-243
T-91-244
Т-91-191
504-211
794-160
504-218
