Page 25

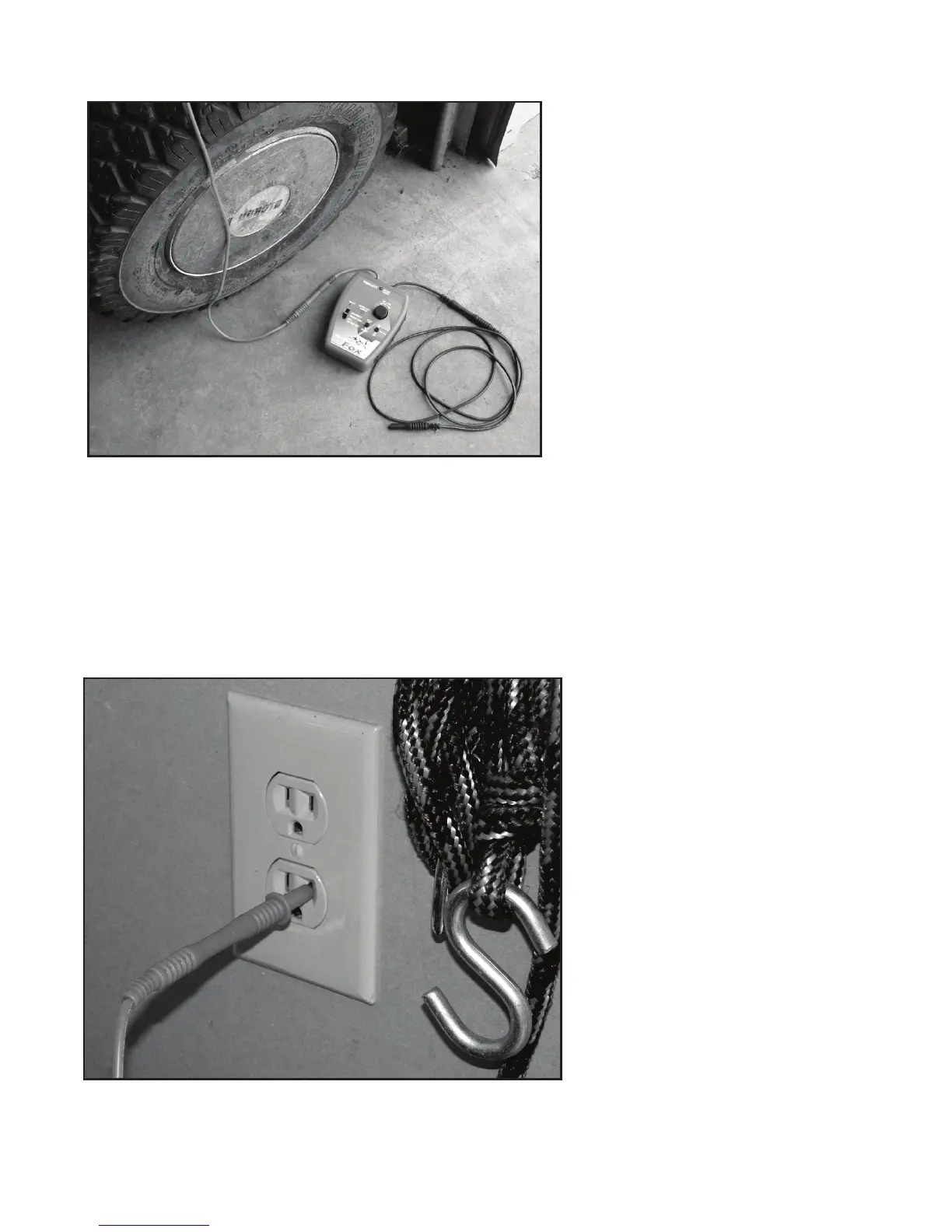

HotWire Fox on ‘Earth’
Connect the red pigtail to either the 2’ or 5’ red test lead (use the shortest one you can), and connect the
other end of the test lead to the wire to be traced. In the following photo, the target wire is connected to a
wall outlet.
Single Test Lead in
Wall Socket
