1. Overview and Features
1.1 Overview
• Tripp Lite’s Sine Wave Inverter-Charger is a heavy-duty unit generating a pure sine wave from a 12V battery bank. It can
supply power to a wide range of connected equipment, from heaters, air conditioners, refrigerators and vacuum cleaners to
computers and peripheral devices. It is designed to work in heavy load conditions, so de-rating is unnecessary.
• The smart charger is compatible with various battery types and sizes. The switch module automatically diverts the energy
transfer path between the inverter and an AC input. When the AC source is lower than the transfer level, the path switches
to the inverter. Otherwise, the load is powered by the AC input.
1.2 Indicators, Controls and Settings
1.2.1 Controls and LED Indicators

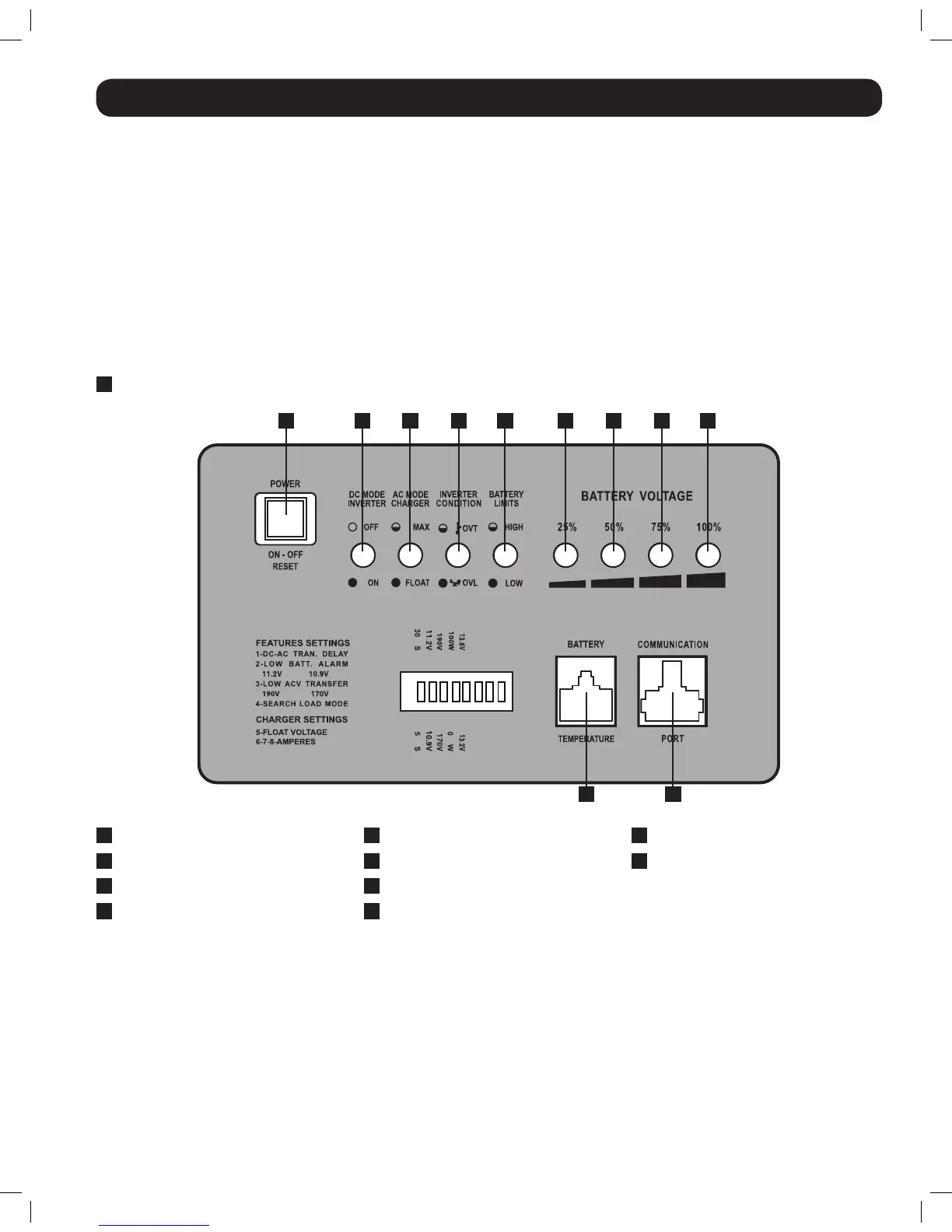

Shown below are the control panel and indicator lights on the front panel of the Inverter/Charger.
1
Power ON/OFF Button
2
LED 1 – DC Mode Inverter
3
LED 2 – AC Mode Charger
4
LED 3 – Inverter Condition
5
LED 4 – Battery Limits
6
LED 5 – 25% Battery Voltage
7
LED 6 – 50% Battery Voltage
8
LED 7 – 75% Battery Voltage
9
LED 8 – 100% Battery Voltage
10
Battery Temperature Port (RJ11)
11
Communication Port (RJ45)
