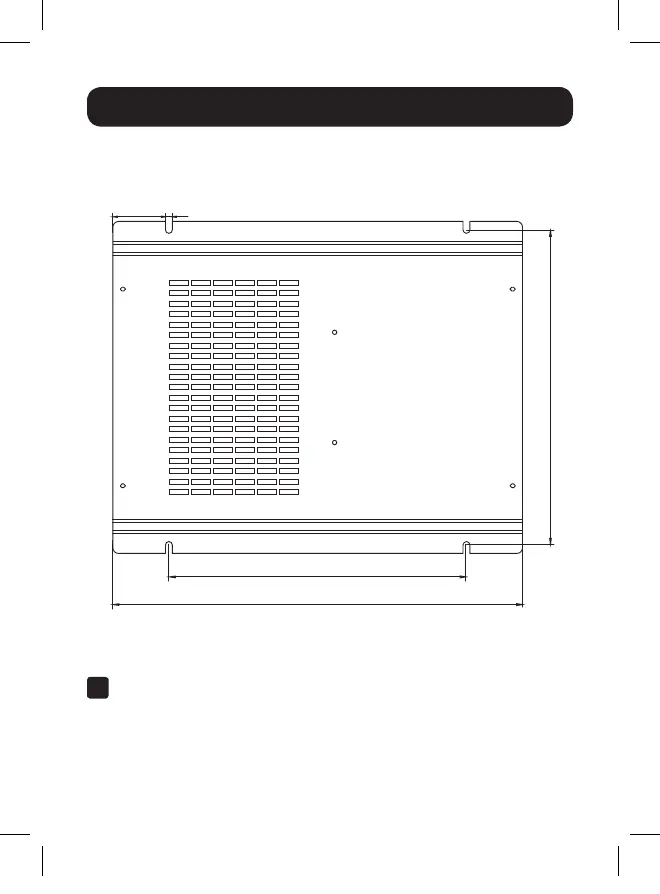

PINV2000HS/PINV3000 Mounting Dimensions*
Mounting
9.90 in. (251.5 mm)
12.87 in. (327 mm)
9.35 in. (237.5 mm)
1.65 in.
(42 mm)
0.22 in.
(5.6 mm)
PINVRM Remote Control Mounting Instructions
1
To mount the remote to a permanent location, ensure the 20 ft.
(6 m) remote cable can reach the inverter’s RJ11 remote port.
*All mounting dimensions are accurate to +/- 0.1 inch (2.5 mm).
