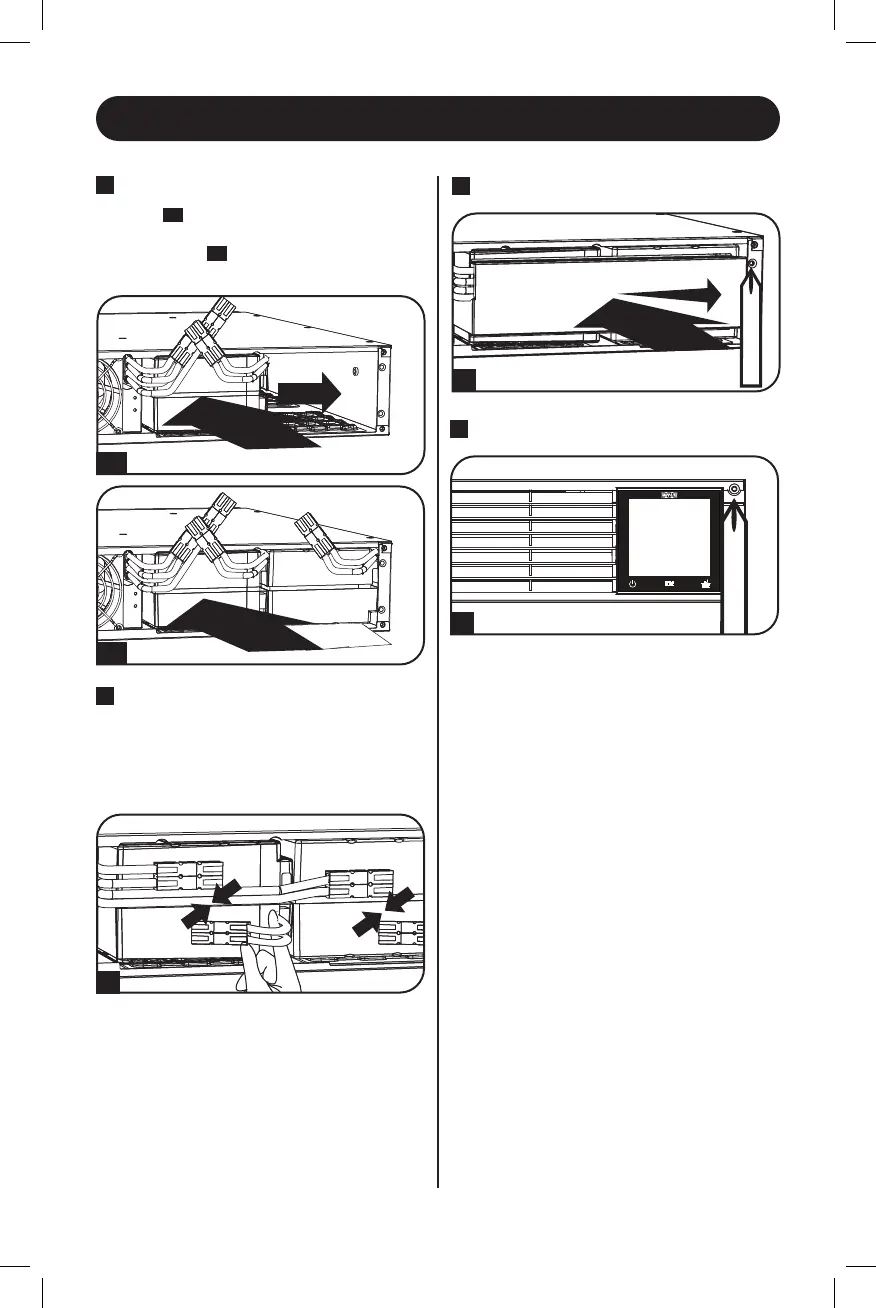

Battery Replacement
5
Add New Batteries
First,
5A
install the right row of batteries by
inserting them and sliding them to the
right. Then,
5B
install the left row of
batteries.
6
Connect Batteries
Attach both sets of connectors as shown:
black-to-black and red-to-red.
Always ensure that the battery
terminals are properly secured.
7
Replace Battery Retention Plate
8
Replace Front Panel
