Triton AS2000 SR - Site Requirements & Recommended Installation

Power Shower
8
Mains supply
Isolating
valve
Cold water cistern
Vent pipe tee
Isolating
valve
Hot supply
Hot water
cylinder
Drain
valve
Other hot water
draw-offs
Alternative
connection
Shower unit
Ring main
25mm min
Isolating spur
(3A fused)
outside bathroom
Dedicated cold supply
10m
max
75mm
min
Isolating
valves

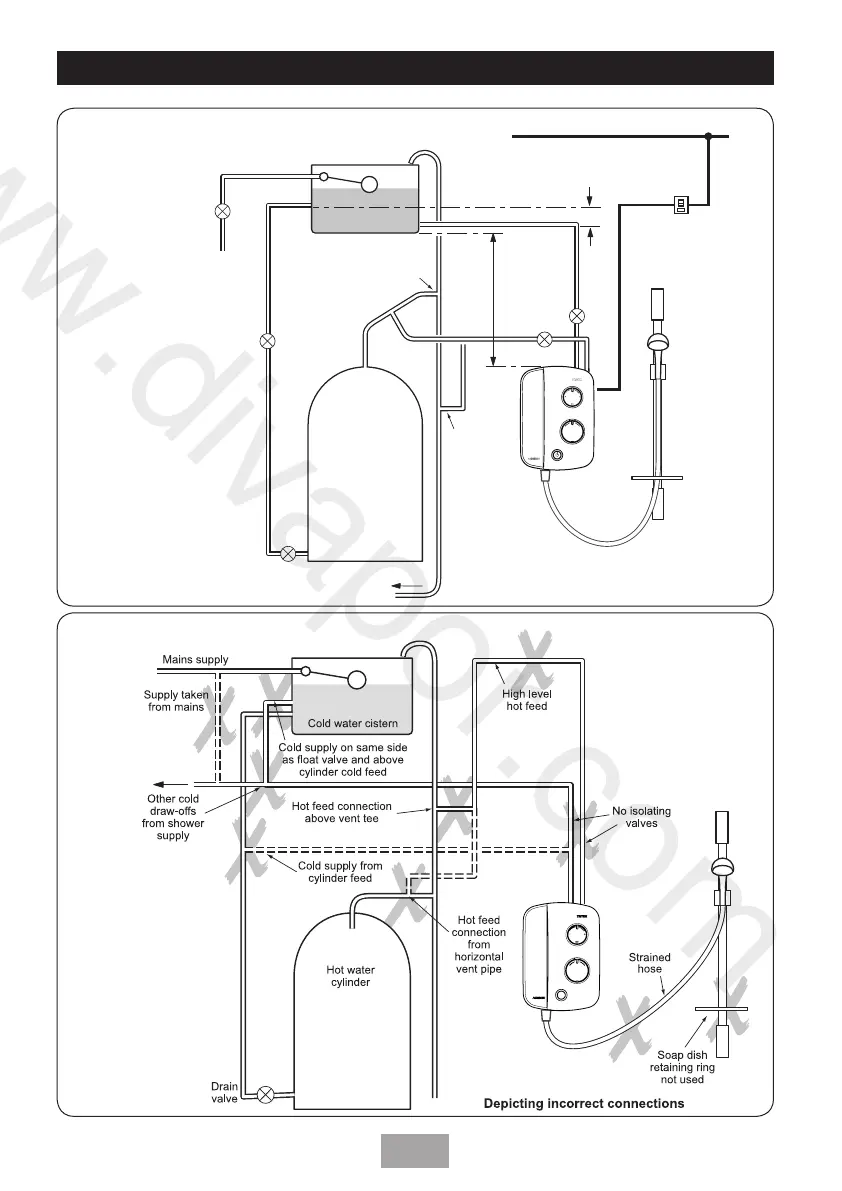

Fig.3a - Recommended Installation (Diagrammatic view – not to scale)
Fig.3b - Incorrect Connections (Diagrammatic view not to scale)
