Triton IVORY 4 User Manual

IVORY 4 electric shower
3

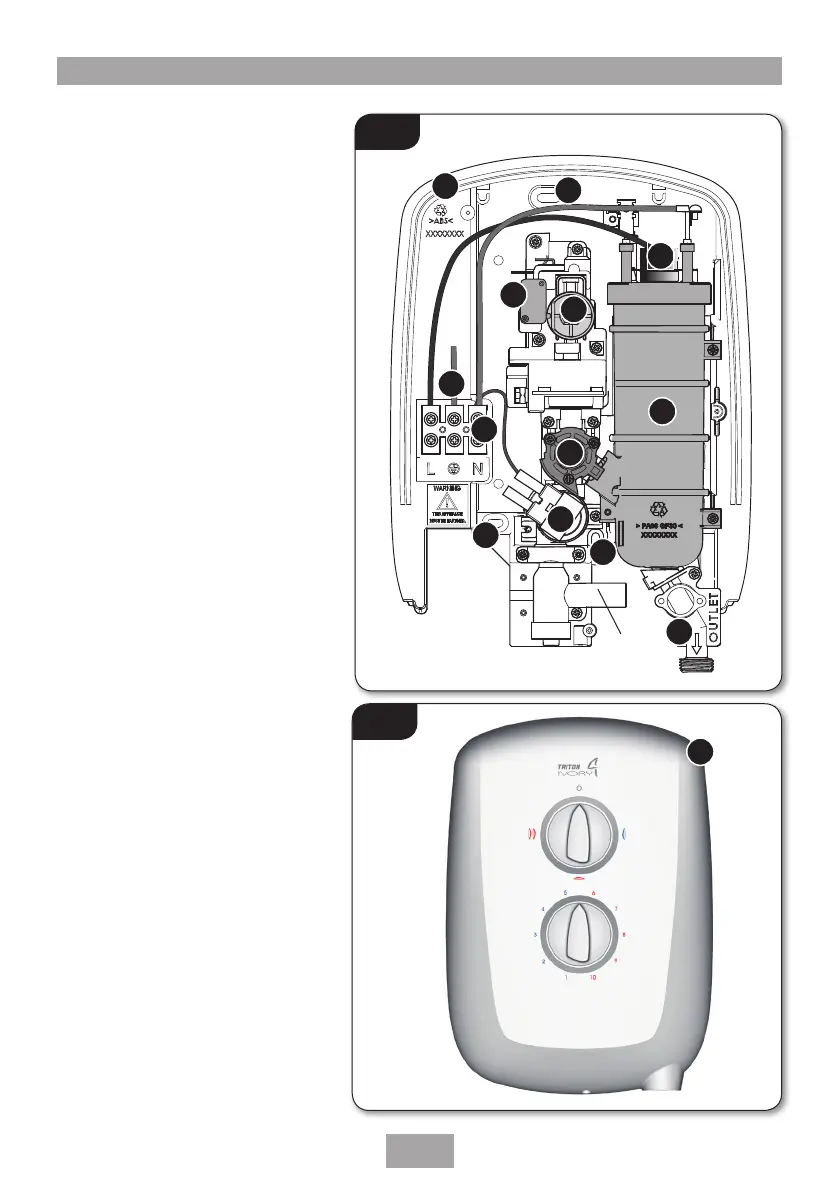

Inside unit (fig.1)
1. Top cable/water entry
2. Wall screw fixing
3. Terminal block
4. Power selector
5. Stabilising valve
6. Solenoid valve
7. Can and element assembly
8. Thermal cut-out - TCO
9. Earth connection
10. Outlet pipe
11. Start/Stop micro switch
- Pressure relief device
(see page 20)
Cover (fig.2)
12. Ivory 4 front cover
NOTE: Not all wiring shown for reasons of clarity
Fig.2
Fig.1
MAIN COMPONENTS
1
2
3
4
5
7
8
9
10
11
6
2
Inlet
Outlet
12
2
