Triton Martinique User Manual

Martinique electric shower
3
Main components
MAIN COMPONENTS

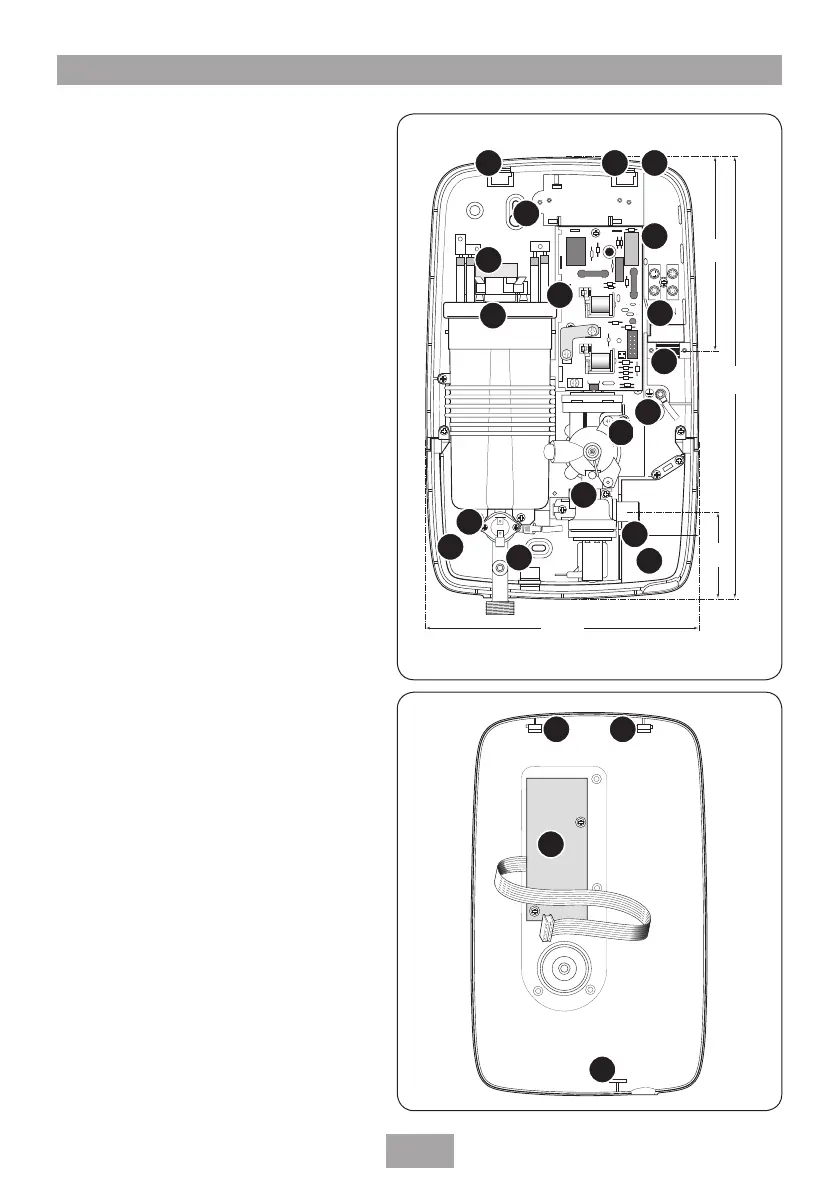

Inside unit (fig.1)
1. Top cable entry
2. Bottom pipe entry
3. Rear pipe entry area
4. Rear cable entry area
5. Wall screw fixing
6. Terminal block
7. Power PCB
8. Stabilising valve
9. Solenoid valve
10. Guide pockets
11. Can and element assembly
12. Thermal cut-out (main)
13. Earth connection
14. Outlet temperature regulator
15. Trimplate
Inside cover (fig.2)
16. Cover tags
17. Control PCB
Other items
Screw fixing kit
Instructions, guarantee, etc.
338
mm
68
mm
47
mm
145
mm
208 mm
Inlet
Outlet
Fig.1
Fig.2
Note: Not all wires have been depicted for reason of clarity
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
10
5
10
16
16

Triton Martinique Specifications

General

Type	Electric Shower
Installation	Wall Mounted
Start/Stop Button	Yes
Material	Plastic
Finish	White
Shape	Rectangular
Water Entry Points	Top, Bottom, Back (Right Hand Side)
Cable Entry Points	Top, Bottom, Back (Right Hand Side)
