Martinique electric shower
8
remove
cover
backplate
View from underneath
Note: The control knob is an integral part of the
cover – DO NOT attempt to remove it.

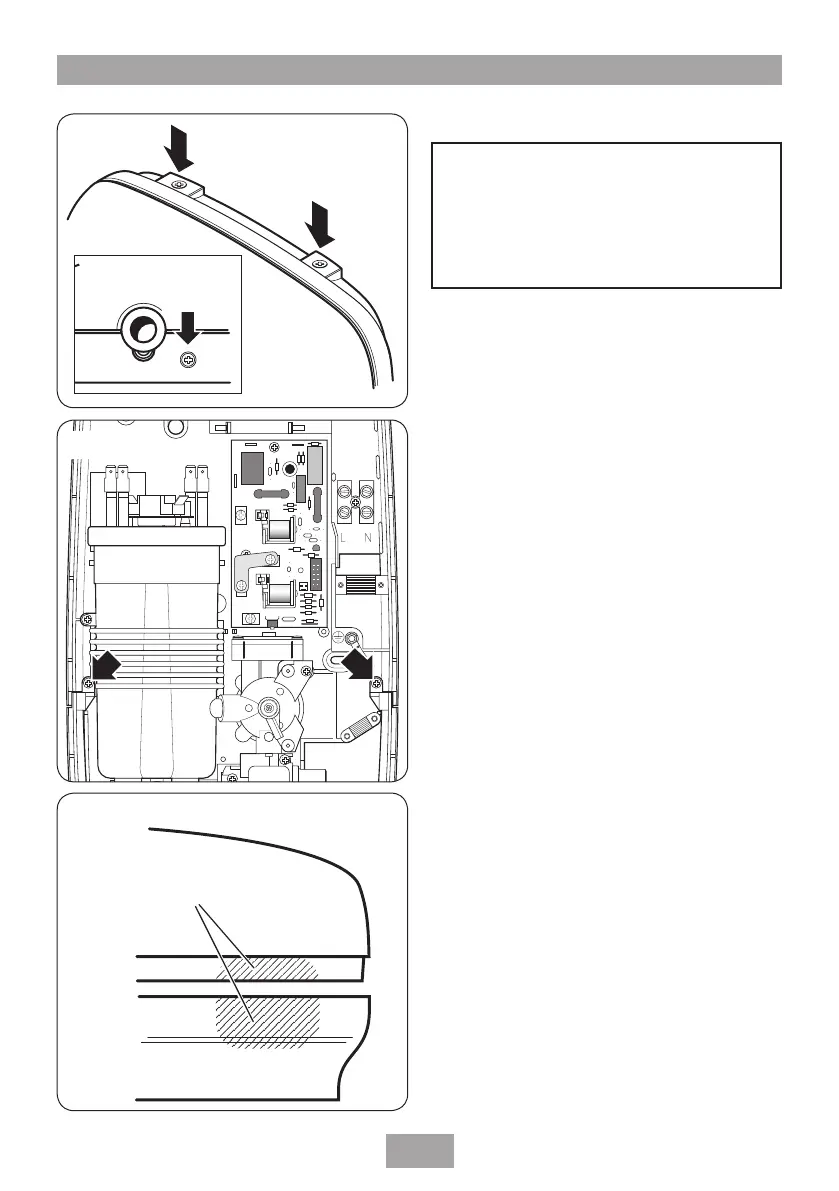

Unscrew the two top and one bottom retaining
screws (fig.7) and lift the cover from the
backplate. To access the pipe and cable
connections, remove the two screws (fig.8) and
take off the trimplate.
Entry positions for the mains water are from the
bottom or from the rear. Cable entry is via the
top or rear.
Note: Deviations from the designated entry
points will invalidate product approvals.
If bottom surface entry is required for the mains
cold water, then the necessary opening will need
to be cut out in the trimplate and cover (fig.9).
If surface cable entry from the top is required
then a small area will need to be cut out in the
backplate (fig.10).
If installing a feed pipe from the rear or bottom,
the centre of the inlet valve to the wall surface is
20 mm (fig.11).
Note: If entry is from the rear, the nut of the
compression fitting will be partially behind the
surface of the wall (fig.11). This area MUST
be left clear when plastering over the pipework
in order to make the nut accessible for future
adjustments.
After choosing the site for the shower, use the
backplate as a template and mark the two fixing
holes (fig.12).
Drill and plug to suit the fixing screws supplied.
(The wall plugs provided are suitable for most brick
walls – use an appropriate masonry drill, but if the
wall is plasterboard or a soft building block, you
must use suitable wall plugs and an appropriate
drill bit.)
Fig.7
Fig.9
Fig.8
Fitting the shower to the wall
FITTING THE SHOWER TO THE WALL
Fitting the shower to the wall
FITTING THE SHOWER TO THE WALL
W-005-A
WARNING!
Check there are no hidden cables or
pipes before drilling holes for wall
plugs. Use great care when using power
tools near water. The use of a residual
current device (RCD) is recommended.
