Triton mof001 User Manual

10
Optional chip
collector accessory
An optional Chip
Collector is available
for effective chip
extraction alongside
the cut zone. It can be
connected to any
38mm (1½") O.D. hose.
This accessory kit (part no. TGA150) also
includes 7 Template Guide Bushes and Table
Winder, and is available through your local
Triton retailer.

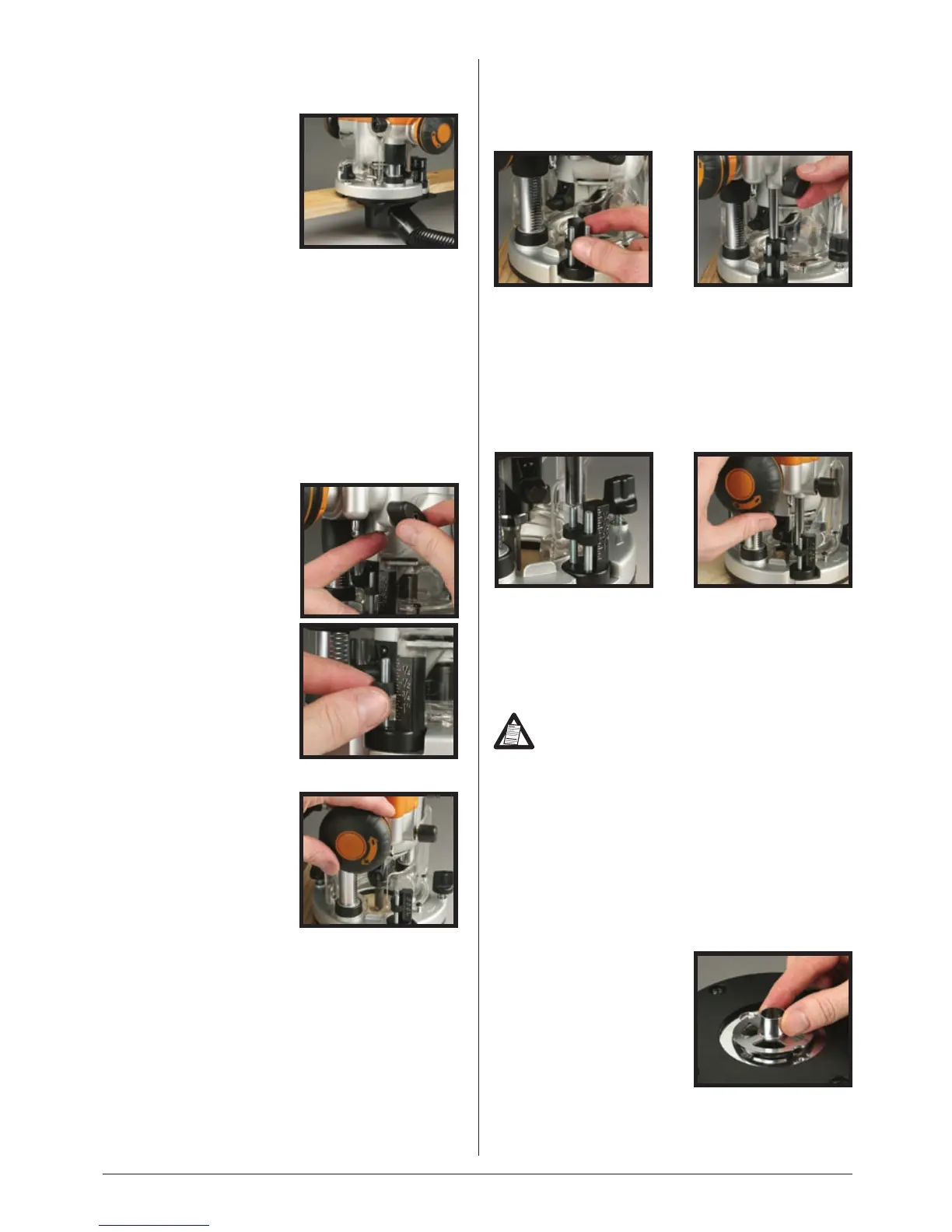

DEPTH STOP & TURRET
The Depth Stop (24) and Turret (6) are used
in the free plunge mode to accurately preset
up to three different cut depths.
1. Loosen the Depth
Stop Lock knob (7)
and retract the depth
stop (24) fully, then
re-tighten.
2. Set the Turret
Thumbwheel(s) to
the desired plunge
depth(s) using
the scales on the
turret post.
3. Fit the cutter,
and adjust the plunge
depth until the cutter
tip is level with
your “zero datum”
(eg. router base or
Router Table surface).
4. Rotate the turret until the fixed turret
post is in line with the depth stop. Release
the stop, allowing it to spring onto the
post, then re-tighten.
5. Rotate the turret again until the bolt of
the chosen thumbwheel is in
line with the stop. Plunge until the hollow
depth stop locates over the bolt and hits
the thumbwheel. Engage the plunge lock
lever (15).
The plunge depth must be reduced before
the turret can be rotated to another
stop position.
The fixed turret stop can be used as a
third predetermined depth stop.
This is achieved by setting all three stops by
sight, rather than using the turret scale.
OPTIONAL TEMPLATE
GUIDE BUSHES
An optional guide bush adaptor with seven
different template guide bushes are available
for template routing.
This accessory kit
(part no.TGA150)
also includes a Chip
Collector and Table
Winder, and is available
through your local
Triton retailer.
