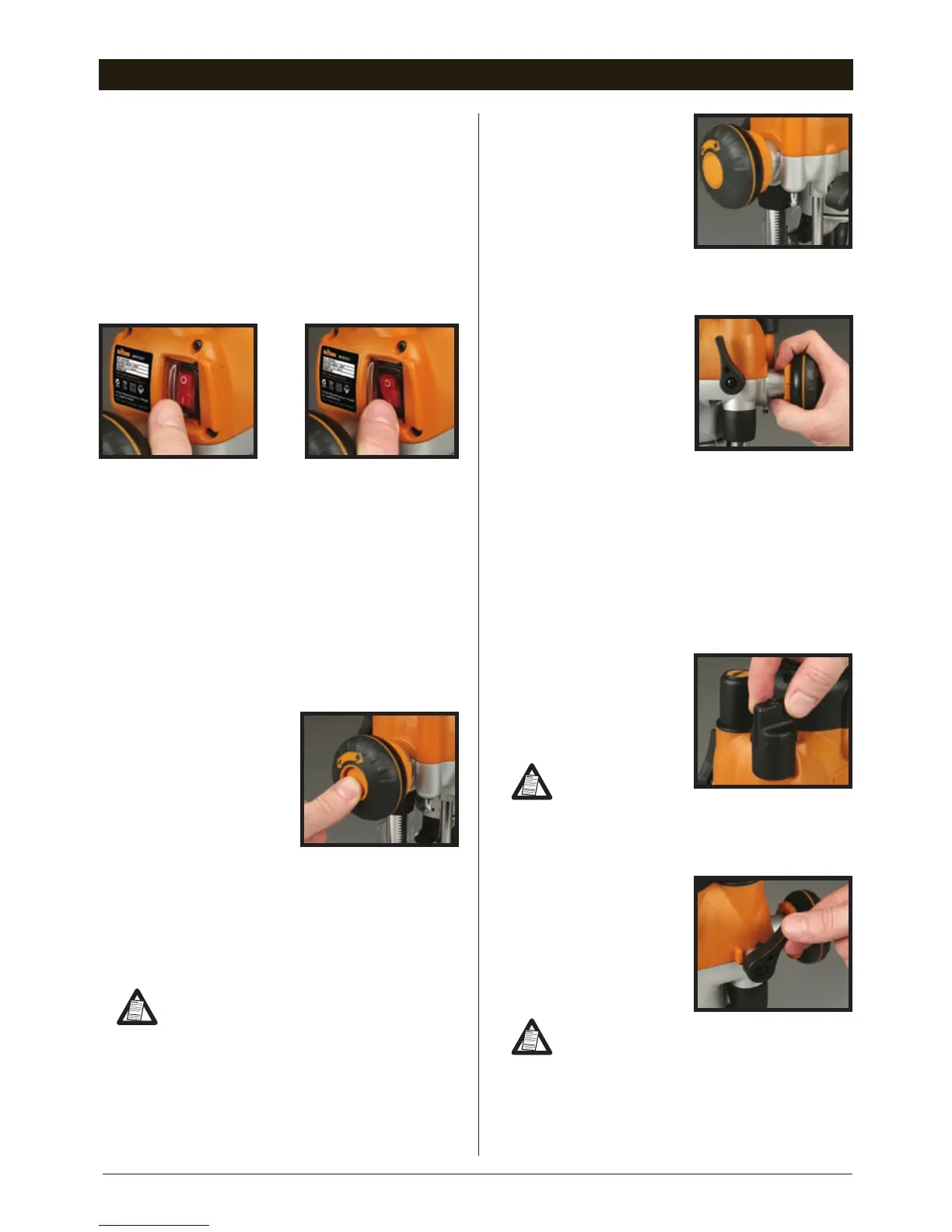

POWER SWITCH
When the router is connected to power the
switch (12) will illuminate (in both “on” and
“off” positions).
The retracting switch shutter (11) prevents
accidental starting of the router. It must be
retracted before the router can be switched
on. The cover will remain open until the
router is switched off.
CUT DEPTH ADJUSTMENT
There are three methods of cut depth
adjustment, depending on the accuracy
and control required: Free Plunge, for
conventional & fast depth adjustment; Handle
Winder Plunge, for controlled & fast
adjustment; and Micro Adjuster, for precise
depth setting throughout the full plunge range.
Free Plunge
1. Free plunge depth
adjustments can be
made with the Plunge
Mode Selector button
(2) engaged. Press
it deep inside the
handle until it engages
inward.
2. Release the Plunge Lock Lever (15). Push
the body of the router until the desired
depth is reached. Re-lock the plunge lock
lever.
The position of the plunge lock lever
can be altered by removing its
retaining screw and repositioning the lever
on the bolt. Re-tighten firmly.
Handle winder plunge
1. Handle Winder Plunge depth adjustments
can be made when the plunge mode
selector button is
flush with the handle.
If engaged, press the
Plunge Mode
Selector button (2)
inward and allow it to
spring out flush with
the handle. Ensure the Plunge Lock Lever
(15) is unlocked.
2. Pull the Winder
Handle Clutch Ring
(1) into the handle
then turn the handle
to raise or lower the
cutter. Release the ring
at the required depth,
allowing it to “pop out”, locking the cutter
at the desired depth.
3. Lock the plunge lever, particularly for
heavy cuts.
Micro adjuster
For use in the Handle Winder Plunge
Mode only.
1. Disengage the Plunge
Mode Selector button
(2), and ensure that
the plunge lock lever
(15) is unlocked.
If the micro
winder (3) is
turned with the plunge lock lever engaged
the micro winder will start clicking and the
cut depth will remain unchanged.
2. Turn the Micro
Winder Adjuster
Knob (3) clockwise
to increase cut depth
and anti-clockwise to
reduce cut depth.
When the end of the depth
adjustment range is reached the
micro winder will offer greater resistance
to turn and will begin to “click”.
3. Lock the plunge lever, particularly for heavy
cuts.
