Triton mof001 User Manual

11

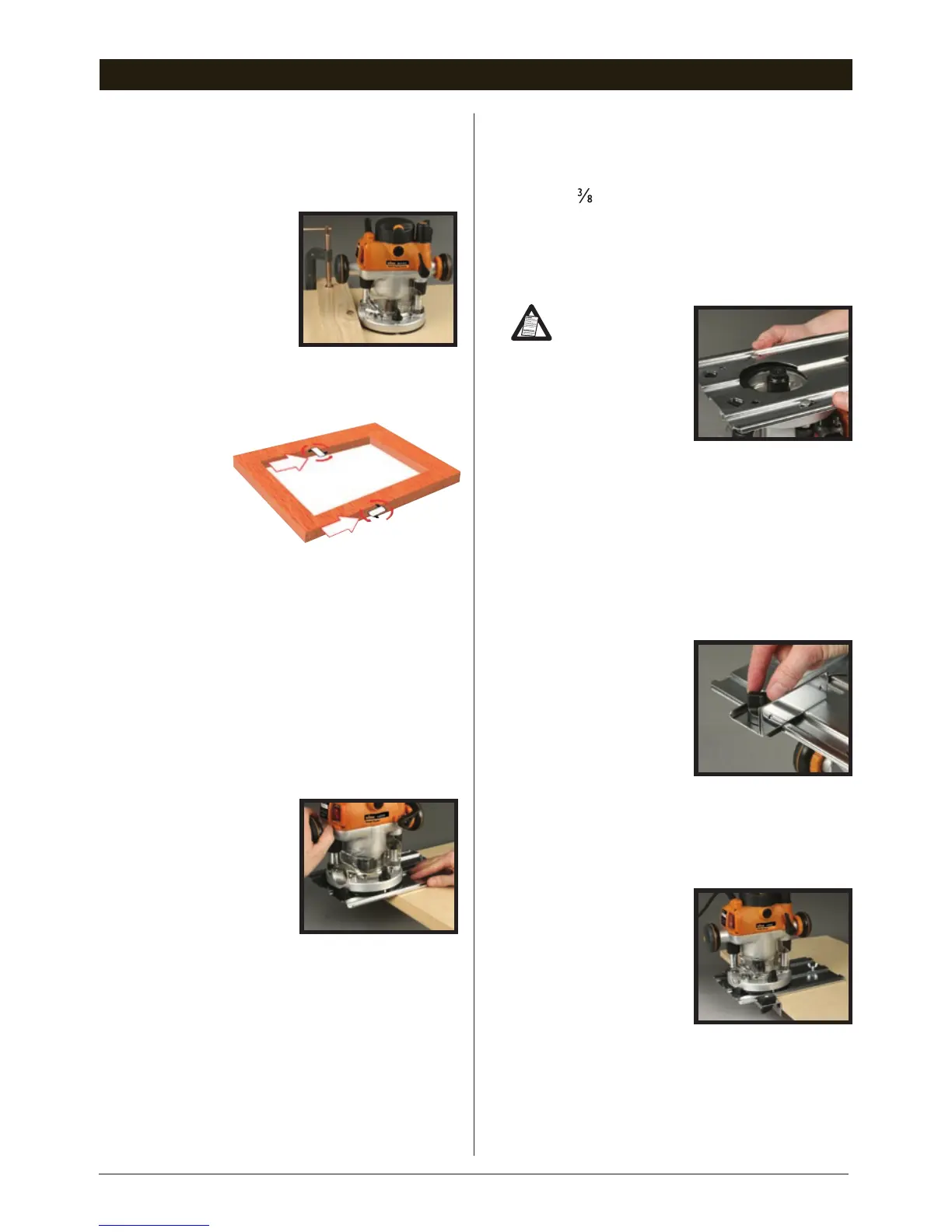

• Always use both hands to control the
router and ensure your workpiece is
securely clamped to prevent any
movement during operation.
• Never operate the
router free-hand
without some form
of guidance. Guidance
can be provided by
a bearing guided
cutter, the fence guide
supplied or a straight edge (eg. a batten
clamped to your work as shown above).
• Always feed against
the direction
of cutter
rotation
(clockwise, as
indicated by the
arrows on the
router base).
• Do not operate the router upside down
unless securely mounted in a well guarded
router table (eg. Triton brand)
THE BASE ASSEMBLY
The Extended Baseplate (23) supplied with
the Triton Router provides greater stability
when using bearing guided cutters along
an edge.
Place one hand on the
long end of the base,
holding it down onto
your work, and grip the
router handle, furthest
away, with your other
hand.
Extended Baseplate and Fence
1. To fit the extended baseplate (23) loosen
the mounting knobs (16) approximately
10mm ( ") up the coach bolt.
2. Position the extended baseplate onto the
base of the router with the heads of the
coach bolts beneath the keyhole slots in
the baseplate.
The router can
be mounted
with the long
overhang to the
left or to the right
depending on where
the support is
required. For edge work, locate the
power switch on the short overhang side
of the base.
3. Push the mounting knobs (16) until the
bolt heads locate into the keyholes, then
slide the extended baseplate until the bolts
locate against the ends of the keyhole
slots. Tighten the knobs firmly.
4. To fit the fence (19)
loosen the fence
knobs a few turns
and slide the fence
along the tracks on
the base. Lock at the
desired setting by
tightening both fence knobs.
When routing trenches some distance in
from an edge, fit the fence to the long end
of the base.
When performing
edge work with a
non-bearing guided
cutter fit the fence
to the short end of
the base.
If using a very large
diameter cutter it may be necessary to fix
wooden blocks to the fence faces via the
screw holes, to ensure the cutter does not
contact the fence.
HAND-HELD OPERATION
Hand Held Operations
