Triton T80Z User Manual

10
The backplate has removable top trims (top left
and top right) that may be used for pipe entry
and two additional sections (top left and top
right) that may ONLY be used as a ‘cut out’ for
top electrical cable entry (fig.9).
The showers bottom trimplate has also been
designed with four ‘cut out’ bottom/side water
pipe access points and two ‘cut out’ electrical
cable access points (fig.9).
• Decide which entry points are to be used
for the water pipe entry and electrical cable
entry.
• Once chosen, remove either the appropriate
trim, or if ‘cut outs’ have been chosen,
remove them using a junior hacksaw, file or
appropriate knife.
Fitting Procedure - using the template
NOTE: The fitting template should be used when
existing pipework or electrical cable connections
are not available - an example of which would
be a ‘new build’ house.
• Afterchoosingthesitefortheshower,use
the fitting template supplied to mark the
two fixing holes and establish pipe and
electric entry points.
Fitting Procedure - replacing an existing
shower
• Turnoffwatersupplyeitheratthemains
stopvalve or the isolating stopvalve.
• Temporarilyconnectthemainswatersupply
to the inlet of the shower using a 15mm x
15mm compression fitting.
• Usethebackplateasatemplatemakingsure
it is level and mark the fixing holes (fig.10).
The top and one of the bottom two fixing
holes should be sufficient to hold the shower.

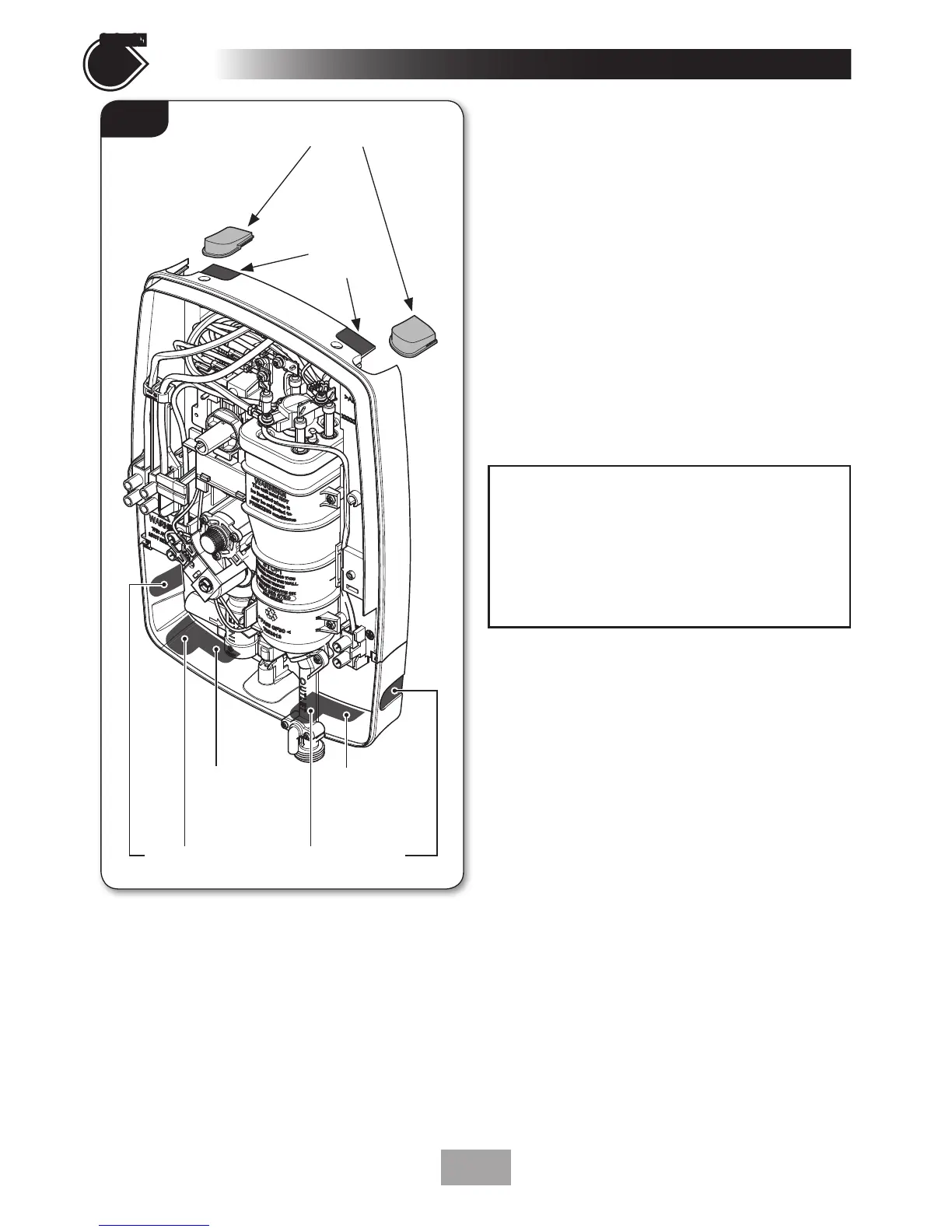

Fig.9
Top pipe trims
7
Continued
SECTION
PLEASE NOTE: NONE of the 'cut outs' are
designed to 'snap out'. ONLY a junior hacksaw, file,
or suitable knife should be used. Excessive damage
to the backplate or lower trimplate outside the
prescribed areas marked in (fig.9) may invalidate
product specifications and warranty.
Top cable
“Cut out”
entry points
“Cut out” Pipe entry points - on trimplate
“Cut out”
Cable
entry point
“Cut out”
Cable
entry point

Triton T80Z Specifications

General

Type	Electric Shower
Finish	White
Start/Stop Button	Yes
Cable Entry Points	Bottom
Power Ratings	8.5 kW
