Installation - FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES
ELECTRICAL INSTALLATION
IMPORTANT: Switch off the electricity supply at
the mains before proceeding.
• ThesupplycableMUST be secured either by
routing through conduit, in trunking, or by
embedding in the wall, in accordance with
IEE regulations.
NOTE: Conduit entry can only be from rear.
Installation - ELECTRICAL INSTALLATION
NOTE: Deviations from the designated entry
points will invalidate product approvals. The
cable entry points are listed on page 3.
• Sealaroundrearentrycabletopreventwater
ingress into the wall.
FIT TO THE WALL & CONNECT THE
SHOWER SUPPLIES

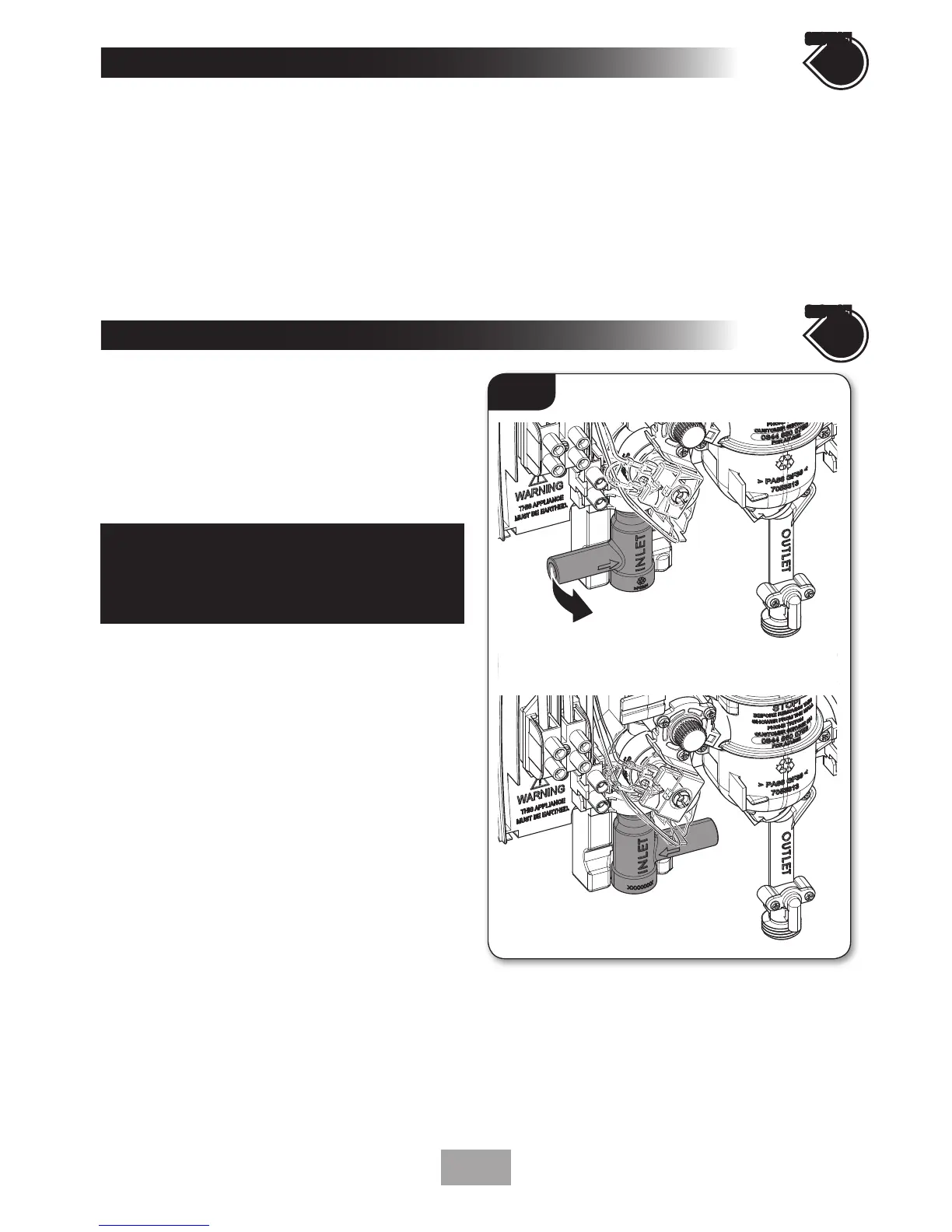

• Thewaterinlethasbeendesignedto
allow left or right fitting - (fig.8) decide
the inlet direction and then turn the inlet
either left or right.
6
check list
7
check list
SECTION
SECTION
Fig.8
Turn the inlet 180°
for right entry fitting
IMPORTANT!
The water inlet MUST ONLY be used in
the ‘Left’ or ‘Right’ entry position.

Triton T80Z Specifications

General

Type	Electric Shower
Finish	White
Start/Stop Button	Yes
Cable Entry Points	Bottom
Power Ratings	8.5 kW
