Triton T80Z User Manual

6
Installation - SITING OF THE SHOWER
Isolating
stopvalve
Mains
water
supply
Shower
unit
Mains electric supply
(via double pole switch)
Double
pole
isolating
switch
Separate permanently
connected supply
from consumer unit

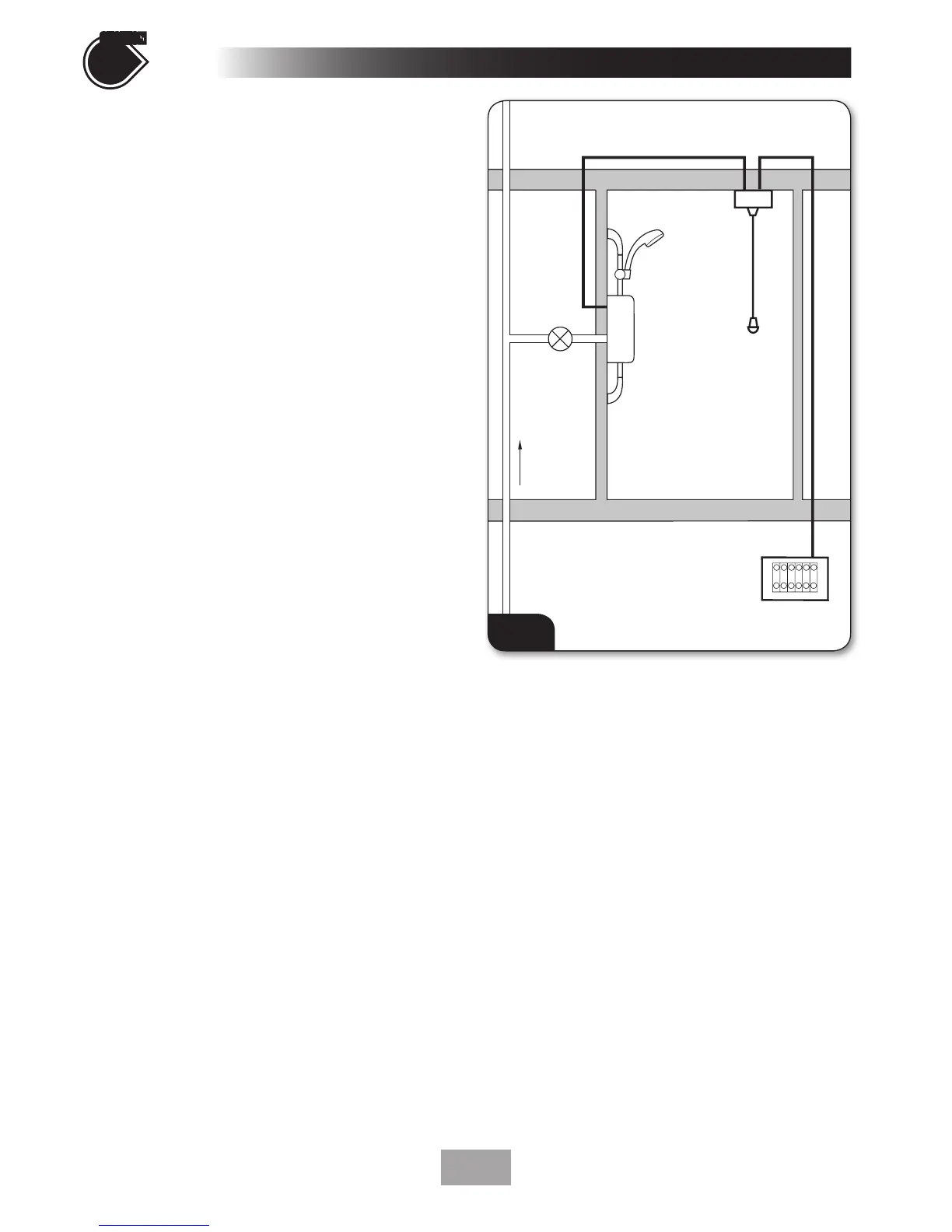

Diagrammatic view (not to scale)
SITING OF THE SHOWER
The installation must be in accordance with
Water Regulations/Bylaws - see page 2 for
water specifications
• Ifitisintendedtooperatetheshowerat
pressures above the maximum or below the
minimum stated, contact Customer Service
for advice.
• Ifthestatedflowratesarenotavailable,
it may not be possible to achieve optimum
performance from the unit throughout
the year.
• Duringperiodsofhighambienttemperatures
it may be necessary to select the economy
power setting to achieve your preferred
shower temperature.
NOTE: The T80z Eco flow rate is limited to 6 litres
per minute, during the warmer months it may be
necessary to select the economy power setting.
Fig.5 shows a typical system layout.
NOTE: The control knobs are an integral part of
the cover. Do not attempt to remove them.
• Liftthecoverfromthebackplateandremove
the trimplate (page 21 - item 3 & 4)
• Referto(fig.6) for the correct siting of
the shower. Position the unit where it will
NOT be in direct contact with water from
the showerhead. Position the shower unit
vertically.
• Allowenoughroombetweentheceilingand
the shower to access the cover top screws.
• Markoutentrypointsandroutingofthe
water and electric supplies into the shower.
Fig.5
4
check list
SECTION

Triton T80Z Specifications

General

Type	Electric Shower
Finish	White
Start/Stop Button	Yes
Cable Entry Points	Bottom
Power Ratings	8.5 kW
