Table Mounted Operation / Maintenance
• Fitting and operating this router on a Router Table should be
carried out in accordance with the literature supplied with your
Router Table
• While this product was designed for efficient and convenient
operation on most router tables, it is particularly suited for use
with the Triton Router Table RTA300
• Router adjustments are made easily using the unique features
of this product. When mounted in a compatible table, the Table
Height Winder (24) will control the cut height when connected
to the Table Height Winder Connection Point (25) through a hole
in the router table surface

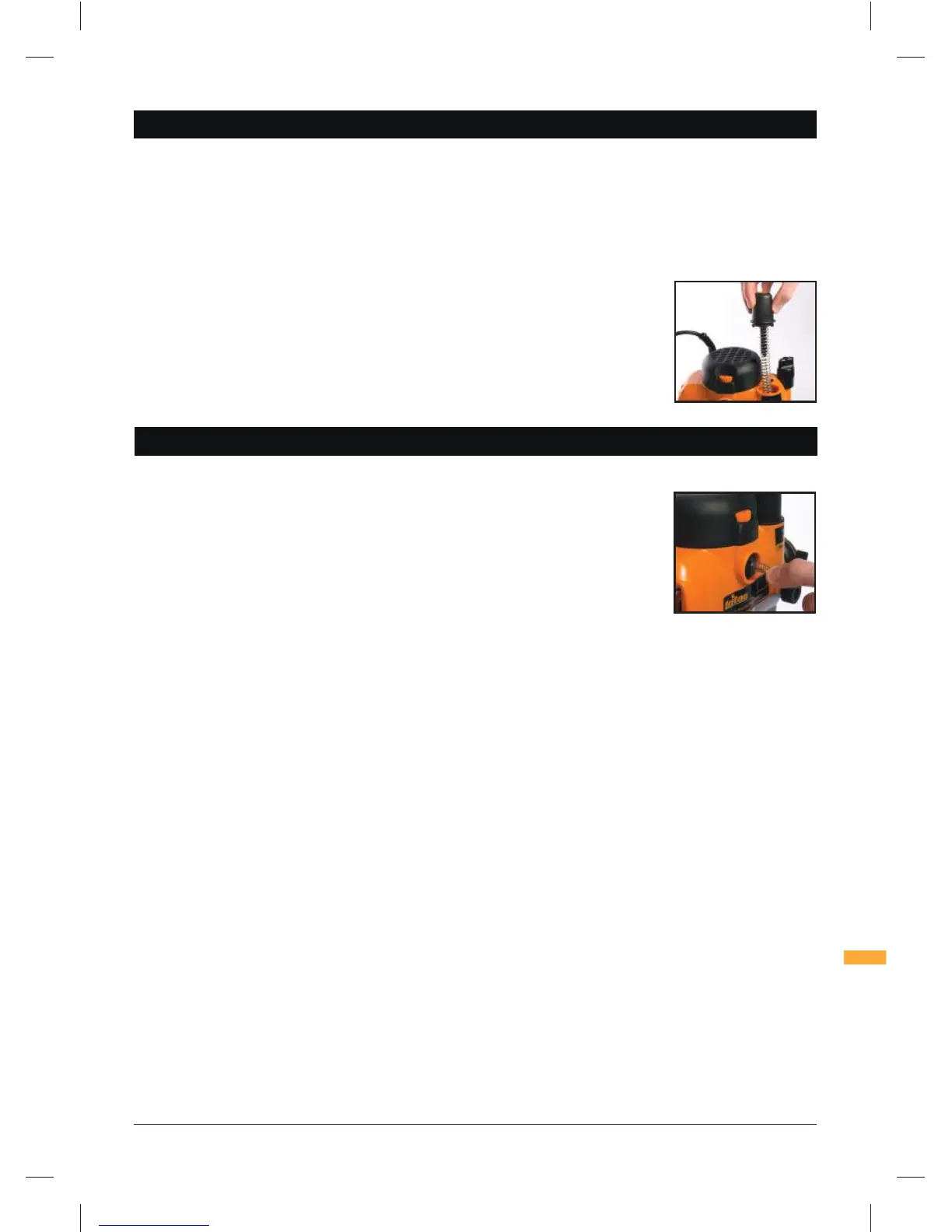

REMOVING THE PLUNGE SPRING
IMPORTANT: You MUST remove the plunge spring before fitting
WARNING: Always disconnect from the power supply before
carrying out any maintenance/cleaning.
• Any damage to the router should be repaired and carefully
inspected before use by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result
in a risk of injury
• Servicing should only be carried out by authorised Triton
Repair Centres using original Triton replacement parts. Follow
instructions carefully and refer to ‘Troubleshooting’ for problem
identification and advice. Use of unauthorised or faulty parts
may create a risk of electric shock or injury
• Triton Precision Tools will not be responsible for any damage
or injury caused by unauthorised repair of the router or by
mishandling of the tool
CLEANING
• Keep your tool clean at all times. Dirt and dust will cause
internal parts to wear quickly, and shorten the machine’s
service life. Clean the body of your machine with a soft brush,
or dry cloth. If available, use clean, dry, compressed air to blow
through the ventilation holes
TABLE MOUNTED OPERATION
MAINTENANCE
this router into a router table:
1. Set the router at the top of its plunge range and engage the
Plunge Lock Lever (10)
2. Loosen the small screw next to the Plunge Spring Access Cap
(11)
3. Holding the plunge spring access cap firmly (so that the spring
will not shoot upwards when released), twist the cap anti-
clockwise to remove it
4. Remove the spring and store in a
safe place
5. Replace the plunge spring cap
and re-tighten the screw
NOTE: Ensure the plunge spring
is refitted before using the router
free-hand.
BRUSH REPLACEMENT
The carbon brushes are a
consumable item which should be
inspected periodically and replaced
when worn. Failure to do so may
result in damage to the motor.
1. With the router disconnected
from power, unscrew the Brush
Caps (2) located on the front and
rear of the motor
2. Remove the brushes by pulling carefully on the protruding
springs
3. If either of the brushes is worn to less than 6mm long, they
must both be replaced using genuine Triton replacement
brushes - available from Authorised Triton Repair Centres
POWER CORD REPLACEMENT
If the supply cord needs replacing, the task must be carried out by
the manufacturer, the manufacturer’s agent, or an authorised Triton
service centre, in order to avoid a safety hazard.
STORAGE
• Store this tool carefully in a secure, dry place out of the reach
of children
DISPOSAL
Always adhere to national regulations when disposing of power
tools that are no longer functional and are not viable for repair.
• Do not dispose of power tools, or other waste electrical and
electronic equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on
the correct way to dispose of power tools
330165_Z1MANPRO1(with Japanese).indd 9 21/07/2014 09:49
