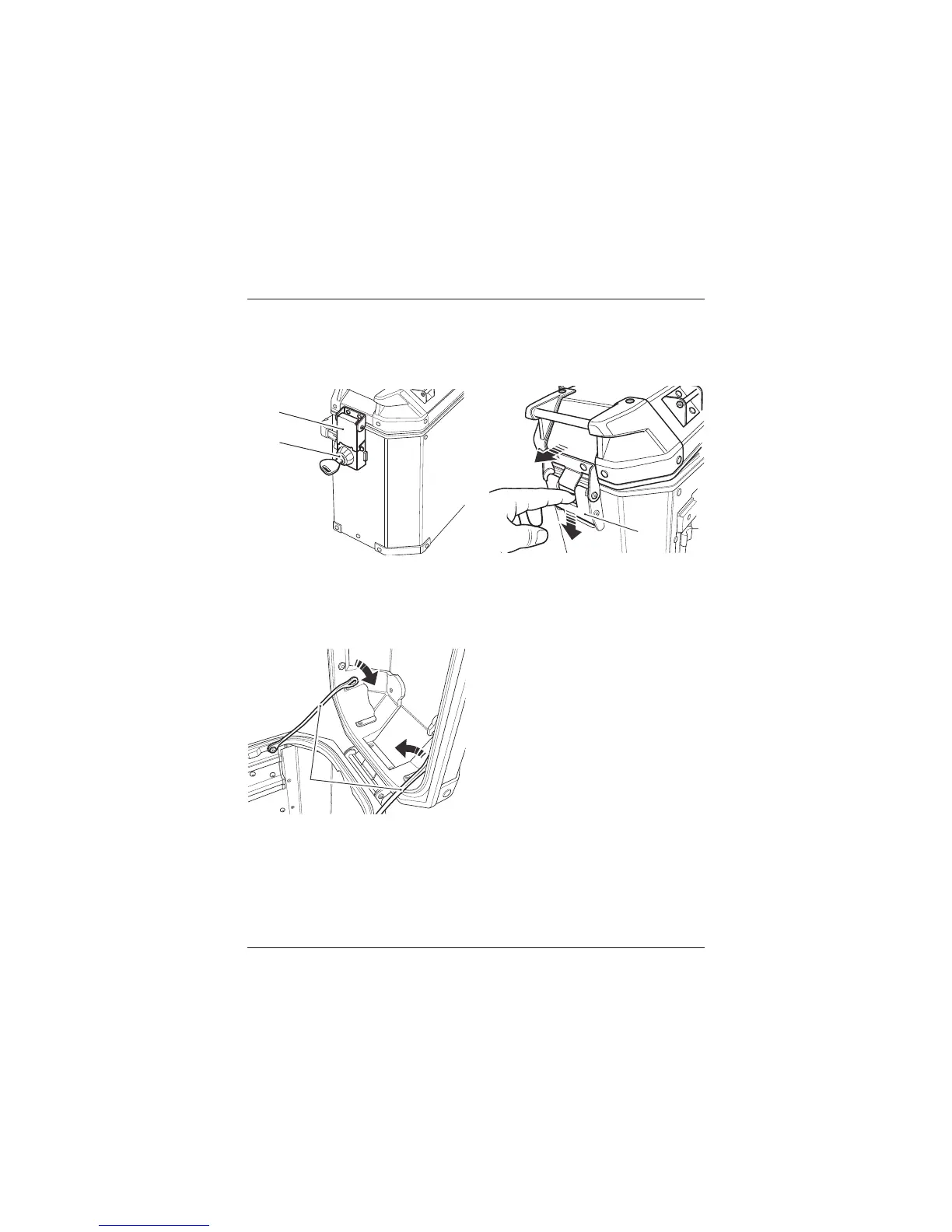

Pannier Operation
To unlock and open the pannier, insert
the key and turn it to the UNLOCK
position, then release the pannier lid
latch. The lid can then be opened.
1. Lock barrel - unlock position
2. Pannier lid latch
The lid can also be removed from the
pannier. To remove the lid, detach the
retaining straps as shown below.
1. Retaining straps
Press downwards on the quick release
mechanism for the pannier lid hinge.
Slide the lid down and to the rear to
release the pannier lid hinge. The lid can
now be removed from the pannier.
1. Pannier lid hinge quick release
mechanism
To install the pannier lid, press
downwards on the quick release
mechanism and relocate the pannier lid
hinge. Release the quick release
mechanism, ensuring that the hinge is
correctly engaged. Attach the retaining
straps to the pannier lid.
