Parts Identification
16

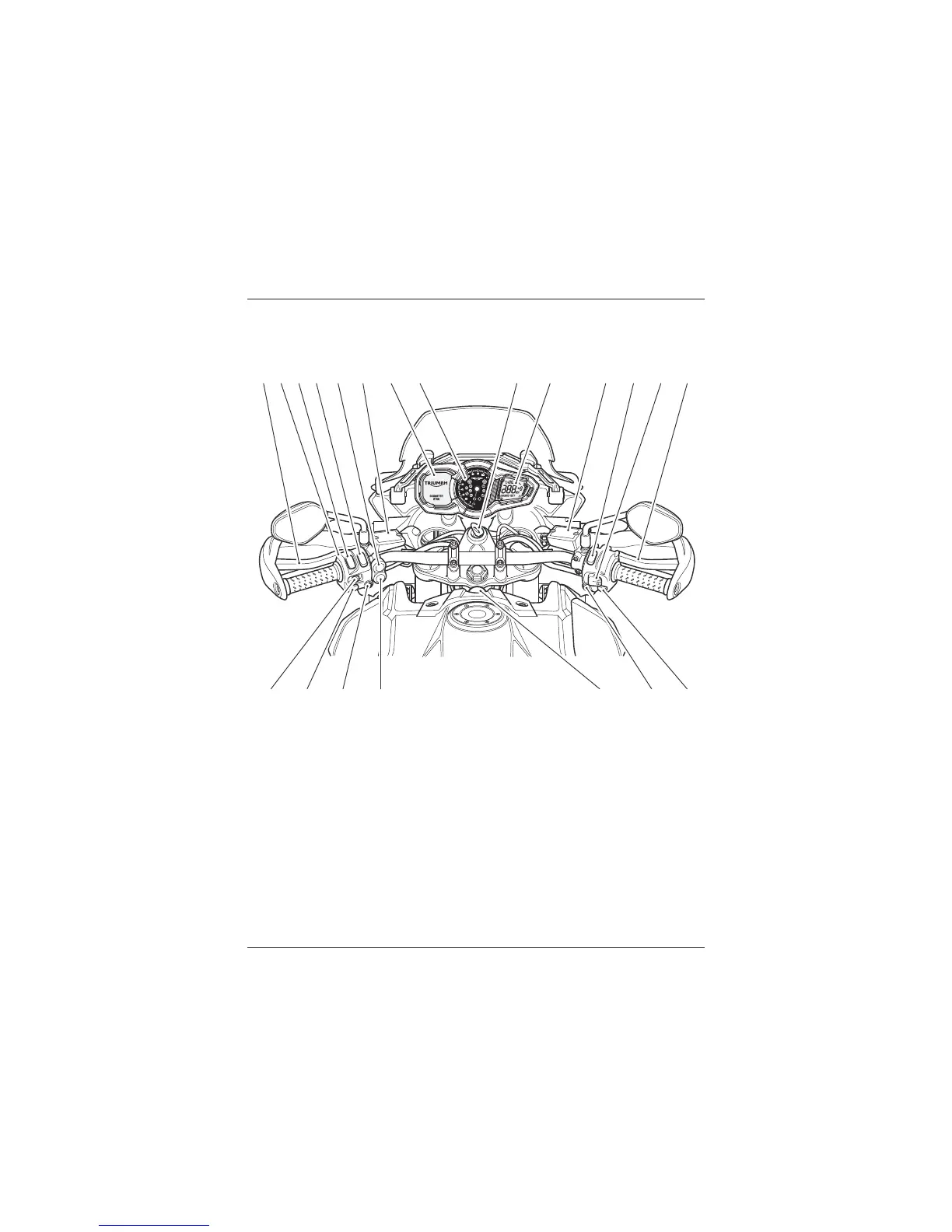

Parts Identification (Continued)
1. Clutch lever
2. Instrument select button
3. Headlight dip switch
4. Instrument scroll button
5. Fog lights switch (if fitted)
6. Clutch fluid reservoir
7. Multifunction display screen
8. Tachometer
9. Ignition switch
10. Motorcycle status display screen
11. Front brake fluid reservoir
12. Engine stop switch
13. Cruise control adjust button
(if fitted)
14. Front brake lever
15. Starter button
16. Hazard warning lights button
17. Electrical accessory socket
18. Heated grips switch (if fitted)
19. Mode button
20. Horn button
21. Direction indicator switch
