Maintenance and Adjustment
Headlight Adjustment
• Horizontal adjustment of the
headlight beam is controlled by the
screw in the rim of the headlight.
Turn the screw clockwise to move
the beam to the left and
counter-clockwise to move the beam
to the right.
• Vertical adjustment of the headlight
beam is controlled by loosening the
headlight assembly mounting bolts
and altering the position of the
headlight assembly.
• Re-tighten the fasteners after
adjustment.
Note:
• Changes made to the horizontal
adjusters will marginally change
the vertical setting of the headlight
beam. Always allow for additional
adjustment to compensate for this
factor.
Headlight/Position Light Bulb
Replacement

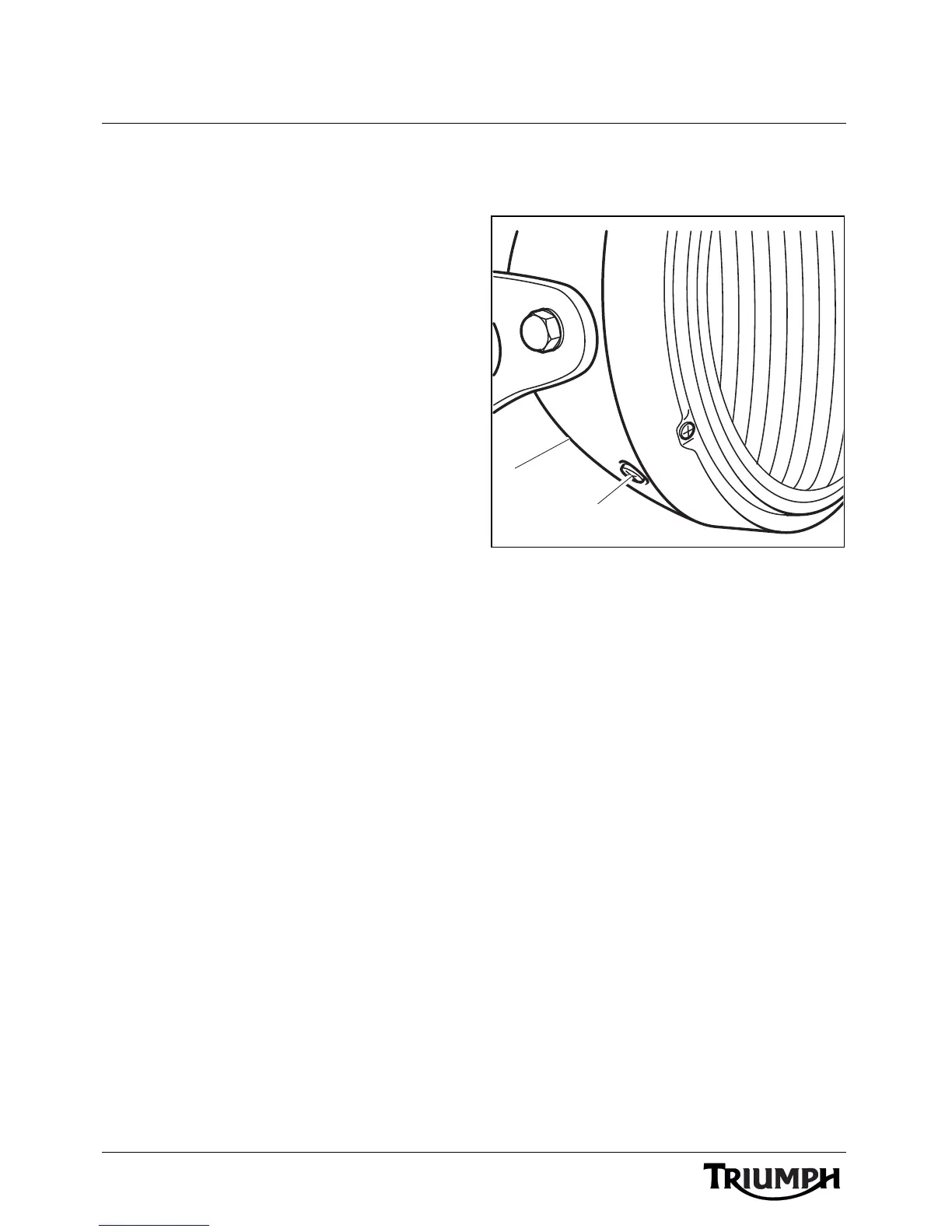

1. Headlight rim screws (1 of 2)
2. Headlight bowl
• Disconnect the battery, negative
(black) lead first.
• Remove the headlight rim screws.
• Detach the headlight and rim
assembly from the headlight bowl.
• While supporting the light unit,
disconnect the multi-pin electrical
connector from the headlight bulb
and the two spade connectors from
the position light.
• Remove the rubber dust cover.
• Unhook the headlight bulb's wire
retainer.
• The headlight bulb can now be
removed.
• To remove the position light bulb,
detach the bulb holder from the
headlight body and release the bulb.
T908048
1
2
