Maintenance and Adjustment
Fuses

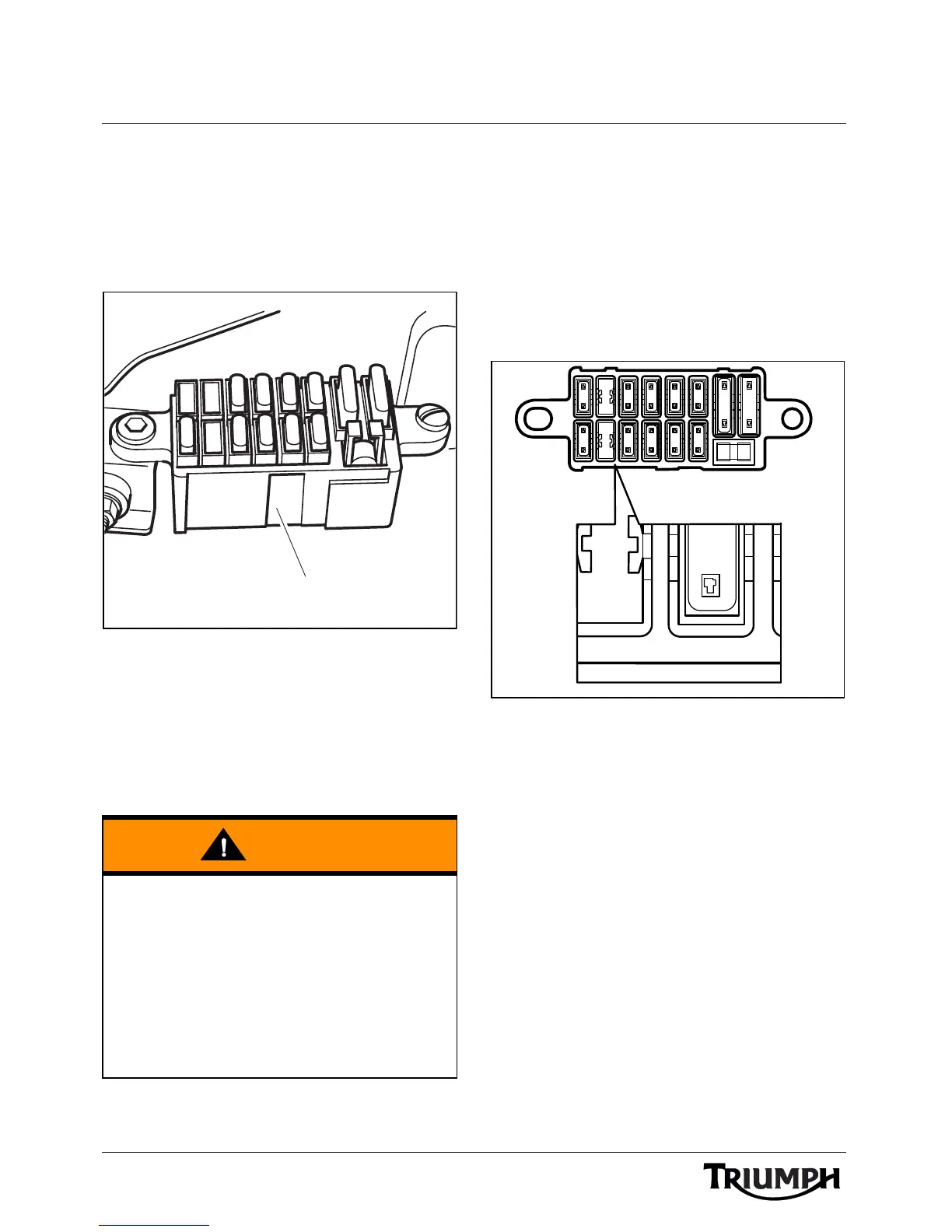

Fuse Location
Fuses are arranged in the fuse box located
behind the right hand side cover.
1. F u s e b ox
Fuse Replacement
If a fuse fails during operation, inspect the
electrical system to determine the cause, and
then replace it with a new fuse of the same
(correct) current rating.
Fuse Identification
The fuses can be identified by a number
moulded into the fusebox housing, adjacent
to each fuse, as shown below. These numbers
correspond to the numbers given in the table
overleaf. Fuses without an identification
number are spare, and should be replaced if
used.
Fuse Identification
Warning
Always replace blown fuses with new ones
of the correct current rating (as specified
on the fuse box cover) and never use a
fuse of higher rating.
Use of an incorrectly rated fuse could lead
to an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
T908046
1
30
30
520
10
10
10
15
10
10
5
10
1
23
4
5
6
7
8
910
11
30
1
2
