Triumph Scrambler - Brake;Tail Light;License Plate Light; Brake;Tail Light; Bulb Replacement

101
Maintenance and Adjustment
• Installation is the reversal of removal.

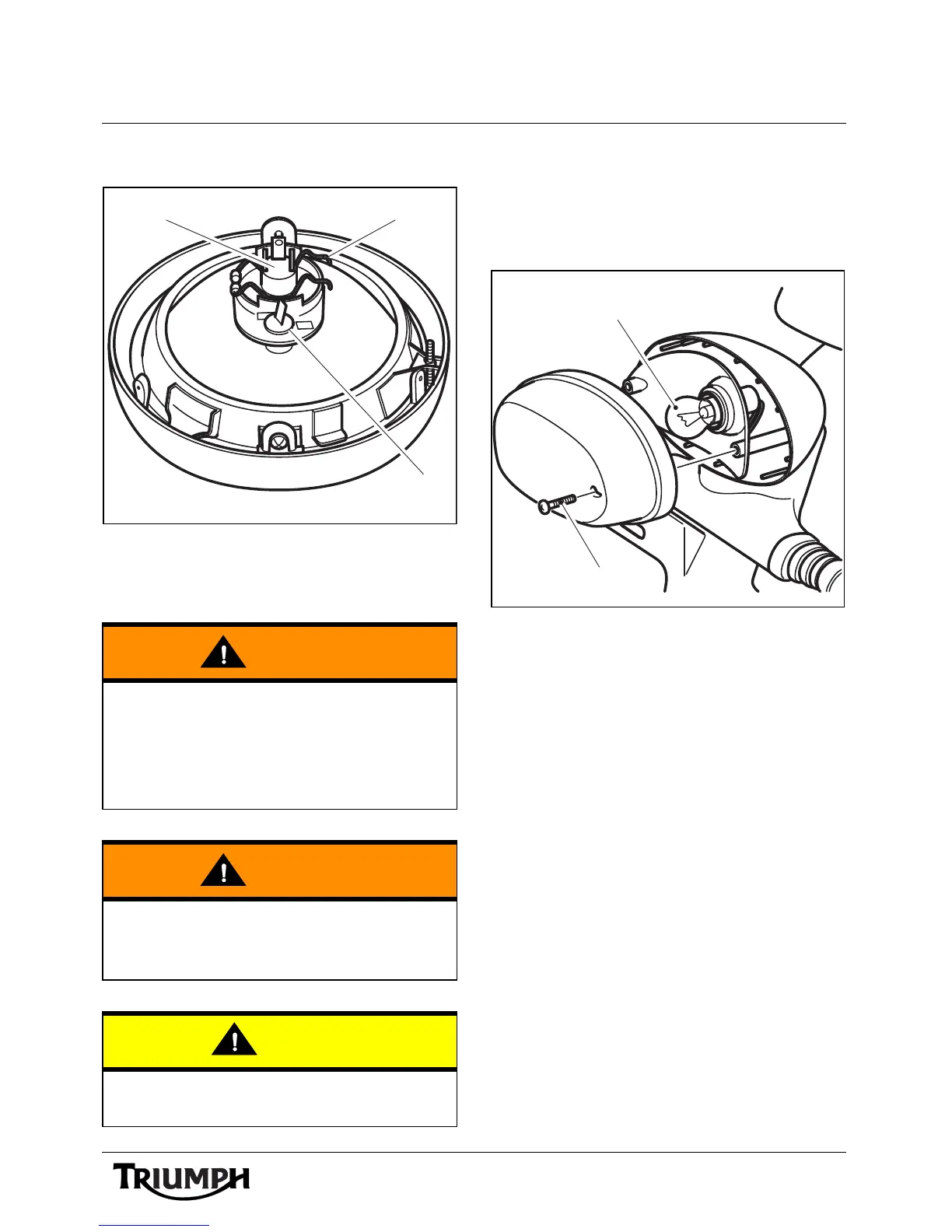

1. Wire retainer
2. Headlight bulb
3. Position light
Brake/Tail Light/License
Plate Light
Brake/Tail Light
1. Brake/tail light lens screws
2. Bulb
Bulb Replacement
• Remove the screws securing the
brake/tail light lens.
• Remove the lens.
• The bulb is a bayonet type. To
remove the bulb, gently press
inwards and twist counter-clockwise.
• Installation is the reversal of removal.
Warning
Do not reconnect the battery until the
assembly process has been completed.
Premature battery reconnection could
result in ignition of the battery gases
causing risk of injury.
Warning
The bulb becomes hot during use. Always
allow sufficient time for the bulb to cool
before handling.
Caution
When reconnecting the battery, connect
the positive (red) lead first.
T908049
1
2
3
T908050
2
1
