Triumph Scrambler - Inspection; Adjustment

73
Maintenance and Adjustment

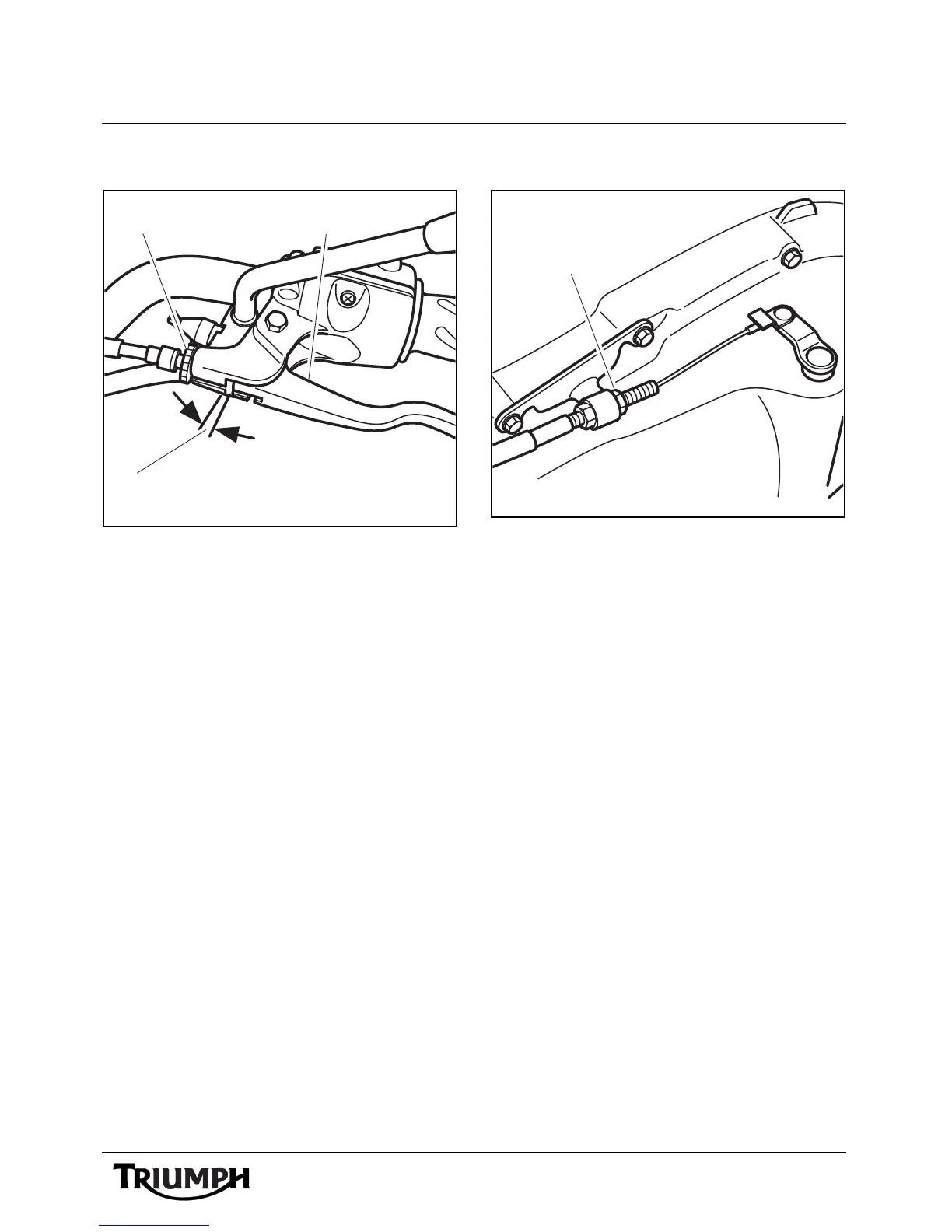

Inspection
1. Lever
2. Adjuster (lever end)
3. 0.08 - 0.12 in (2 - 3 mm)
• Check that there is 0.08 - 0.12 in
(2 - 3 mm) of clutch lever free play
at the point shown in the diagram
above.
• If there is an incorrect amount of
free play, adjustments must be
made.
Adjustment
1. Adjuster (engine end)
Note:
• Knurled locknuts are fitted to
Thruxton and Bonneville T100
models only. Bonneville,
Bonneville SE and Scrambler
models have a ratchet type
adjuster.
• Loosen the knurled locknut at the
lever end of the clutch cable and
turn the adjuster sleeve until the
correct amount of clutch lever free
play is achieved.
• Tighten the knurled locknut at the
clutch lever assembly.
• If the correct adjustment setting
cannot be achieved using the lever
adjuster, use the adjuster at the
engine end of the cable.
• Loosen the adjuster locknut.
T908033
2
3
1
T908034
1
