Maintenance and Adjustment
Rear Brake Fluid Level Inspection
and Adjustment - Scrambler

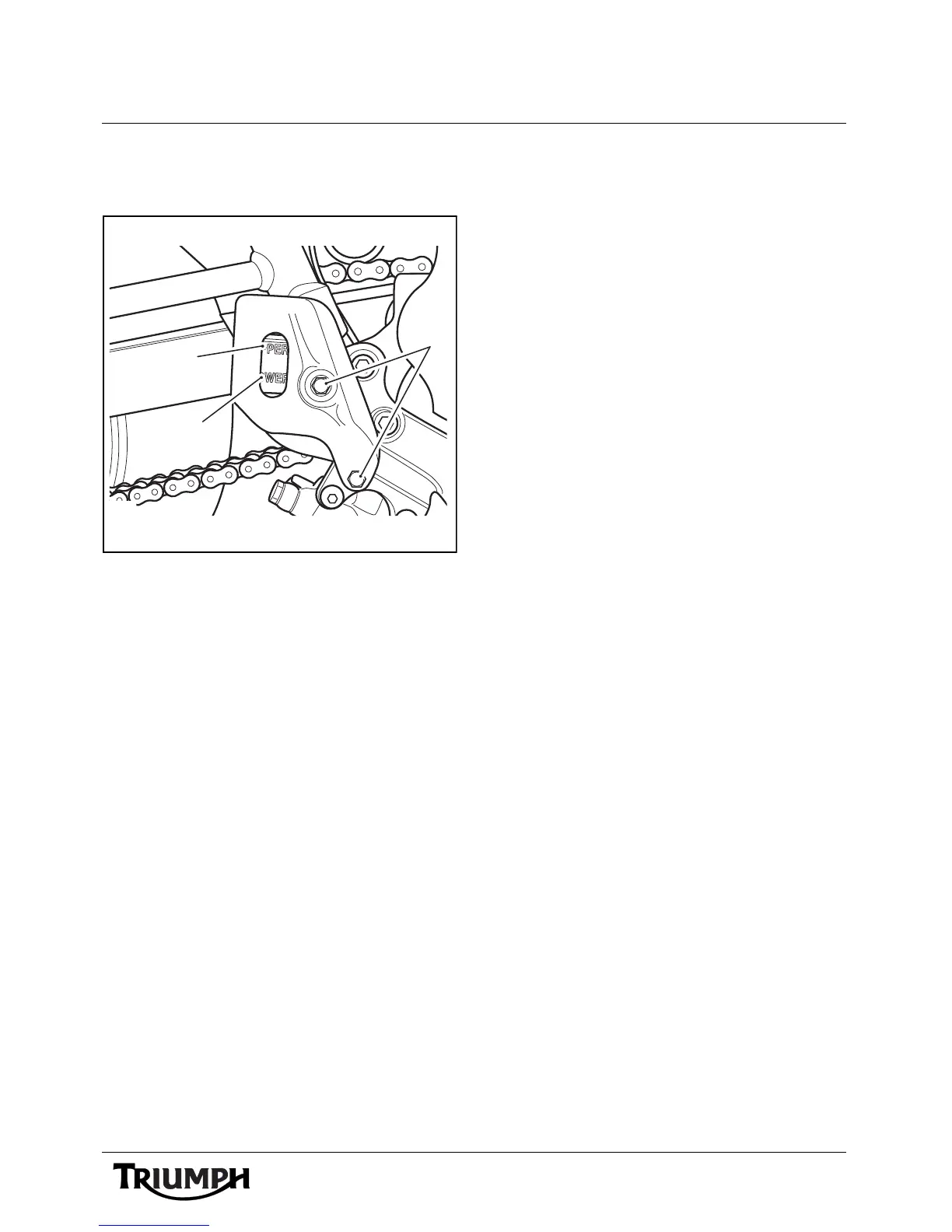

1. Upper level, rear brake
2. Lower level, rear brake
3. Reservoir cover fasteners
• The rear brake fluid level is visible
from the right hand side without
removing the reservoir or cover.
• The brake fluid level in the rear
reservoir must be kept between the
upper and lower level lines, with the
motorcycle supported in an upright
position.
• To adjust the rear brake fluid level,
remove the fasteners securing the
reservoir cover to the frame and
detach the reservoir cover.
• Remove the cap noting the position
of the diaphragm inside.
• Fill the reservoir to the upper level
line using DOT 4 fluid from a sealed
container, with the motorcycle
supported in an upright position.
• Install the reservoir cap ensuring that
the diaphragm seal is correctly
positioned between the cap and
reservoir body.
• Position the reservoir cover to the
frame and secure with the two
fasteners previously removed.
Tighten the fasteners to 62 lb in
(7 Nm).
