Triumph Street Triple RS 2022 User Manual

MAINTENANCE
184
Fuses
Warning
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover) and never use
a fuse of higher rating.
Use of an incorrect fuse could lead to
an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
Note
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown
fuse, use the tables to establish which
fuse has blown.

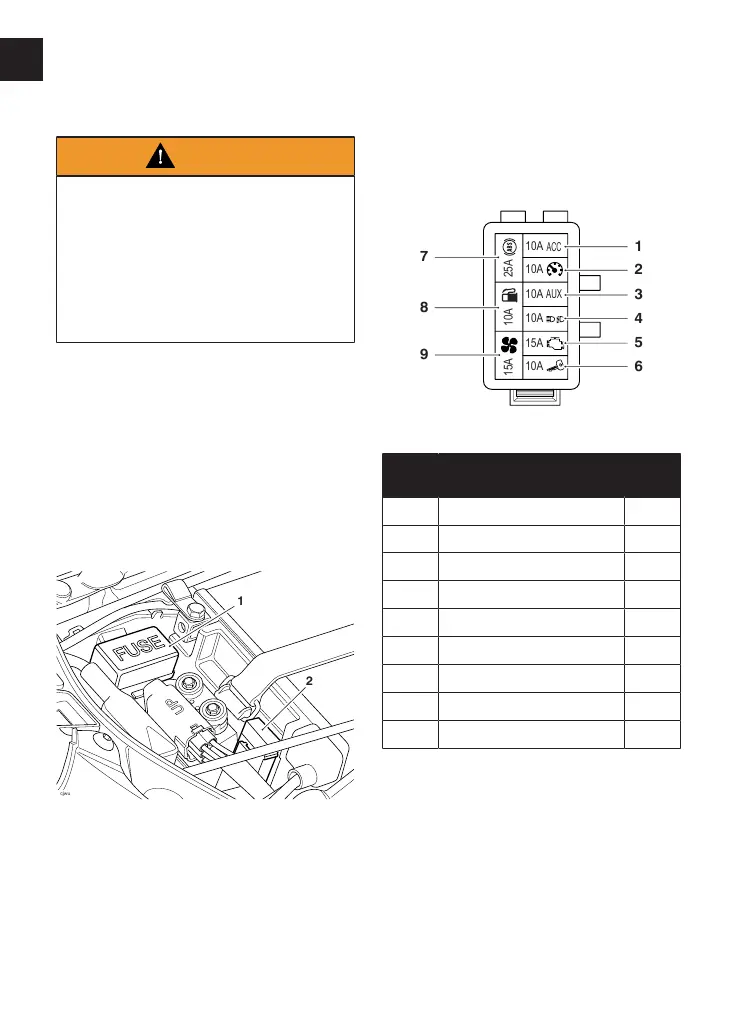

The fuse boxes are located underneath
the rider's seat. To allow access to the
fuse boxes, the rider's seat must be
removed (see page111).
cjwu
2
1
1. Fuse box
2. Main fuse (30 Amp)
Fuse Identification
Spare fuses are located on the inside of
the fuse box cover and should be
replaced if used.
10A
10A
10A
15A
10A
10A15A
25A
10A
AUX
ACC
9
7
8
3
1
2
4
5
6
Fuse Box
Positio
n
Circuit Protected
Rating
(Amps)
1 Accessories 10
2 Instruments 10
3 Auxiliary 10
4 Lighting 10
5 Engine management system 15
6 Ignition 10
7 ABS modulator 25
8 Fuel pump 10
9 Cooling fan 15

Triumph Street Triple RS 2022 Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Displacement	765 cc
Transmission	6-speed
Front Tyre	120/70 ZR17
Rear Tyre	180/55 ZR17
Power	128 hp (95.6 kW) @ 12, 000 rpm
Torque	80 Nm @ 9, 500 rpm
Fuel Capacity	17.4 litres (4.6 US gal)
Dry Weight	166 kg
Wet Weight	189 kg
Front Suspension	Showa 41 mm upside down
Rear Suspension	Ohlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping and preload adjustment
Front Brakes	Twin 310 mm floating discs, Brembo 4-piston radial monobloc calipers
Rear Brakes	Single 220 mm disc, Brembo single piston caliper
Frame	Aluminium beam twin spar
