Triumph Street Triple RS 2022 User Manual

GENERAL INFORMATION
96
Setting the RIDER Mode Options
During setup, TC can be activated or de-
activated in the RIDER mode.
If the RIDER mode is currently selected,
changes to the MAP, ABS and TC
systems will become immediately active.
If the ROAD or TRACK modes are
selected the RIDER settings will not
become active until the RIDER mode is
selected (see page93).
To set the RIDER mode options; with the
motorcycle stationary and in neutral,
turn the ignition to the ON position.
▼ Press and release the MODE button
on the left handlebar switch housing
until RIDER mode is selected.
▼ Press and hold the MODE button
until MAP is shown in the display
screen.
or alternatively:
▼ Press and release the SCROLL button
until SEtUP is shown in the display
screen. Press the SET button to
confirm.
▼ Press and release the SCROLL button
until RIdER is shown in the lower
instrument display, then press the
SET button to confirm.

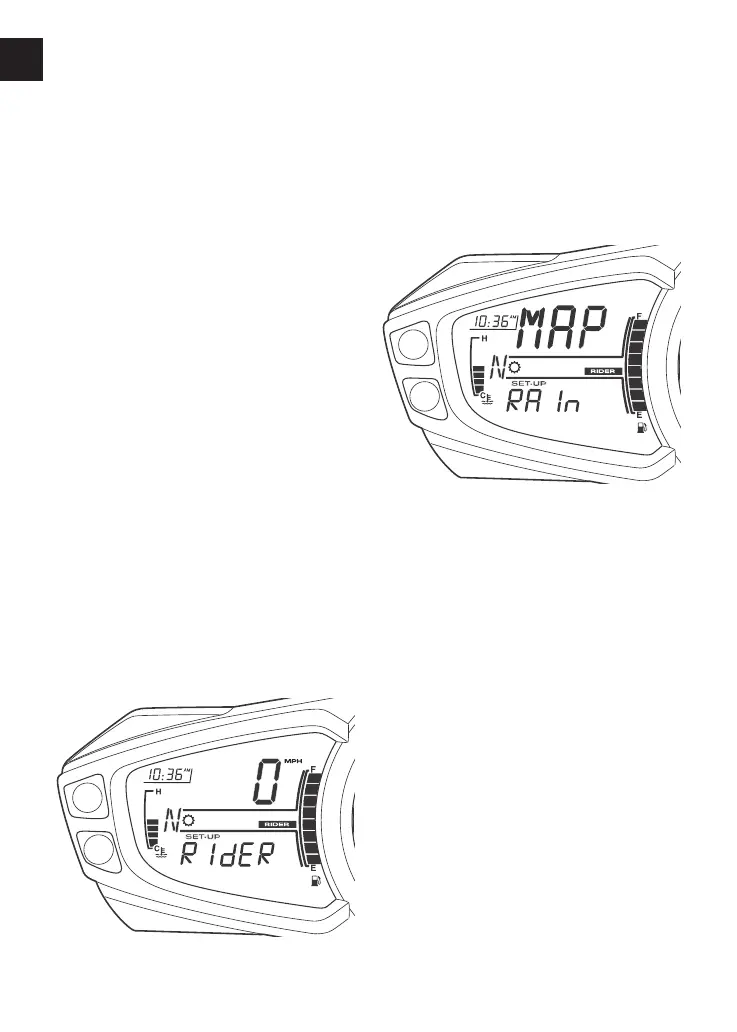

RIdER Shown
MAP Options
▼ Press the SCROLL button and choose
one of the available MAP options:
– Rain
– Road
– Sport.
Rain Option Shown
▼ Press the SET button to confirm the
selection.
▼ ABS is now shown in the display
screen.

Triumph Street Triple RS 2022 Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Displacement	765 cc
Transmission	6-speed
Front Tyre	120/70 ZR17
Rear Tyre	180/55 ZR17
Power	128 hp (95.6 kW) @ 12, 000 rpm
Torque	80 Nm @ 9, 500 rpm
Fuel Capacity	17.4 litres (4.6 US gal)
Dry Weight	166 kg
Wet Weight	189 kg
Front Suspension	Showa 41 mm upside down
Rear Suspension	Ohlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping and preload adjustment
Front Brakes	Twin 310 mm floating discs, Brembo 4-piston radial monobloc calipers
Rear Brakes	Single 220 mm disc, Brembo single piston caliper
Frame	Aluminium beam twin spar
