100
Maintenance and Adjustment
Licence Plate Light
Bulb Replacement
Remove the seat.
Disconnect the battery, negative (black) lead
first.
Remove the licence plate.
Remove the two lower rear mudguard
fixings. Gently pull the mudguard rearwards
to allow access to the licence plate light
retaining nut.
Counter-hold the nut to prevent it from
turning and remove the licence plate light
fixing screw. Collect the nut from the
mudguard.

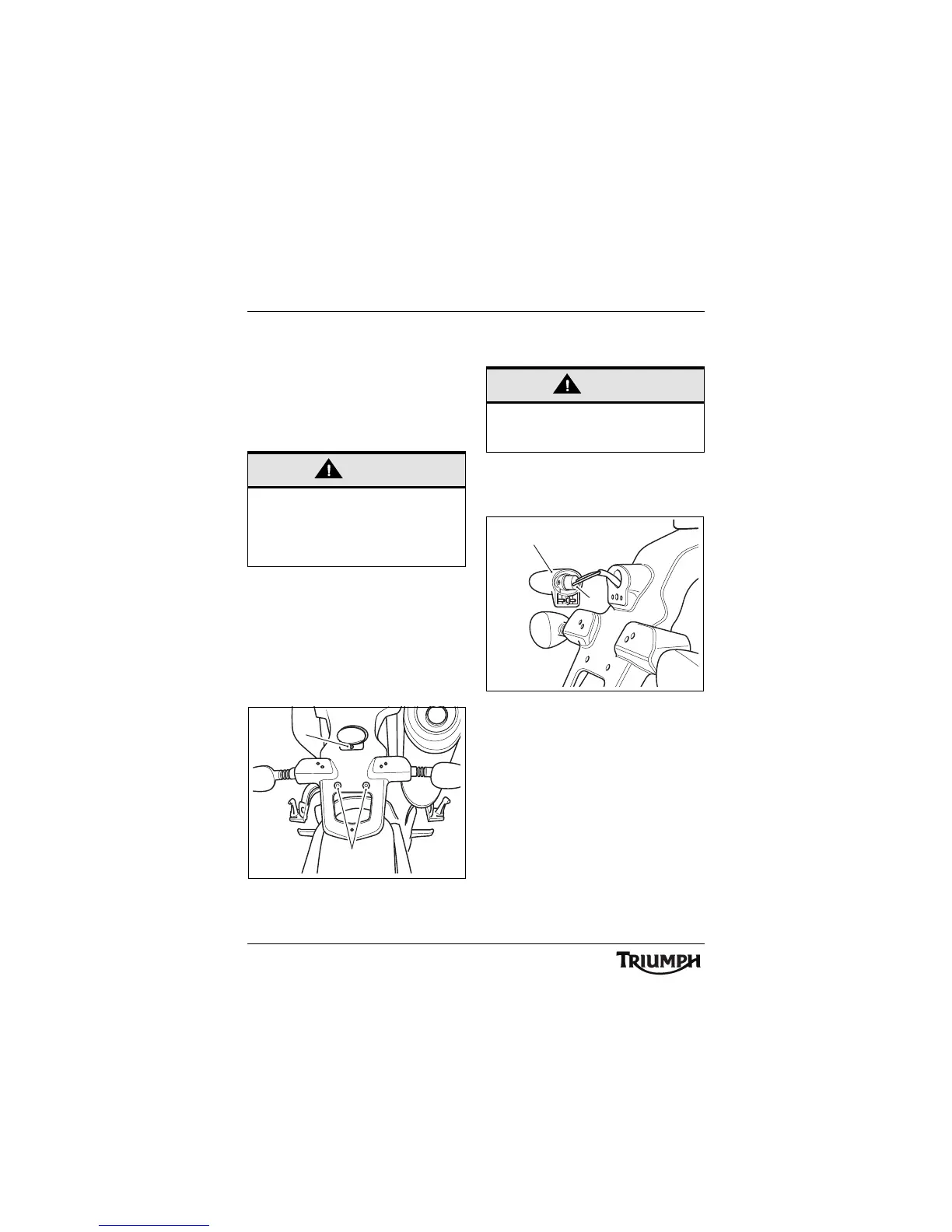

1. Lower rear mudguard fixings
2. Licence plate light fixing screw
Detach the licence plate light from the rear
mudguard.
Carefully remove the bulb holder from the
back of the licence plate light unit and
remove the bulb.
1. Licence plate light
2. Bulb holder
Installation is the reverse of the removal
procedure, noting the following:
Tighten the licence plate lamp fixing to
3Nm.
Tighten the lower rear mudguard fixings to
6Nm.
Reconnect the battery, positive (red) lead first.
Caution
Do not pull the rear mudguard more than
is necessary to access the licence plate
light's inside fixing nut. Damage to the rear
mudguard will result from bending the
mudguard too far.
2
1
cedm
Caution
To avoid cable damage, do not pull the
bulb holder using the cables. Pull only on
the bulb holder.
2
1
cedn
