Triumph Tiger User Manual

19
General Information

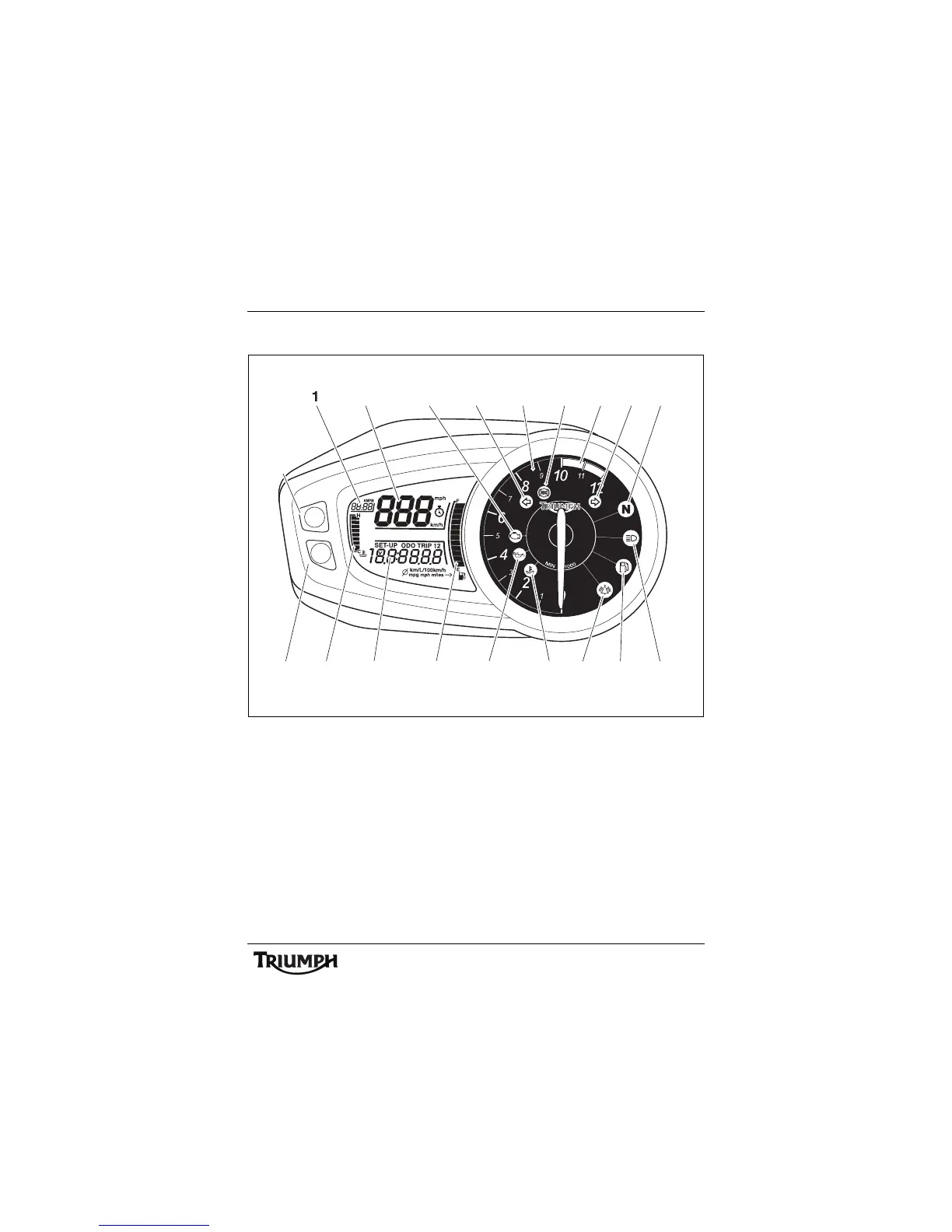

Instrument Panel Layout
1. C l o c k
2. Speedometer
3. Engine management malfunction
indicator light
4. Left hand direction indicator light
5. Tachometer
6. ABS warning light (ABS models only)
7. Tachometer 'red zone'
8. Right hand direction indicator light
9. Neutral indicator light
10.High beam indicator light
11. Low fuel level indicator light
12.Alarm/immobiliser status indicator
light (alarm is an accessory fit)
13.High coolant temperature warning
light
14.Low oil pressure warning light
15.Fuel gauge
16 . D i s p l a y s c r e e n
17. Coolant temperature display
18.Button B
19.Button A
17
19
18 16 15 14 13 12 11 10
2 3 4 5 6 7 8 9
cfkv

Triumph Tiger Specifications

General

Displacement	888 cc
Compression Ratio	11.27:1
Fuel System	Multipoint sequential electronic fuel injection
Exhaust	Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Gearbox	6-speed
Swingarm	Twin-sided, cast aluminium
Front Wheel	Cast aluminium, 19 x 2.5 in
Rear Wheel	Cast aluminium, 17 x 4.25 in
Front Tyre	100/90-19
Rear Tyre	150/70R17
Wet Weight	210 kg
Engine	Liquid-cooled, in-line 3-cylinder
Bore x Stroke	78.0 mm x 61.9 mm
Clutch	Wet, multi-plate
Frame	Tubular steel frame
Rear Brakes	Single 255 mm disc, ABS
Tank Capacity	20 L
Wheelbase	1, 555 mm
