Triumph Tiger - Parts Identification; Control Identification

14

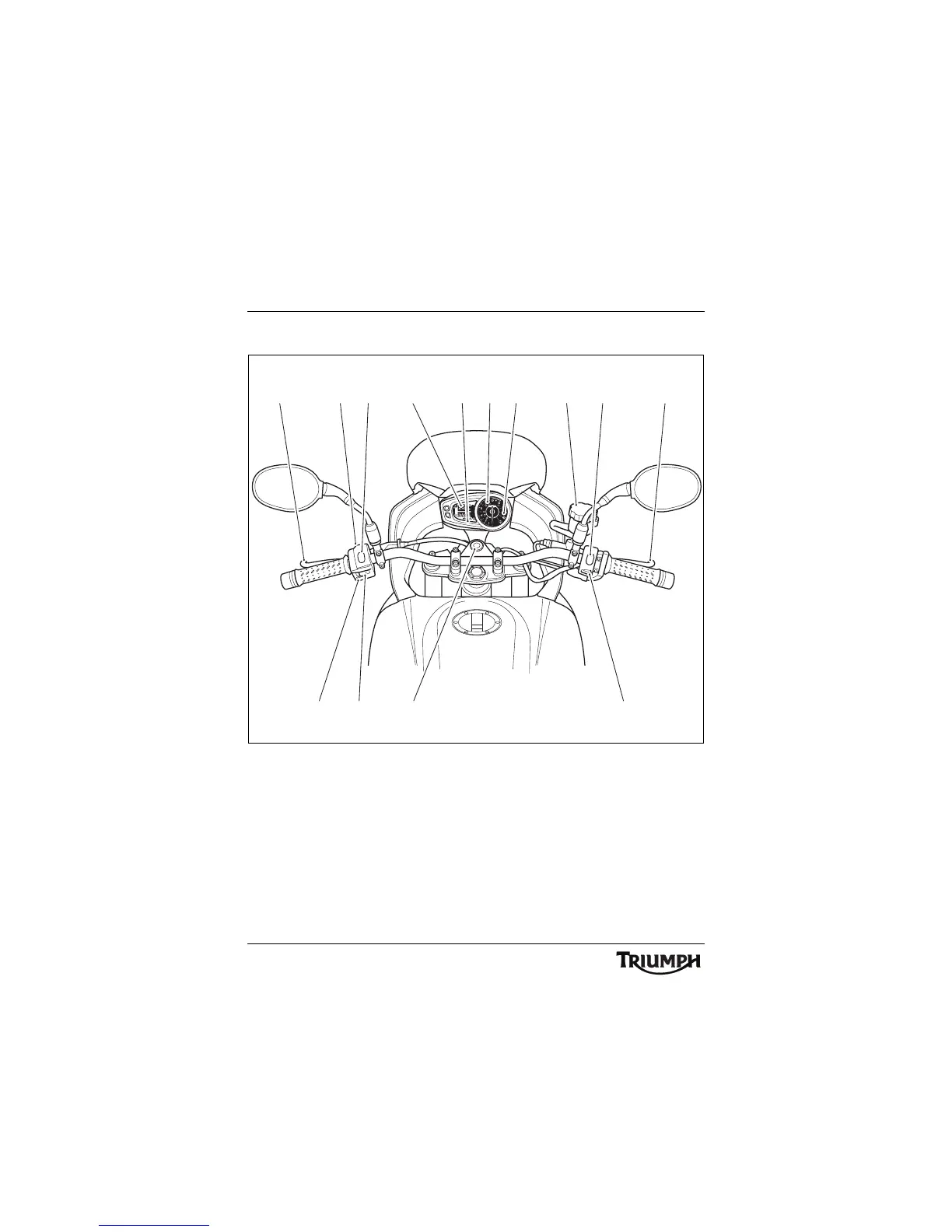

Parts Identification
Parts Identification (continued)
1. C l u t ch l e v e r
2. Passing button
3. Headlight dip switch
4. Speedometer
5. Trip computer display
6. Tachometer
7. Warning lights
8. Front brake fluid reservoir
9. Engine stop switch
10.Front brake lever
11. S t a rt e r b u t t o n
12.Ignition switch
13.Direction indicator switch
14.Horn button
21
14 1213 11
3 6 79104 5 8
