Triumph XRX - Compression Damping Adjustment - Tiger XC; Rebound Damping Adjustment - Tiger XC; Only

Maintenance and Adjustment
131
Compression Damping Adjustment –
Tiger XC
X only
The compression damping adjuster is
located at the top of the left hand fork.
To change the compression damping
force rotate the (white) adjuster
clockwise to increase, or anticlockwise to
decrease. Always count the number of
clicks back from the fully clockwise
(maximum) position.

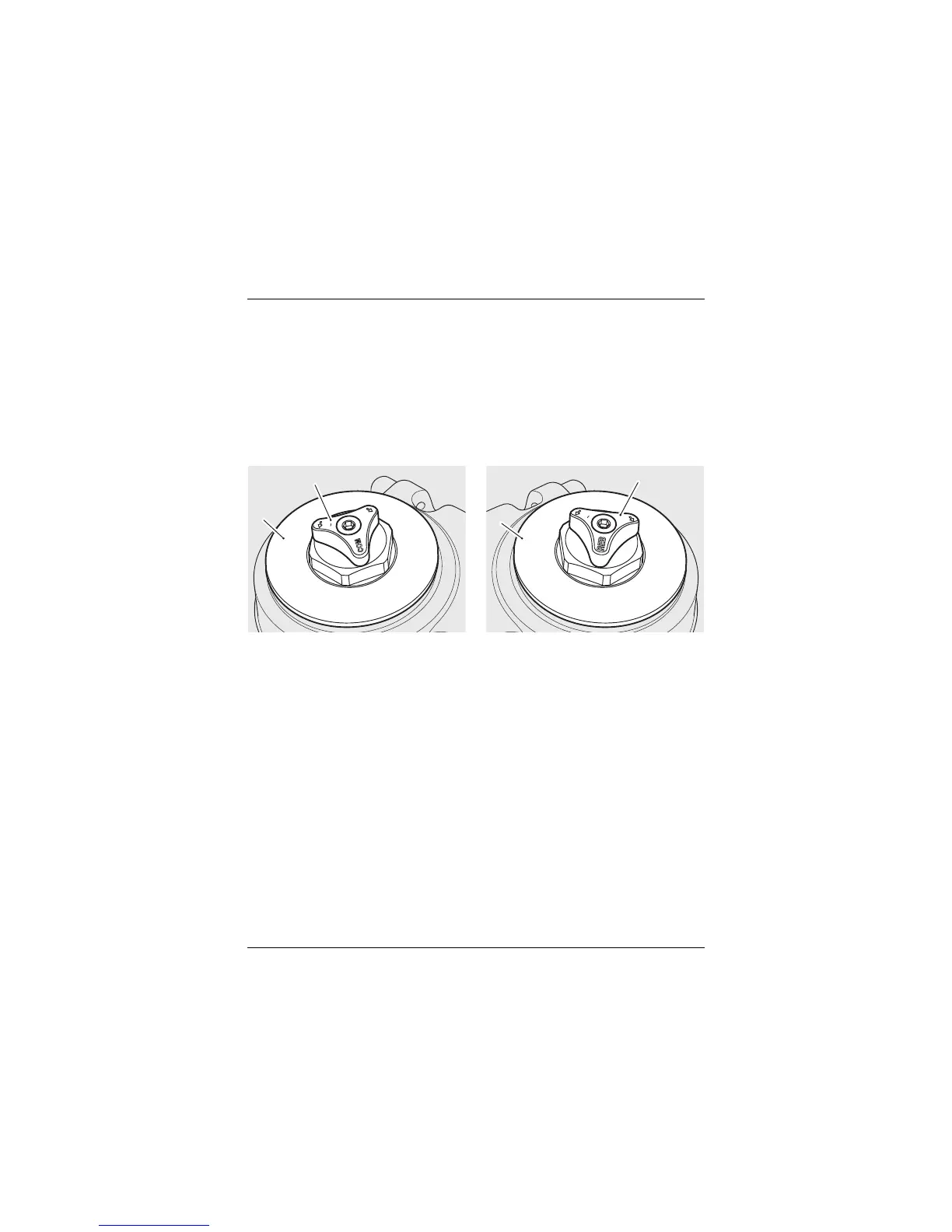

1. Compression damping adjuster
(white) (see notes)
2. Fork top cap
Note:
• The motorcycle is delivered from the
factory with the front suspension
set at the Solo (normal) riding
setting, as shown in the relevant
suspension chart (see page 132).
Rebound Damping Adjustment –
Tiger XC
X only
The rebound damping adjuster is located
at the top of the right hand fork.
To change the rebound damping force,
rotate the (red) adjuster clockwise to
increase, or anticlockwise to decrease.
Always count the number of clicks back
from the fully clockwise (maximum)
position.
1. Rebound damping adjuster
(red) (see notes)
2. Fork top cap
Note:
• The motorcycle is delivered from the
factory with the front suspension
set at the Solo (normal) riding
setting, as shown in the relevant
suspension chart (see page 132).
