Parts Identification
18

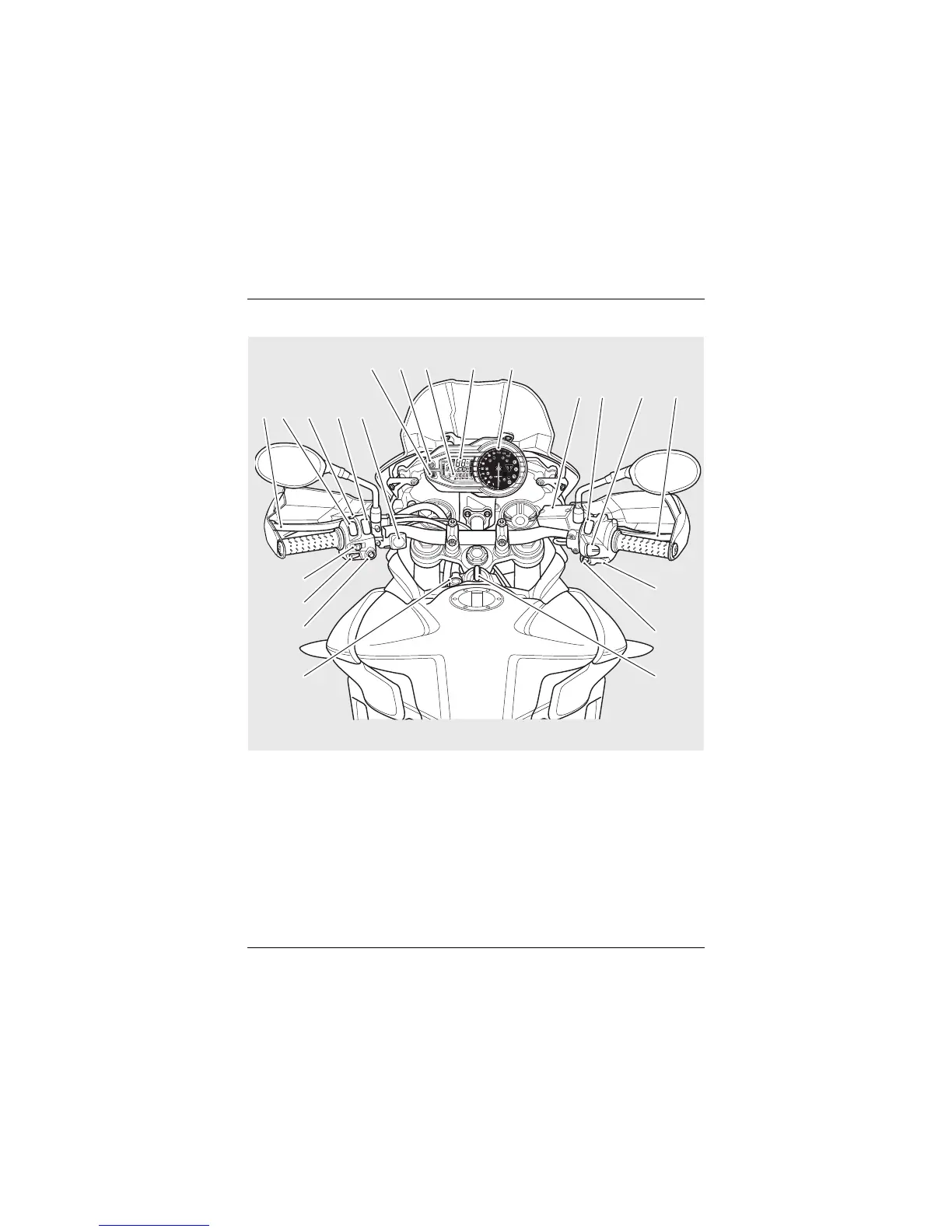

All Models (Tiger XCX shown)
1. Clutch lever
2. Headlight dip switch
3. Passing button
4. Instrument SCROLL button
5. Heated grip switch (if fitted)
6. Hazard warning light button
7. MODE button
8. Trip computer display
9. Speedometer
10. Tachometer
11. Front brake fluid reservoir
12. Engine stop switch
13. Cruise control adjust button
14. Front brake lever
15. Starter button
16. Cruise control ON/OFF button
17. Ignition switch
18. Electrical accessory socket
19. Instrument SET button
20. Horn button
21. Direction indicator switch
