ASSEMBLY STEPS

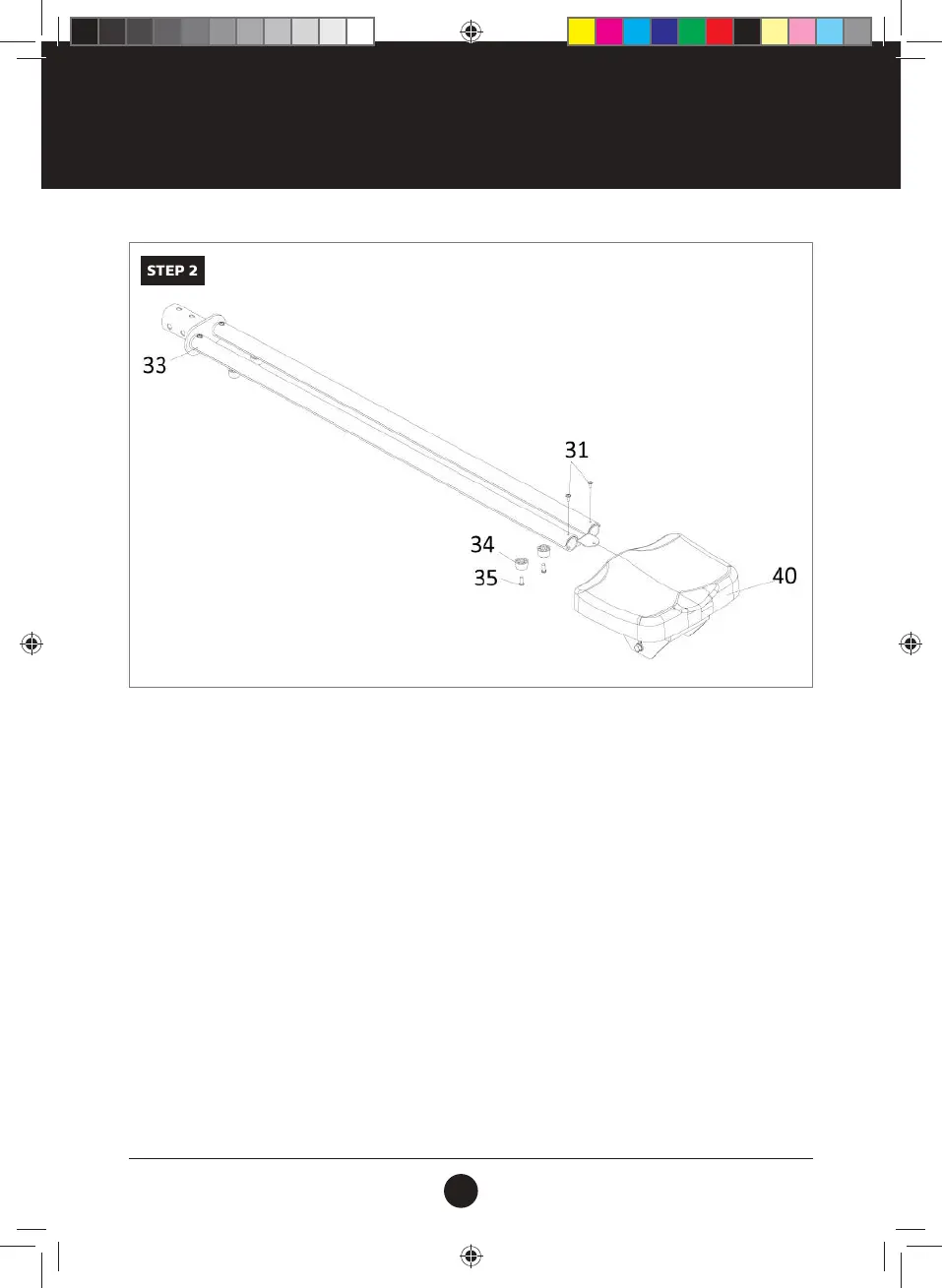

STEP 2: SADDLE AND STEEL RAIL ASSEMBLY
Remove 2 Bolts (31) from the Steel Rail (33) using Wrench (B). Insert the Saddle (40) into the Steel Rail (33).
Fix the 2 Bolts (31) back into the Steel Rail (33). Fasten 2 Limited Blocks (34) to the Steel Rail (33) with
2 Bolts (35).
STEP 2
