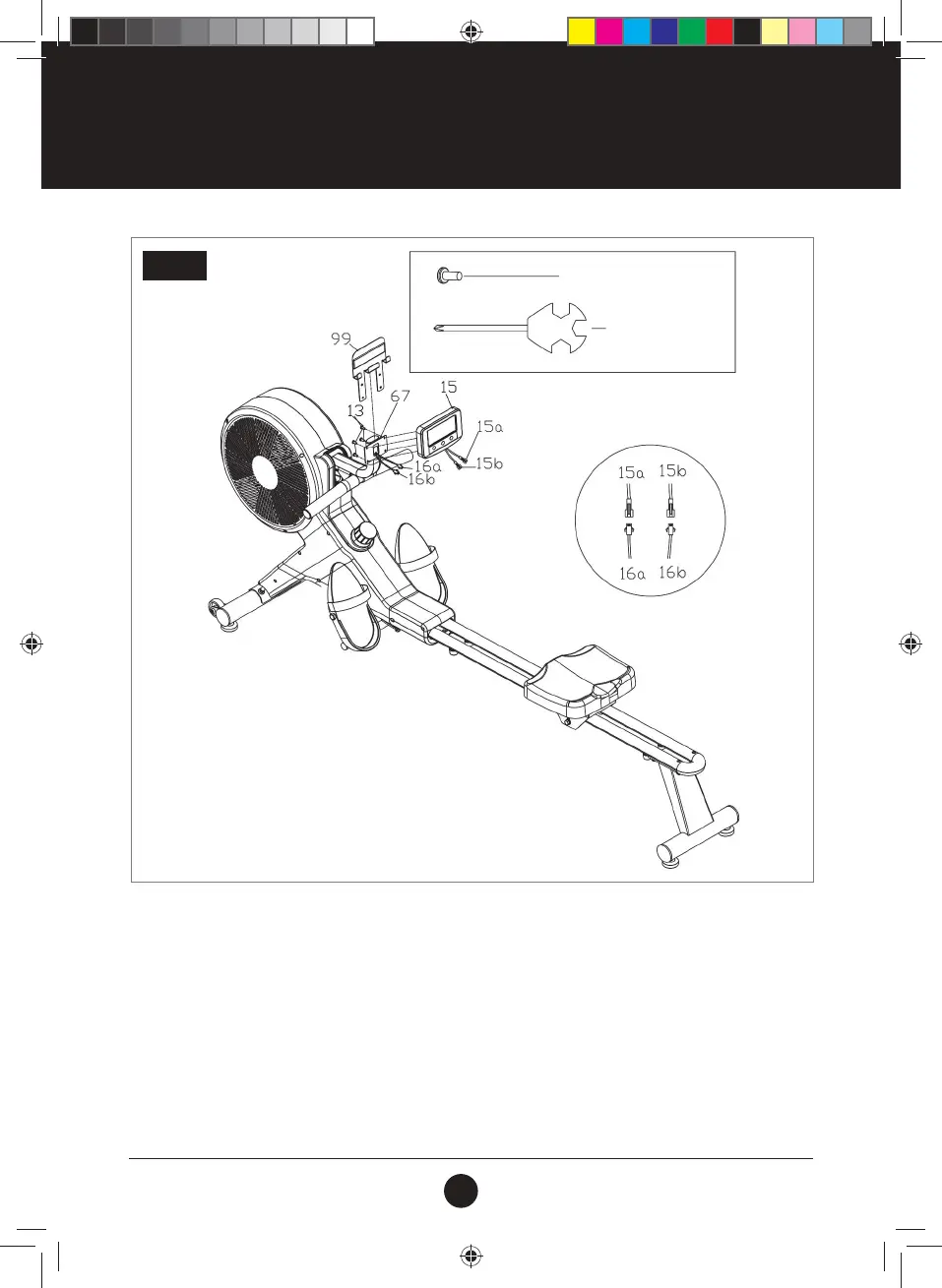

STEP 6: CONSOLE ASSEMBLY
Remove 4 Bolts (13) from the Console (15) with using Wrench (B).
Draw the Connection Wire (16a, 16b) through Display Post (67) rst, then connect them with Display Wires (15a, 15b),
at last insert these wires into the Display Post (67). Put the Console (15) on the iPad Holder (99).
Fix the Console (15) and iPad Holder (99) to the Console Post (67) with 4 Bolts (13) using Wrench (B).
STEP 6
ASSEMBLY STEPS
13. (M5 x 10) (4 PC)
B. (S13-14-15) (1 PC)
