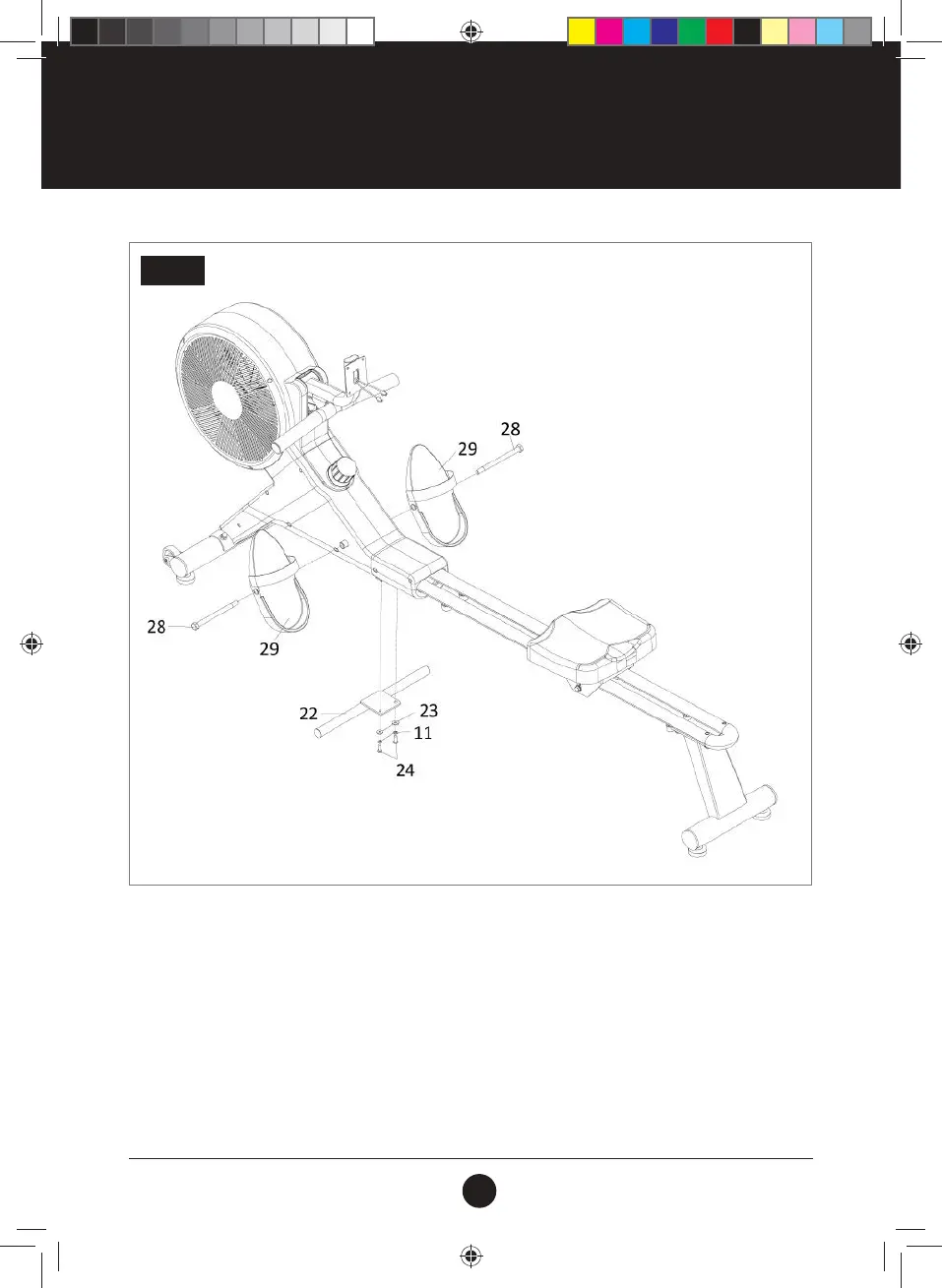

STEP 5: PEDAL ASSEMBLY
Remove 2 Spring Washers (11), 2 Bolts (24) and 2 Washers (23) from Main Frame (27).
Fasten the Pedal Bolt (22) to Main Frame (27) with the 2 Spring Washers (11), 2 Bolts (24) and 2 Washers (23).
Fix the Pedal (29) to the Main Frame (27) with 2 Bolts (28) using Wrench (C).
Note: The Pedal (29) must be put on the top of Pedal Bolt (22).
STEP 5
ASSEMBLY STEPS
