ASSEMBLY STEPS
STEP 4: STEEL RAIL ASSEMBLY

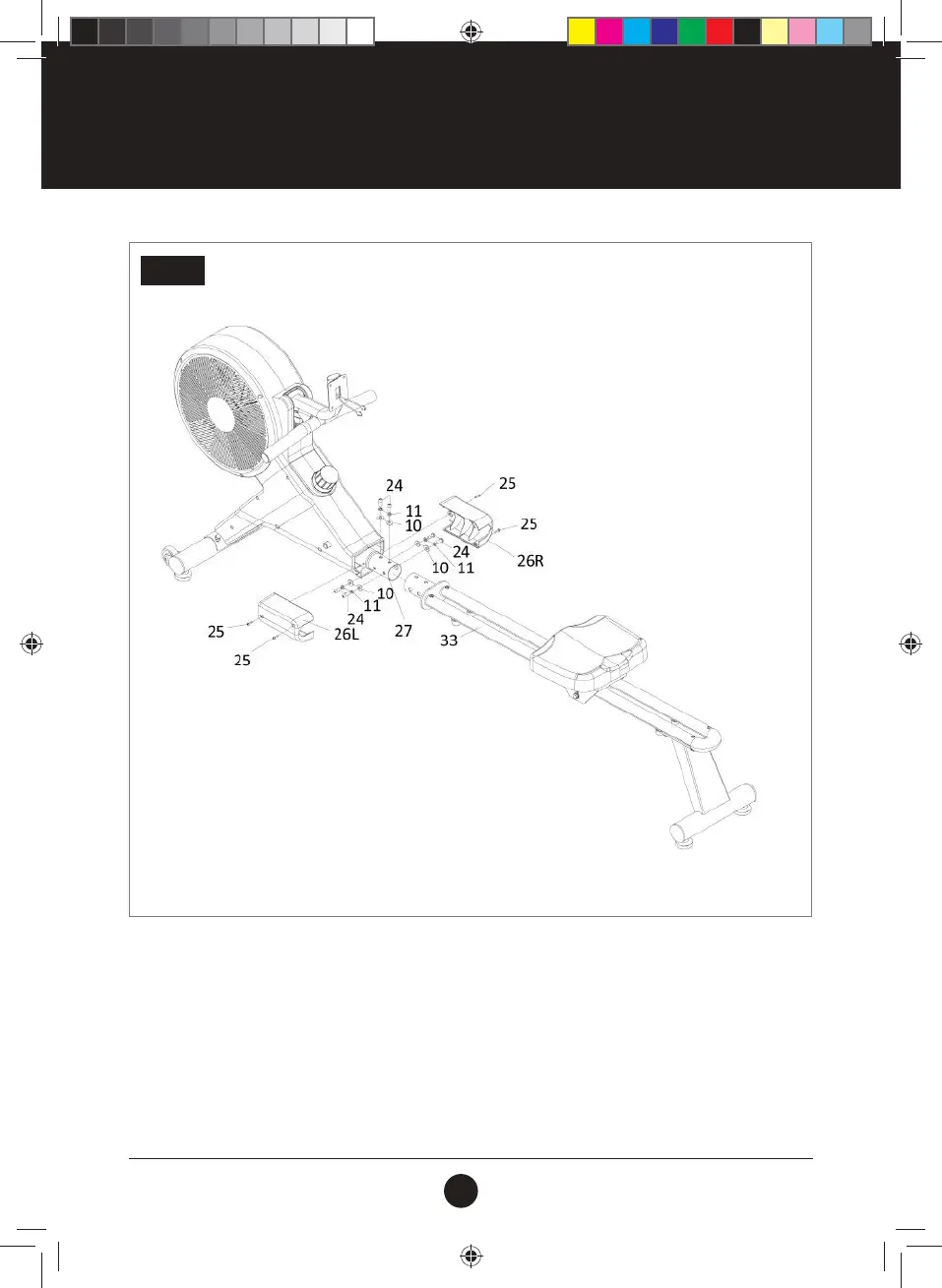

Remove 4 Screws (25) from Main Frame (27) and Cover (26L, 26R).
Remove 6 Arc Washers (10), 6 Spring Washers (11) and 6 Bolts (24) from Main Frame (27).
Insert the assembled Steel Rail (33) into Main Frame (27), x it with 6 Arc Washers (10), 6 Spring Washers (11)
and 6 Bolts (24).
Then fasten the Cover (26L, 26R) to the Main Frame (27) with 4 Screws (25).
