Trojan FOCUS 360 - STEP 3: TOP BEAM ATTACHMENT; STEP 4: PRESS ARM INSTALLATION

10133-10
4. ASSEMBLY STEPS

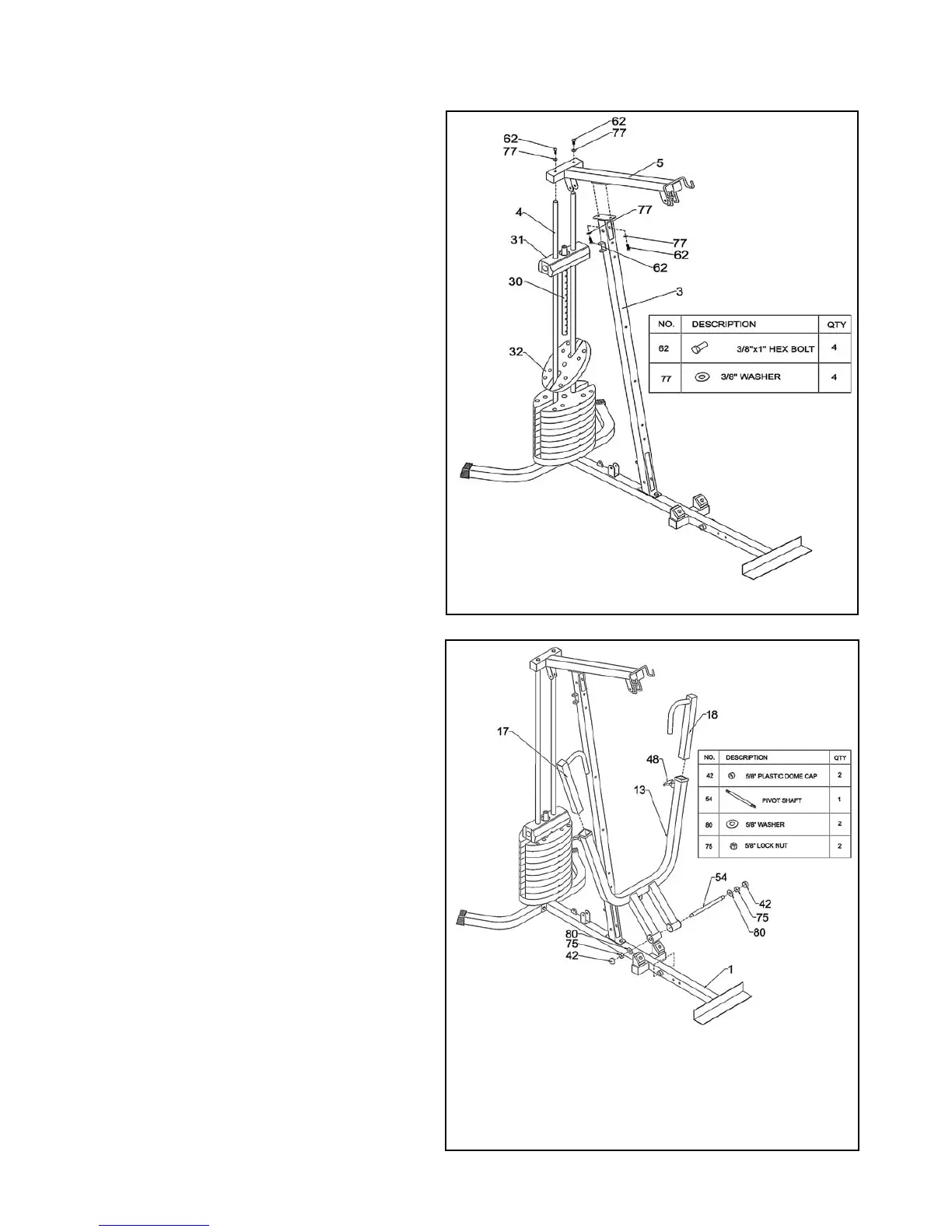

STEP 3
• Slide9WeightPlates(32)downGuide
Rods (4) as shown.
• AttachtheTo p Beam(5)tothetopofthe
 GuideRod(4)usingtwo3/8”x1”HexBolts
(62) and two 3/8” Washers (77).
• AttachtheTo p Beam(5)tothetopofthe
 VerticalPost(3)usingtwo3/8”x1”Hex
Bolts (62) and two 3/8” Washers (77).
STEP 4
• Firstcutoffanddiscardtheplastictiethatsecures
the 3/4”Oil Bushing (83) before proceeding with
assembly.
• InsertPivotShaft(54)intotheholeofthe
Main Base (1) and Bench Press Arm (13)
and secure with two 5/8” Washers (80), two
 5/8”Locknuts(75)andtwo5/8”Plastic
Dome Caps (42).
• InserttheLeft&RightPressArms(17,18)to
the Bench Press Arm (13) using two PT-1Pop
Pins (48).
