Trojan FOCUS 360 - ASSEMBLY STEPS; STEP 1: REAR BASE & MAIN BASE ASSEMBLY; STEP 2: GUIDE RODS & WEIGHT STACK SETUP

10133-9
4. ASSEMBLY STEPS

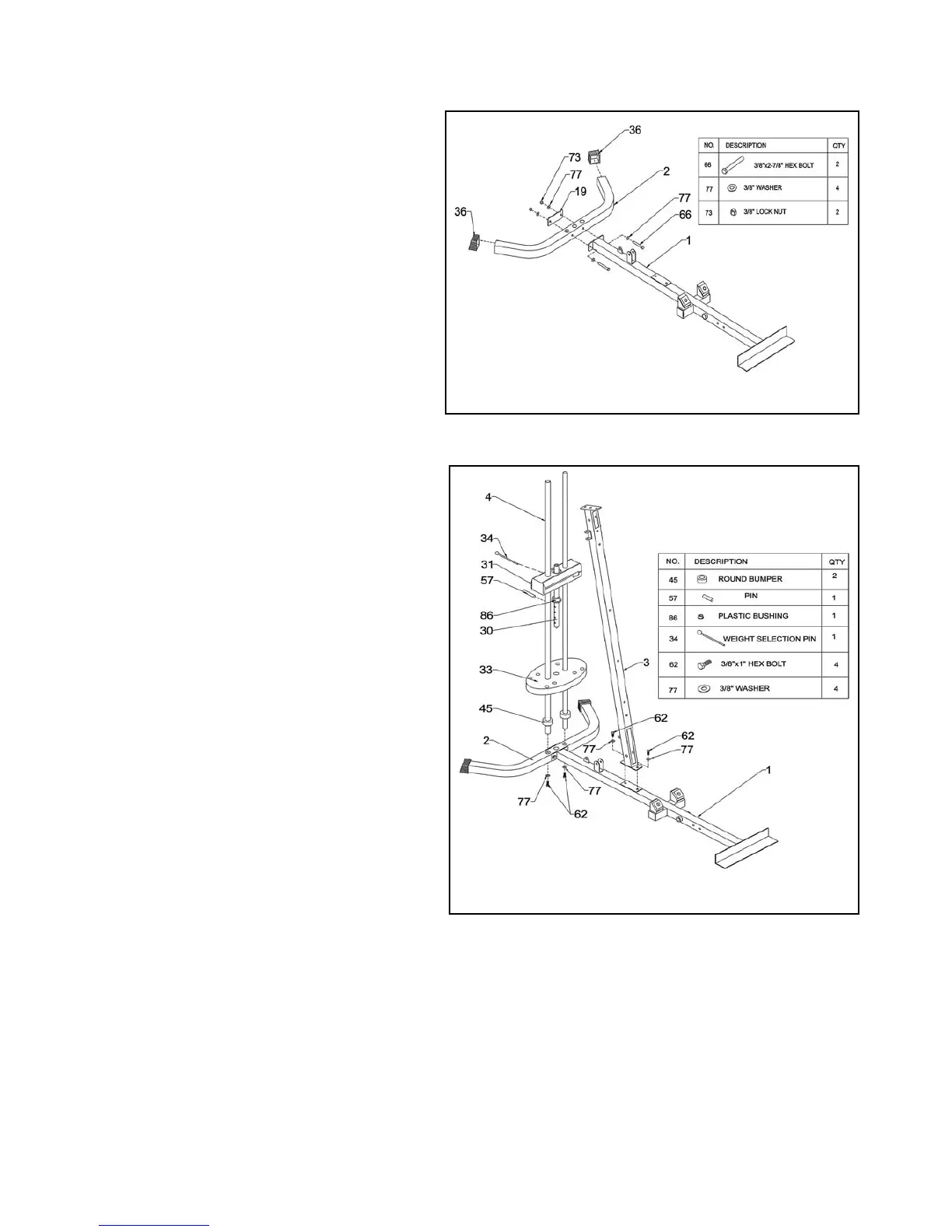

STEP 1
• Attachtwo50x50mmSquareEndCaps
(36) onto the Rear Base (2).
• AttachMainBase(1)andConnectPiece
 (19)toRearBase(2)usingtwo3/8”x2-7/8”
 HexBolts(66),four3/8”Washers(77)and
 two3/8”Locknuts(73).
STEP 2
• SlidetwoRoundBumpers(45)downthe
Guide Rods (4).
• SecuretwoGuideRods(4)intotheRear
 Base(2)usingtwo3/8”x1”HexBolts(62)
and two 3/8” Washers (77).
• SlideWeightBasePlate(33)andWeight
Selection Rod (30) down the Guide Rods (4).
• SlideTo p Plate(31)downtheGuideRods(4).
• AttachPlasticBushing(86)tothetophole
of Weight Selection Rod (30) with Pin (57).
• SecuretheWeightSelectionPin(34)to
the Weight Selection Rod (30) as shown.
• AttachVerticalPost(3)toMainBase(1)
 usingtwo3/8”x1”HexBolts(62)andtwo
3/8” Washers (77).
