Trojan FOCUS 360 - STEP 7: UPPER CABLE AND PULLEY INSTALLATION; STEP 8: BUTTERFLY CABLE AND BRACKET ASSEMBLY

10133-12
4. ASSEMBLY STEPS

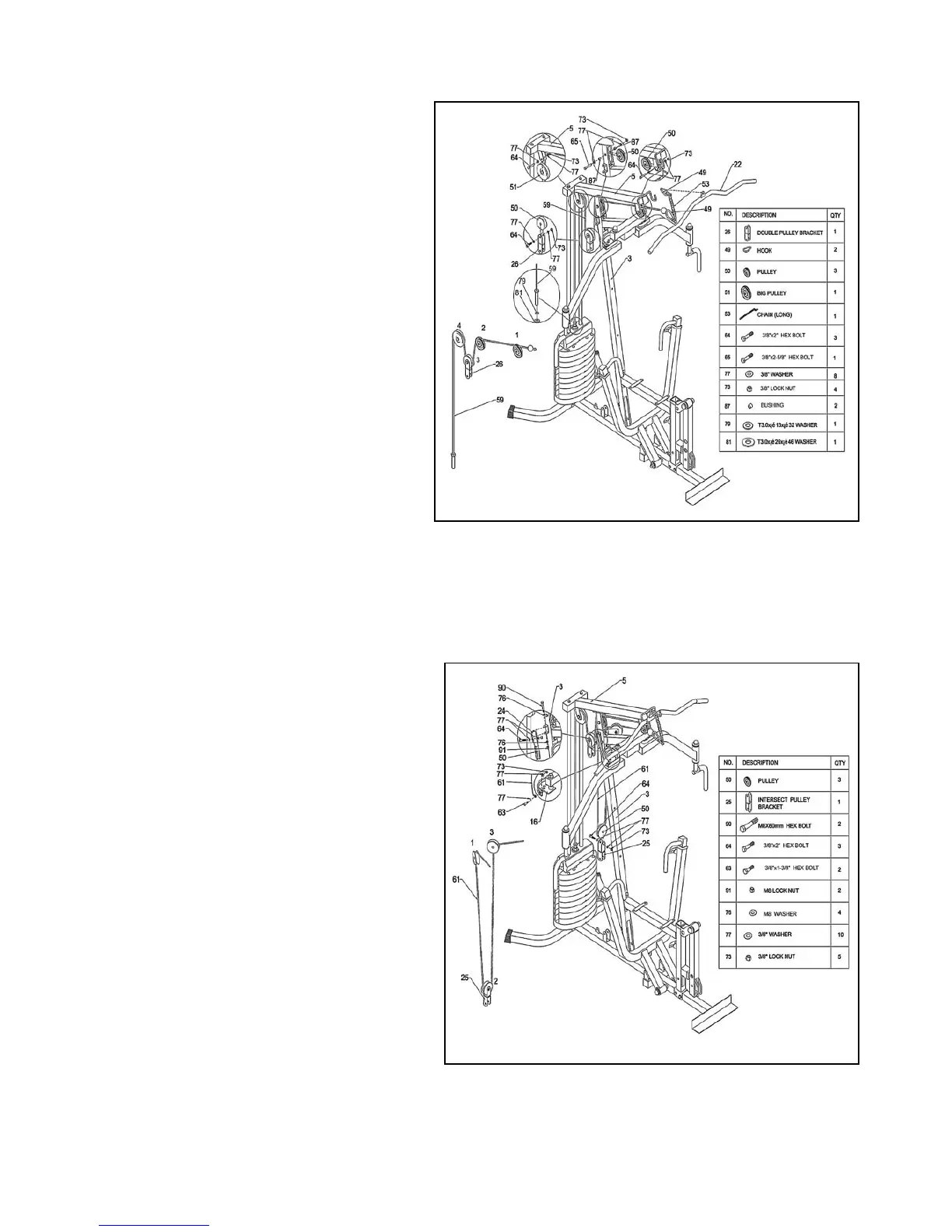

STEP 7
Rotate Upper Cable (59) as shown.
• InstallPulley1(50)tounitusingone3/8”x2”
 HexBolt(64),two3/8”Washers(77)and
 one3/8”Locknut(73).
• InstallPulley2(50)tounitusingone3/8”x2-
 5/8”HexBolt(65),two3/8”Washers(77),
 twoBushings(87)andone3/8”Locknut
(73).
• InstallBIGPulley4(51)tounitusingone
 3/8”x2”HexBolt(64),two3/8”Washers
 (77)andone3/8”Locknut(73).
• AttachNutEndofTo p CabletoWeight
Selection Rod (30) using Washer (79)
 (T3.0xØ13xØ32)andWasher(81)
 (T3.0xØ46xØ26).
• InstallPulley3(50)toDoublePulley
 Bracket(26)usingone3/8”x2”HexBolt
(64), two 3/8” Washers (77) and one 3/8”
 Locknut(73).
• AttachLatBar(22)totheballendofup 
 perCable(59)usingtwoHooks(49)and
one Chain (Long) (53).
STEP 8
RotateButteryCable(61)asshown.
• AttachSinglePulleyBracket(24)to
 VerticalPost(3)usingoneM8x60mm
 HexBolt(90),twoM8Washers(76)and
 oneM8Locknut(91).
• AttachbothEndsofButteryCable(61)
 toLeft&RightAdjustablePlate(15&16)using
 one3/8”x1-3/8”HexBolt(63),
 two3/8”Washers(77)andone3/8”
Locknut(73).
• InstallPulley1(50)toSinglePulley
 Bracket(24)usingone3/8”x2”HexBolt
(64), two 3/8” Washers (77) and one 3/8”
 Locknut(73).
• InstallPulley2(50)toIntersectPulley
 Bracket(25)usingone3/8”x2”HexBolt(64),
 two3/8”Washers(77)andone3/8”Locknut
(73).
• InstallPulley3(50)toSinglePulleyBracket
 (24)usingone3/8”x2”HexBolt(64),two3/8”
 Washers(77)andone3/8”Locknut(73).
