Trojan GLIDE CYCLE 220 User Manual

7
10317

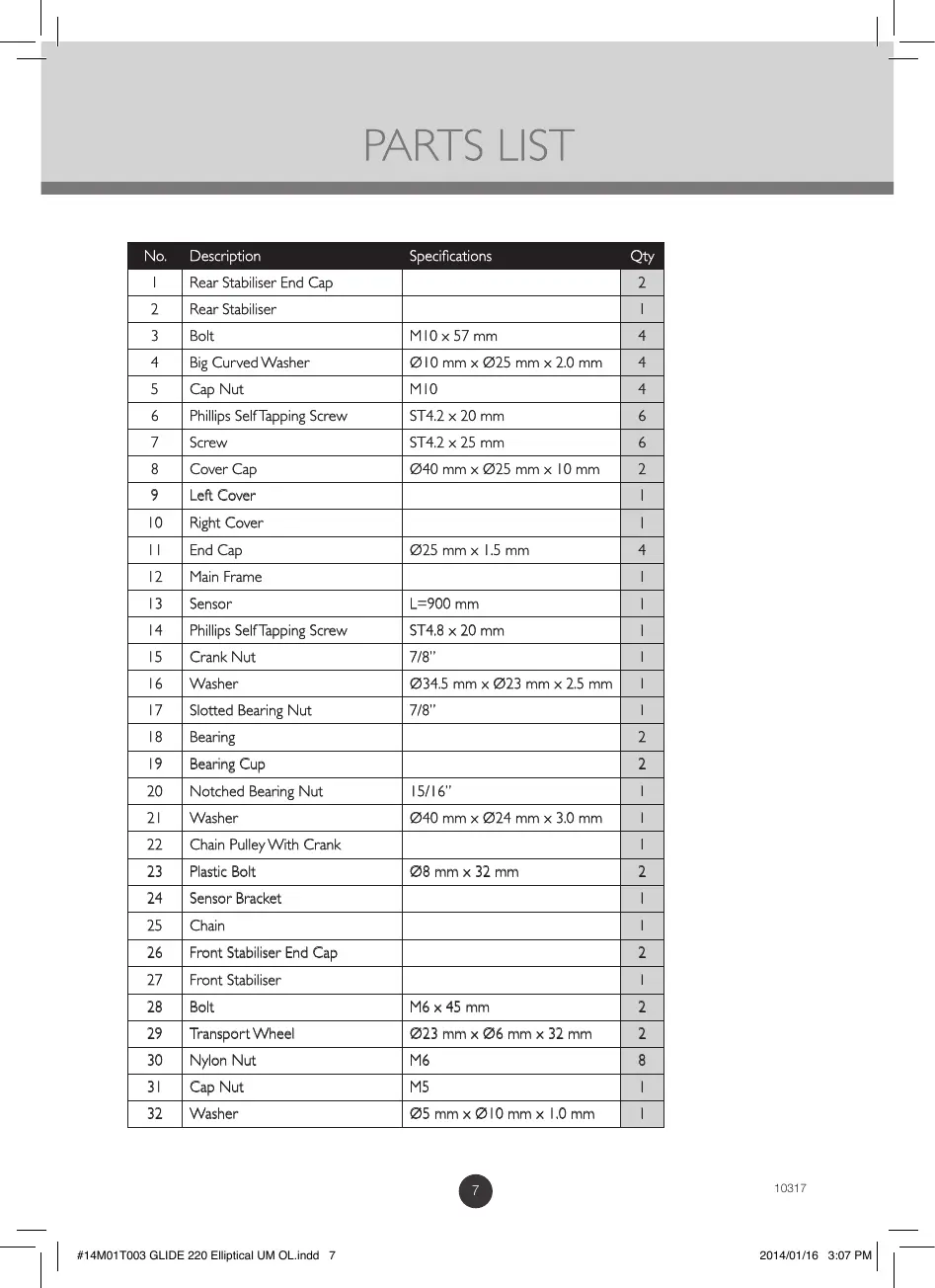

No. Description Specications Qty
1 Rear Stabiliser End Cap 2
2 Rear Stabiliser 1
3 Bolt M10 x 57 mm 4
4 Big Curved Washer Ø10 mm x Ø25 mm x 2.0 mm 4
5 Cap Nut M10 4
6 Phillips Self Tapping Screw ST4.2 x 20 mm 6
7 Screw ST4.2 x 25 mm 6
8 Cover Cap Ø40 mm x Ø25 mm x 10 mm 2
9 Left Cover 1
10 Right Cover 1
11 End Cap Ø25 mm x 1.5 mm 4
12 Main Frame 1
13 Sensor L=900 mm 1
14 Phillips Self Tapping Screw ST4.8 x 20 mm 1
15 Crank Nut 7/8” 1
16 Washer Ø34.5 mm x Ø23 mm x 2.5 mm 1
17 Slotted Bearing Nut 7/8” 1
18 Bearing 2
19 Bearing Cup 2
20 Notched Bearing Nut 15/16” 1
21 Washer Ø40 mm x Ø24 mm x 3.0 mm 1
22 Chain Pulley With Crank 1
23 Plastic Bolt Ø8 mm x 32 mm 2
24 Sensor Bracket 1
25 Chain 1
26 Front Stabiliser End Cap 2
27 Front Stabiliser 1
28 Bolt M6 x 45 mm 2
29 Transport Wheel Ø23 mm x Ø6 mm x 32 mm 2
30 Nylon Nut M6 8
31 Cap Nut M5 1
32 Washer Ø5 mm x Ø10 mm x 1.0 mm 1
#14M01T003 GLIDE 220 Elliptical UM OL.indd 7 2014/01/16 3:07 PM
